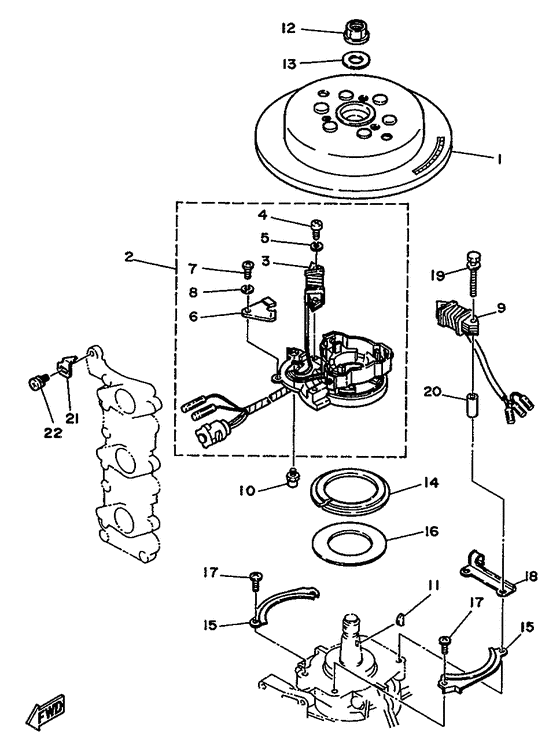

Generator Diagram Yamaha 30 MHS/L
- Year
- 1996
- Model
- 30D
- Model code
- 6J8
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-85550-A0-00
Rotor Assembly
Ur 25jeo/30deo |
6J8-85550-A0-00 |
— | ||
|
01
|
01
6J8-85550-F0-00
Rotor Assembly
Ur 25jmo30dmo/30dro |
6J8-85550-F0-00 |
— | ||
|
02
|
02
6J8-85510-A0-00
Stator Assembly
Ur 25jeo/30deo |
6J8-85510-A0-00 |
— | ||
| replacement | |||||
|
02
|
02
6J8-85510-A9-00
Stator Assy
Ur 25jeo/30deo |
6J8-85510-A9-00 |
— | ||
|
02
|
02
6H4-85510-F0-00
Stator Assembly
Ur 25jmo30dmo/30dro |
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
02
|
02
6H4-85510-F9-00
Stator Assy
Ur 25jmo30dmo/30dro |
6H4-85510-F9-00 |
— | ||
|
03
|
03
6H4-85520-00-00
Coil, Charge
Ur 25jmo30dmo/30dro |
6H4-85520-00-00 |
— | ||
|
03
|
03
6J8-85520-00-00
Coil, Charge
Ur 25jeo/30deo |
6J8-85520-00-00 |
— | ||
|
06
|
06
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
09
|
09
6H4-85533-A0-00
Coil, Lighting
|
6H4-85533-A0-00 |
— | ||
|
10
|
10
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
14
|
14
6H4-41611-10-00 Retainer, Magneto Base |
6H4-41611-10-00 |
from US $15.39 |
||
|
15
|
15
6J8-41615-00-00 Stopper, Magneto Base |
6J8-41615-00-00 |
from US $16.61 |
||
|
16
|
16
6J8-41618-00-00 Washer, Magneto |
6J8-41618-00-00 |
from US $5.38 |
||
|
18
|
18
6J8-85548-00-00 Holder |
6J8-85548-00-00 |
from US $10.53 |
||
