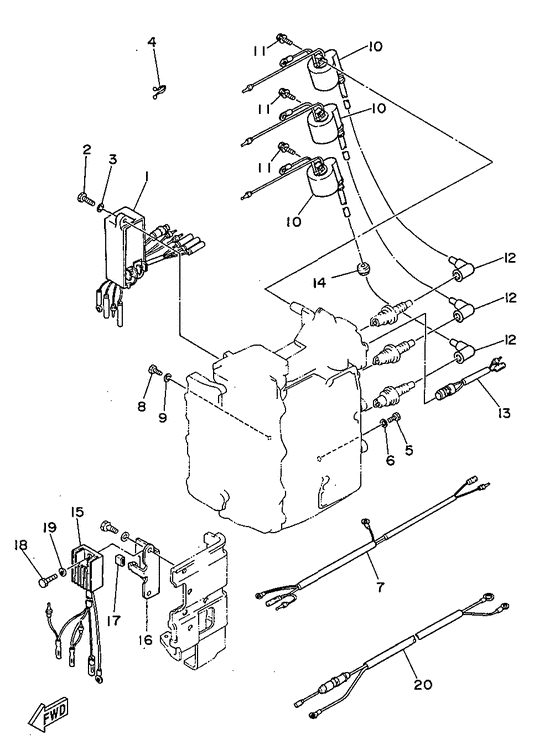

Electrical 1 Diagram Yamaha 30 MHS/L
- Year
- 1998
- Model
- 30D
- Model code
- 6J8
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-85540-H1-00
C.d.i. Unit Assembly
|
6J8-85540-H1-00 |
— | ||
|
02
|
02
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
02
|
02
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
04
|
04
90464-16039-00 Clamp (3Y2)Ur 25jmho/30dmho/30dmo |
90464-16039-00 |
from US $1.81 |
||
|
05
|
05
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
05
|
05
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
07
|
07
6J8-82531-00-00 Wire, LeadUr 25jmho/30dmho/30dmo |
6J8-82531-00-00 |
from US $24.94 |
||
|
08
|
08
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
08
|
08
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
09
|
09
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6H4-85570-20-00 Ignition Coil Assembly |
6H4-85570-20-00 |
US $147.83 |
||
| replacement | |||||
|
10
|
10
6H4-85570-21-00 Ignition Coil Assy |
6H4-85570-21-00 |
from US $147.83 |
||
|
11
|
11
97595-06420-00 Bolt, With Washer |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
11
|
11
97E95-06420-00 |
97E95-06420-00 |
from US $0.88 |
||
|
12
|
12
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
12
|
12
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
13
|
13
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
14
|
14
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
15
|
15
6J8-81960-00-00 Rectifier & Regulator AssyUr 25jmho/30dmho/30dmo |
6J8-81960-00-00 |
from US $109.15 |
||
|
16
|
16
6J8-81975-00-00 Plate, Rectifier FittingUr 25jmho/30dmho/30dmo |
6J8-81975-00-00 |
from US $12.89 |
||
|
17
|
17
689-44194-00-00 CapUr 25jmho/30dmho/30dmo |
689-44194-00-00 |
from US $7.08 |
||
|
18
|
18
97095-06012-00 BoltUr 25jmho/30dmho/30dmo |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
18
|
18
970-80060-12-00 BoltUr 25jmho/30dmho/30dmo |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)Ur 25jmho/30dmho/30dmo |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
6J8-82105-10-00 Battery CableAp |
6J8-82105-10-00 |
from US $101.96 |
||
