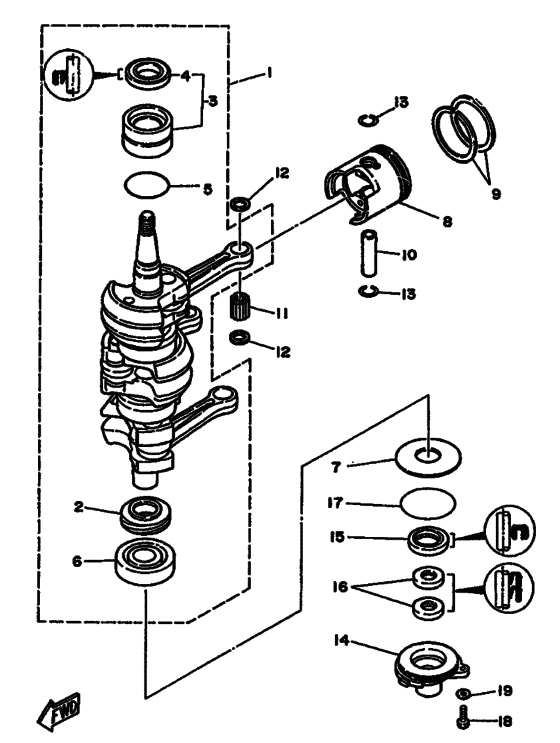

Crankshaft & Piston Diagram Yamaha 30 EOS/L
- Year
- 1993
- Model
- 30D
- Model code
- 6J8
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-11400-01-10
Crankshaft Assy
|
6J8-11400-01-10 |
— | ||
|
2
|
2
6J8-11536-00-00 Gear, Drive |
6J8-11536-00-00 |
from US $135.40 |
||
|
3
|
3
93311-632U7-00 Bearing |
93311-632U7-00 |
from US $96.85 |
||
|
4
|
4
93102-26M27-00 Oil Seal |
93102-26M27-00 |
from US $10.63 |
||
|
5
|
5
93210-42159-00 O-Ring |
93210-42159-00 |
from US $5.41 |
||
|
6
|
6
93306-305U3-00 Bearing |
93306-305U3-00 |
from US $39.93 |
||
|
7
|
7
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
8
|
8
6J8-11631-02-97 Piston (Std) |
6J8-11631-02-97 |
US $111.91 |
||
| replacement | |||||
|
8
|
8
6J8-11631-02-46 Piston (Std) |
6J8-11631-02-46 |
from US $111.17 |
||
|
8
|
8
6J8-11635-02-00 Piston (0.25Mm O/s)0.25MM O/S; AP |
6J8-11635-02-00 |
from US $111.91 |
||
|
8
|
8
6J8-11636-02-00 Piston (0.50Mm O.s.)0.50MM O/S; AP |
6J8-11636-02-00 |
from US $111.91 |
||
|
9
|
9
6J8-11601-21-00 Piston Ring Set (0.50Mm O.s.)0.50mm o/s |
6J8-11601-21-00 |
from US $60.44 |
||
|
9
|
9
6J8-11601-11-00 Piston Ring Set (0.25Mm O/s)AP |
6J8-11601-11-00 |
from US $60.44 |
||
|
10
|
10
6J8-11633-00-00 Pin, PistonAP |
6J8-11633-00-00 |
from US $10.34 |
||
|
11
|
11
93602-16M10-00 Pin, Dowel |
93602-16M10-00 |
from US $1.98 |
||
|
12
|
12
90201-16379-00 Washer, Plate |
90201-16379-00 |
from US $3.97 |
||
|
13
|
13
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.39 |
||
|
14
|
14
6J8-15396-00-58
Housing, Oil Seal
|
6J8-15396-00-58 |
— | ||
|
15
|
15
931-0125M-28-00 Oil Seal |
931-0125M-28-00 |
from US $13.31 |
||
|
16
|
16
93104-16M36-00
Oil Seal
|
93104-16M36-00 |
— | ||
|
17
|
17
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.89 |
||
|
18
|
18
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
