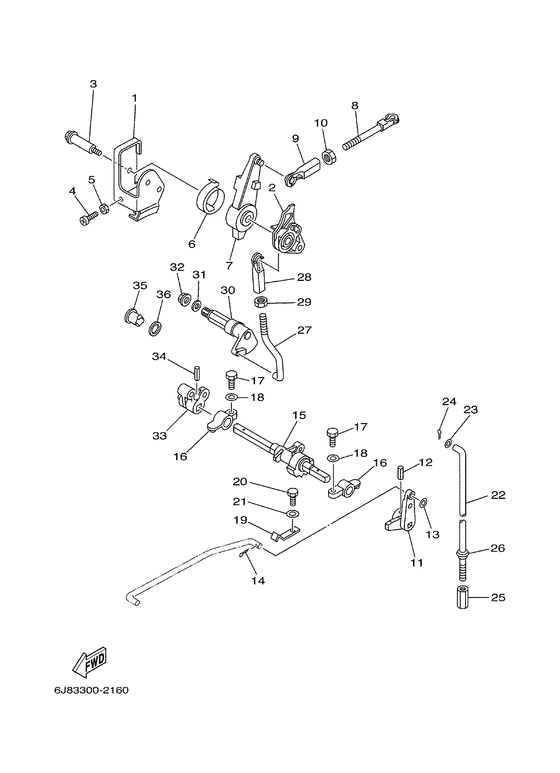

Control 1 Diagram Yamaha 30 EOS/L
- Year
- 2005
- Model
- 30D
- Model code
- 6J8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-14497-00-00 Stay, Throttle Wire |
6J8-14497-00-00 |
from US $15.58 |
||
|
02
|
02
6J8-41213-00-00 Cam, Accel |
6J8-41213-00-00 |
from US $18.23 |
||
|
03
|
03
90109-06M28-00 Bolt |
90109-06M28-00 |
from US $9.02 |
||
|
04
|
04
97880-06025-00 Screw, Pan Head |
97880-06025-00 |
US $1.07 |
||
| replacement | |||||
|
04
|
04
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
05
|
05
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
06
|
06
6J8-42167-00-00 Spring 1 |
6J8-42167-00-00 |
from US $18.42 |
||
|
07
|
07
6J8-41631-02-00 Lever, Magneto Control |
6J8-41631-02-00 |
from US $27.54 |
||
|
08
|
08
689-42169-01-00 Joint |
689-42169-01-00 |
from US $11.48 |
||
|
09
|
09
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $2.02 |
||
|
10
|
10
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
6J8-44123-00-00 Arm, Shift Rod |
6J8-44123-00-00 |
from US $6.80 |
||
|
12
|
12
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
15
|
15
6J8-44121-00-00 Lever, Shift Rod |
6J8-44121-00-00 |
US $24.65 |
||
| replacement | |||||
|
15
|
15
6J8-44121-01-00 LEVER, SHIFT ROD |
6J8-44121-01-00 |
from US $24.65 |
||
|
16
|
16
6G1-41662-01-94 Bracket 2 |
6G1-41662-01-94 |
from US $11.23 |
||
|
17
|
17
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
18
|
18
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
6J8-44116-00-00 Spring |
6J8-44116-00-00 |
from US $4.82 |
||
|
20
|
20
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
6J8-44143-00-00 Rod, Shift |
6J8-44143-00-00 |
from US $21.87 |
||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
25
|
25
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
25
|
25
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
26
|
26
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
27
|
27
6J8-42192-00-00 Rod 2 |
6J8-42192-00-00 |
from US $6.09 |
||
|
28
|
28
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $2.02 |
||
|
29
|
29
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
30
|
30
6J8-42154-01-00 Lever, Throttle Control |
6J8-42154-01-00 |
from US $28.48 |
||
|
31
|
31
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
32
|
32
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
33
|
33
6J8-44142-00-00 Joint |
6J8-44142-00-00 |
from US $5.85 |
||
|
34
|
34
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
