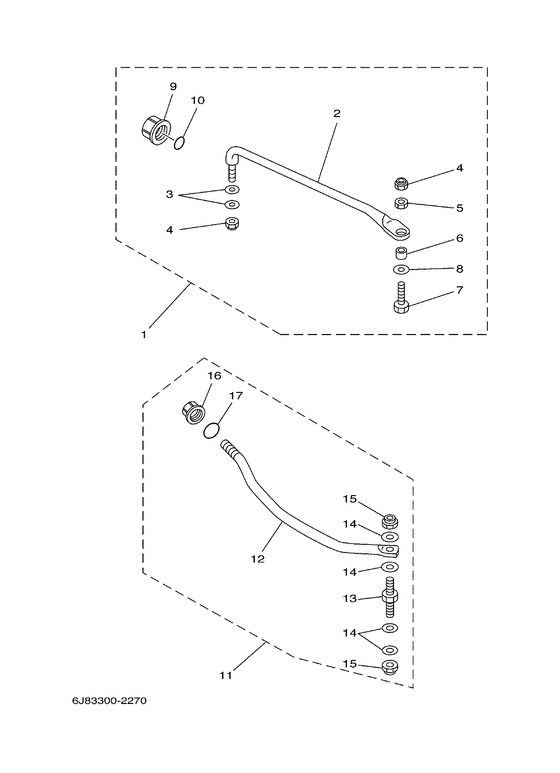

Steering guide Diagram Yamaha 30 EOS/L
- Year
- 2005
- Model
- 30D
- Model code
- 6J8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
6J8-61350-10-00
Steering Guide Attachment Kit
Ap |
6J8-61350-10-00 |
— | ||
|
12
|
12
6J8-61351-00-00
Rod, Steering Link
|
6J8-61351-00-00 |
— | ||
|
13
|
13
90116-09M32-00
Bolt, Stud
|
90116-09M32-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90201-10M20-00 Washer, Plate |
90201-10M20-00 |
from US $2.13 |
||
|
15
|
15
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.74 |
||
|
16
|
16
6E5-43145-01-00 Cap, Clamp Bracket |
6E5-43145-01-00 |
from US $8.70 |
||
|
17
|
17
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
