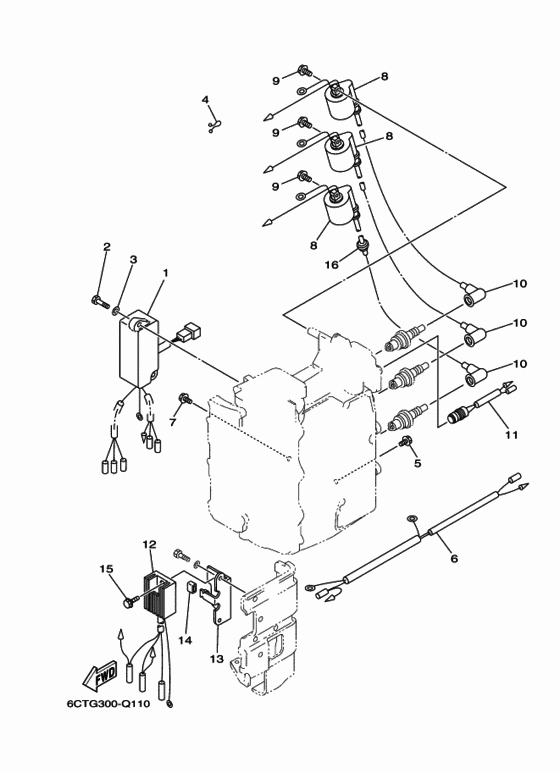

Electrical Diagram Yamaha 30 MHOL
- Year
- 2016
- Model
- 30D
- Model code
- 6CTG
- Year
- 2016
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Finland (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-85540-H2-00 C.d.i. Unit Assy |
6J8-85540-H2-00 |
from US $493.77 |
||
|
2
|
2
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
3
|
3
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
90464-15M11-00 Clamp |
90464-15M11-00 |
US $1.70 |
||
| replacement | |||||
|
4
|
4
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
5
|
5
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
5
|
5
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
6
|
6
6J8-82531-00-00 Wire, Lead |
6J8-82531-00-00 |
from US $24.94 |
||
|
7
|
7
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
7
|
7
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
8
|
8
6J8-85570-21-00 Ignition Coil Assy |
6J8-85570-21-00 |
from US $125.17 |
||
|
9
|
9
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
9
|
9
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
10
|
10
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
11
|
11
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
12
|
12
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $120.97 |
||
|
13
|
13
6J8-81975-00-00 Plate, Rectifier Fitting |
6J8-81975-00-00 |
from US $12.89 |
||
|
14
|
14
689-44194-00-00 Cap |
689-44194-00-00 |
from US $7.08 |
||
|
15
|
15
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
15
|
15
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
15
|
15
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
16
|
16
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
