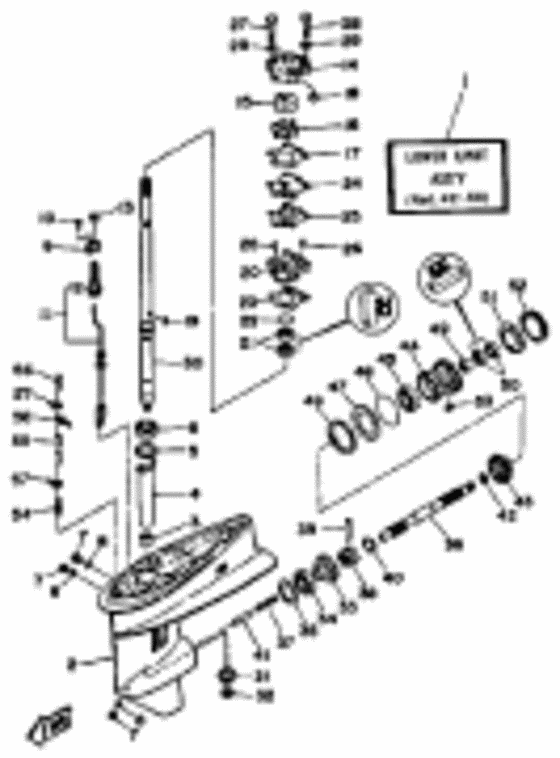

Lower drive Diagram Yamaha 30 ES/LH
- Year
- 1987
- Model
- 30
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-45300-14-EK
Lower Unit Assembly
|
6J8-45300-14-EK |
— | ||
|
1
|
1
6J8-45300-A0-EK
Lower Unit Assembly
|
6J8-45300-A0-EK |
— | ||
| replacement | |||||
|
1
|
1
6J8-45300-A2-EK
LOWER CASING
|
6J8-45300-A2-EK |
— | ||
|
2
|
2
6J8-45301-10-EK
Lower Casing
|
6J8-45301-10-EK |
— | ||
| replacement | |||||
|
2
|
2
6J8-45301-11-EK
element
|
6J8-45301-11-EK |
— | ||
|
3
|
3
933-15220-V7-00 Bearing |
933-15220-V7-00 |
from US $22.62 |
||
|
4
|
4
6J8-45536-00-00 Sleeve, Drive Shaft |
6J8-45536-00-00 |
from US $23.09 |
||
|
5
|
5
663-45587-01-12
Shim (T:0.12Mm)
|
663-45587-01-12 |
— | ||
| replacement | |||||
|
5
|
5
663-45587-10-00 Shim (T:0.12Mm) |
663-45587-10-00 |
from US $2.02 |
||
|
5
|
5
663-45587-01-30 Shim (T:0.30Mm) |
663-45587-01-30 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-40-00 Shim (T:0.30Mm) |
663-45587-40-00 |
from US $1.70 |
||
|
5
|
5
663-45587-01-50 Shim (T:0.50Mm) |
663-45587-01-50 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-60-00 Shim (T:0.50Mm) |
663-45587-60-00 |
from US $5.09 |
||
|
5
|
5
663-45587-00-05 Shim 3 (0.05Mm)0.05MM |
663-45587-00-05 |
US $4.56 |
||
|
5
|
5
663-45587-00-08
Shim 3 (0.08Mm)
0.08MM |
663-45587-00-08 |
— | ||
|
6
|
6
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
8
|
8
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
9
|
9
682-44176-00-00 Bracket |
682-44176-00-00 |
from US $6.23 |
||
|
10
|
10
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
10
|
10
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
|
11
|
11
6J8-44150-00-00 Shift Cam Assy |
6J8-44150-00-00 |
from US $96.80 |
||
|
11
|
11
6J8-44150-10-00 Shift Cam Assy |
6J8-44150-10-00 |
from US $101.95 |
||
|
12
|
12
682-44147-00-00 Boot, Shift Rod |
682-44147-00-00 |
from US $7.08 |
||
|
13
|
13
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
13
|
13
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
14
|
14
6J8-44311-00-00 Housing, Water Pump |
6J8-44311-00-00 |
from US $17.21 |
||
|
15
|
15
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $12.12 |
||
|
16
|
16
6H4-44352-02-00 Impeller |
6H4-44352-02-00 |
from US $26.60 |
||
|
17
|
17
663-44315-00-00 Gasket, Water Pump |
663-44315-00-00 |
US $7.79 |
||
| replacement | |||||
|
17
|
17
663-44315-A0-00 Gasket, Water Pump |
663-44315-A0-00 |
from US $4.38 |
||
|
18
|
18
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.74 |
||
|
19
|
19
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
20
|
20
663-44341-00-94 Housing, Water Pump |
663-44341-00-94 |
US $76.40 |
||
| replacement | |||||
|
20
|
20
663-44341-00-00 Housing, Water Pump |
663-44341-00-00 |
from US $44.44 |
||
|
21
|
21
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $11.12 |
||
|
22
|
22
93210-41042-00 O-Ring |
93210-41042-00 |
from US $3.04 |
||
|
23
|
23
663-44316-00-00 Gasket, Water Pump |
663-44316-00-00 |
US $5.95 |
||
| replacement | |||||
|
23
|
23
663-44316-A0-00 Gasket, Water Pump |
663-44316-A0-00 |
from US $3.38 |
||
|
24
|
24
663-44323-00-00 Outer Plate, Cartidge |
663-44323-00-00 |
from US $13.82 |
||
|
25
|
25
663-44324-00-00 Oil Seal |
663-44324-00-00 |
US $6.52 |
||
| replacement | |||||
|
25
|
25
663-44324-A0-00 Gasket, Cartridge |
663-44324-A0-00 |
from US $6.52 |
||
|
26
|
26
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.81 |
||
|
27
|
27
97395-08050-00 Bolt |
97395-08050-00 |
from US $6.88 |
||
| replacement | |||||
|
27
|
27
97095-08050-00 Bolt |
97095-08050-00 |
from US $7.65 |
||
|
28
|
28
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
28
|
28
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
29
|
29
90209-08M02-00 Washer |
90209-08M02-00 |
from US $3.83 |
||
|
30
|
30
6J8-45501-00-00 Drive Shaft Comp |
6J8-45501-00-00 |
from US $415.53 |
||
|
30
|
30
6J8-45501-10-00 Drive Shaft Comp |
6J8-45501-10-00 |
from US $438.62 |
||
|
31
|
31
6J8-45551-00-00 Pinion |
6J8-45551-00-00 |
from US $90.63 |
||
|
32
|
32
90179-10M14-00 Nut |
90179-10M14-00 |
from US $9.35 |
||
|
33
|
33
6J8-45560-00-00 Gear |
6J8-45560-00-00 |
from US $174.35 |
||
|
34
|
34
93332-000V6-00 Bearing |
93332-000V6-00 |
from US $46.15 |
||
|
35
|
35
6J8-45567-00-05
Shim
|
6J8-45567-00-05 |
— | ||
|
35
|
35
6J8-45567-00-08 Shim |
6J8-45567-00-08 |
US $6.48 |
||
|
35
|
35
6J8-45567-00-30 Shim |
6J8-45567-00-30 |
from US $2.90 |
||
| replacement | |||||
|
35
|
35
24W-17537-40-00 Shim, Thrust (0.3T) |
24W-17537-40-00 |
from US $3.83 |
||
|
35
|
35
6J8-45567-00-50 Shim |
6J8-45567-00-50 |
from US $4.07 |
||
| replacement | |||||
|
35
|
35
24W-17537-60-00 Shim, Thrust (0.5T) |
24W-17537-60-00 |
from US $3.83 |
||
|
35
|
35
6J8-45567-01-12 Shim (T:0.12Mm) |
6J8-45567-01-12 |
US $7.08 |
||
| replacement | |||||
|
35
|
35
6J8-45567-10-00 Shim (T:0.12Mm) |
6J8-45567-10-00 |
from US $5.09 |
||
|
36
|
36
6J8-45611-00-00 Shaft, Propeller |
6J8-45611-00-00 |
from US $270.95 |
||
|
37
|
37
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
38
|
38
6J8-45631-00-00 Clutch, Dog |
6J8-45631-00-00 |
US $88.72 |
||
| replacement | |||||
|
38
|
38
6J8-45631-01-00 Clutch, Dog |
6J8-45631-01-00 |
from US $76.89 |
||
|
39
|
39
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
40
|
40
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
40
|
40
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
41
|
41
6J8-45635-00-00 Plunger, Shift |
6J8-45635-00-00 |
from US $13.46 |
||
|
42
|
42
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
43
|
43
6J8-45571-00-00 Gear |
6J8-45571-00-00 |
from US $142.06 |
||
|
44
|
44
689-45331-01-94 Housing, Bearing |
689-45331-01-94 |
US $129.18 |
||
| replacement | |||||
|
44
|
44
689-45331-01-00 Housing, Bearing |
689-45331-01-00 |
from US $80.19 |
||
|
45
|
45
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
46
|
46
664-45577-00-05
Shim
|
664-45577-00-05 |
— | ||
|
46
|
46
664-45577-00-08
Shim
|
664-45577-00-08 |
— | ||
|
46
|
46
664-45577-01-12 Shim (T:0.12Mm) |
664-45577-01-12 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-10-00 Shim (T:0.12Mm) |
664-45577-10-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-30 Shim (T:0.30Mm) |
664-45577-01-30 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-40-00 Shim (T:0.30Mm) |
664-45577-40-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-50 Shim (T:0.50Mm) |
664-45577-01-50 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-60-00 Shim (T:0.50Mm) |
664-45577-60-00 |
from US $7.37 |
||
|
47
|
47
664-45576-00-00 Washer, Thrust 2 |
664-45576-00-00 |
from US $12.18 |
||
|
48
|
48
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
49
|
49
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
50
|
50
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
51
|
51
90214-45M02-00 Washer, Claw |
90214-45M02-00 |
from US $7.51 |
||
|
52
|
52
664-45384-00-00 Ecrou |
664-45384-00-00 |
US $42.14 |
||
| replacement | |||||
|
52
|
52
664-45384-02-00 Nut |
664-45384-02-00 |
from US $29.86 |
||
|
53
|
53
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
54
|
54
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.72 |
||
|
55
|
55
904-4507M-31-00
Hose (L200)
|
904-4507M-31-00 |
— | ||
| replacement | |||||
|
55
|
55
90445-07M19-00 Hose (L200) |
90445-07M19-00 |
from US $2.27 |
||
|
56
|
56
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
57
|
57
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
57
|
57
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
57
|
57
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
58
|
58
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
58
|
58
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
58
|
58
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
