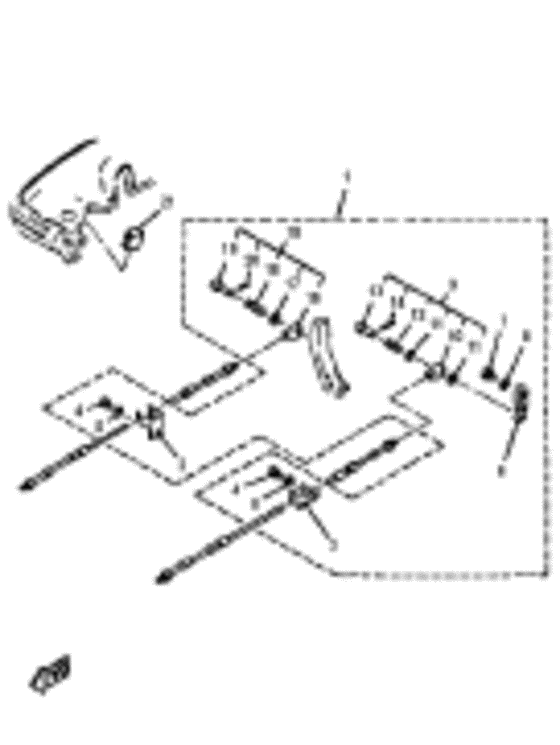

Remote control attachment Diagram Yamaha 30 ES/L
- Year
- 1985
- Model
- 30
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-48501-50-00
Attachment Assy
|
689-48501-50-00 |
— | ||
|
2
|
2
689-48531-50-00 Bracket, Remote Control 1 |
689-48531-50-00 |
US $15.58 |
||
| replacements | |||||
|
2
|
2
689-48531-51-00 Bracket, Remote Control 1 |
689-48531-51-00 |
US $15.58 |
||
|
2
|
2
689-48531-52-00 Bracket, Remote Control 1 |
689-48531-52-00 |
from US $15.58 |
||
|
3
|
3
689-48532-50-00 Bracket, Remote Control 2 |
689-48532-50-00 |
US $16.58 |
||
| replacements | |||||
|
3
|
3
689-48532-51-00 Bracket, Remote Control 2 |
689-48532-51-00 |
US $16.58 |
||
|
3
|
3
689-48532-52-00 Bracket, Remote Control 2 |
689-48532-52-00 |
from US $16.58 |
||
|
4
|
4
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
4
|
4
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
648-48534-50-EK
Throttle Lever, Control
|
648-48534-50-EK |
— | ||
|
7
|
7
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
679-48340-90-00 Cable End Assembly.thr |
679-48340-90-00 |
from US $72.59 |
||
|
10
|
10
679-48346-90-00 Cable End, Rem.cont |
679-48346-90-00 |
US $17.33 |
||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
12
|
12
90501-10264-00 Spring, Compression |
90501-10264-00 |
from US $1.70 |
||
|
13
|
13
617-48361-90-00 Hook, Cable |
617-48361-90-00 |
US $21.96 |
||
| replacement | |||||
|
13
|
13
617-48361-91-00 Hook, Cable |
617-48361-91-00 |
from US $21.96 |
||
|
14
|
14
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
15
|
15
648-48330-50-00 Cable End Assy |
648-48330-50-00 |
from US $43.54 |
||
|
16
|
16
648-48346-50-00 Cable End, Remote Control |
648-48346-50-00 |
from US $15.02 |
||
|
17
|
17
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
18
|
18
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
19
|
19
617-48331-91-00 Hook, Cable |
617-48331-91-00 |
from US $22.10 |
||
|
20
|
20
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
21
|
21
676-42724-40-00 Grommet |
676-42724-40-00 |
from US $6.94 |
||
