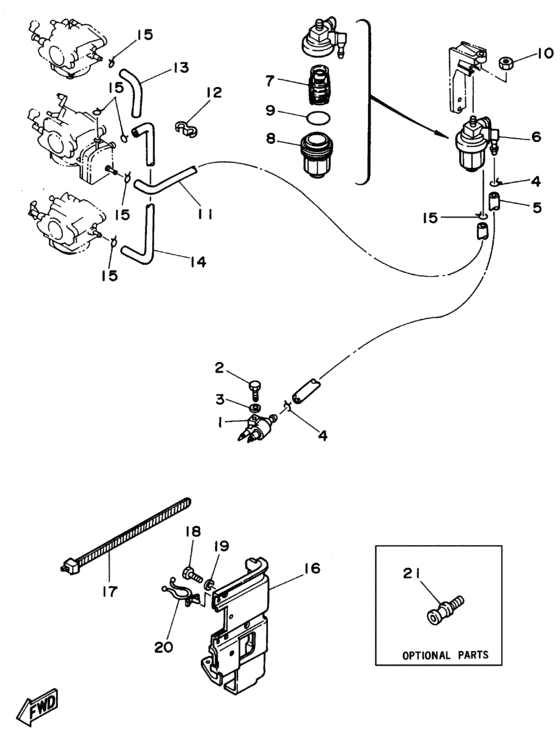

Fuel Diagram Yamaha 30 MS/LH
- Year
- 1995
- Model
- 30
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
2
|
2
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
5
|
5
90445-09M00-00 Hose (L180) |
90445-09M00-00 |
from US $4.11 |
||
| replacement | |||||
|
5
|
5
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
6
|
6
61N-24560-00-00 Filter Assy |
61N-24560-00-00 |
US $41.86 |
||
| replacement | |||||
|
6
|
6
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
7
|
7
61N-24563-00-00 Element, Filter |
61N-24563-00-00 |
from US $7.49 |
||
| replacement | |||||
|
7
|
7
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.49 |
||
|
8
|
8
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
9
|
9
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
10
|
10
90179-08M15-00 Nut |
90179-08M15-00 |
from US $3.68 |
||
|
11
|
11
6E5-24312-00-00 Pipe 2 |
6E5-24312-00-00 |
from US $9.21 |
||
|
12
|
12
90464-09M21-00 Clamp |
90464-09M21-00 |
from US $1.84 |
||
|
13
|
13
688-24313-00-00
Pipe 3
|
688-24313-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6A4-24312-00-00 Pipe, Fuel 2 |
6A4-24312-00-00 |
from US $10.96 |
||
|
14
|
14
6J8-24311-00-00 Pipe, Fuel 1 |
6J8-24311-00-00 |
US $9.78 |
||
| replacement | |||||
|
14
|
14
6A4-24312-00-00 Pipe, Fuel 2 |
6A4-24312-00-00 |
from US $10.96 |
||
|
15
|
15
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
16
|
16
6J8-28170-00-00 Holder, Tool |
6J8-28170-00-00 |
from US $25.64 |
||
|
17
|
17
6E1-42694-00-00
Band
|
6E1-42694-00-00 |
— | ||
|
18
|
18
97395-08016-00 Bolt |
97395-08016-00 |
US $1.28 |
||
| replacements | |||||
|
18
|
18
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
|
18
|
18
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
18
|
18
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
90464-12M17-00 Clamp |
90464-12M17-00 |
US $1.84 |
||
| replacement | |||||
|
20
|
20
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
21
|
21
6E0-28193-00-94 Plug, Water Check |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
21
|
21
6E0-28193-00-00 Plug, Water Check |
6E0-28193-00-00 |
from US $9.35 |
||
