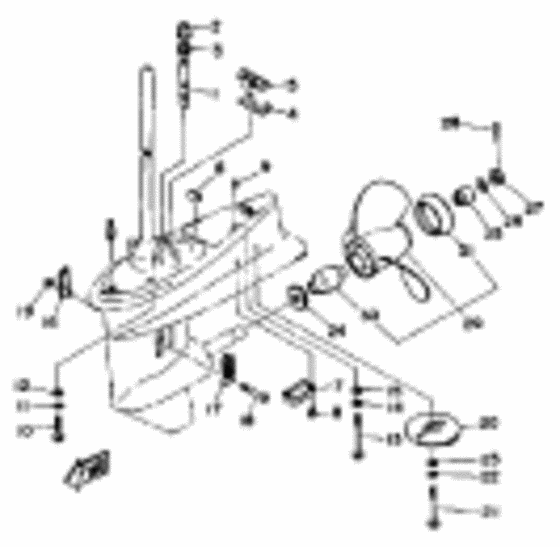

Lower drive Diagram Yamaha 30 S/L
- Year
- 1987
- Model
- 30
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-44361-00-00 Tube, Water 1 |
6J8-44361-00-00 |
from US $21.87 |
||
|
1
|
1
6J8-44361-10-00 Tube, Water 1 |
6J8-44361-10-00 |
from US $29.86 |
||
|
2
|
2
6J8-44366-00-00 Damper, Water Seal 2 |
6J8-44366-00-00 |
from US $7.07 |
||
|
3
|
3
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.47 |
||
|
4
|
4
6H9-45376-00-00 Guide, Rub.seal |
6H9-45376-00-00 |
from US $8.50 |
||
|
5
|
5
6J8-45375-10-00
Seal, Rubber
|
6J8-45375-10-00 |
— | ||
|
6
|
6
6J8-44365-10-00
Water Seal
|
6J8-44365-10-00 |
— | ||
|
7
|
7
6J8-45224-10-00 Cover, Water Inlet 3 |
6J8-45224-10-00 |
from US $8.08 |
||
|
8
|
8
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
10
|
10
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
10
|
10
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
|
10
|
10
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
11
|
11
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
12
|
12
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
13
|
13
97395-08085-00 Bolt |
97395-08085-00 |
from US $5.76 |
||
| replacement | |||||
|
13
|
13
975-95085-85-00 Bolt, With Washer |
975-95085-85-00 |
from US $5.66 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
16
|
16
689-45214-01-00 Cover, Water Inlet 1 |
689-45214-01-00 |
from US $9.35 |
||
|
17
|
17
6J8-45215-00-00 Cover, Water Inlet 2 |
6J8-45215-00-00 |
from US $8.93 |
||
|
18
|
18
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
19
|
19
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
19
|
19
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
20
|
20
664-45371-01-00 Tab-Trim |
664-45371-01-00 |
from US $24.30 |
||
|
21
|
21
97395-08020-00 Bolt, Hexagon |
97395-08020-00 |
from US $2.09 |
||
| replacement | |||||
|
21
|
21
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
24
|
24
664-45987-01-00 Spacer 1 |
664-45987-01-00 |
from US $42.55 |
||
|
25
|
25
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $16.16 |
||
|
26
|
26
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.66 |
||
|
27
|
27
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $9.72 |
||
|
28
|
28
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
29
|
29
6J8-W4591-00-EL Propeller (3X10-5/8X8-1/4-F)3X10-5/8X8-1/4-F |
6J8-W4591-00-EL |
US $204.48 |
||
| replacement | |||||
|
29
|
29
6J8-W4591-00-00 Propeller (3X10-5/8"x8-1/4"-F)3X10-5/8X8-1/4-F |
6J8-W4591-00-00 |
from US $204.48 |
||
|
29
|
29
664-45970-00-98 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-98 |
US $710.16 |
||
| replacement | |||||
|
29
|
29
664-45970-00-00 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-00 |
from US $710.16 |
||
|
29
|
29
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-00 |
from US $216.91 |
||
|
29
|
29
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-00 |
from US $216.91 |
||
|
29
|
29
664-45949-02-EL
Propeller (3X9-7/8"x13"-F)
3X9-7/8"X13"-F |
664-45949-02-EL |
— | ||
| replacement | |||||
|
29
|
29
664-45949-02-00 Propeller (3X9-7/8"x13"-F)3X9-7/8"X13"-F |
664-45949-02-00 |
from US $236.93 |
||
|
29
|
29
664-45952-00-EL Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45952-00-00 Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-00 |
from US $216.91 |
||
|
29
|
29
664-45943-01-EL Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45943-01-00 Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-00 |
from US $216.91 |
||
|
29
|
29
664-45941-01-EL Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45941-01-00 Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-00 |
from US $216.91 |
||
|
30
|
30
664-45981-01-00 Damper Rubber Prop |
664-45981-01-00 |
from US $34.43 |
||
|
31
|
31
664-45986-01-94
Reflector Ring
|
664-45986-01-94 |
— | ||
|
31
|
31
6J8-45986-10-00 Ring, Deflector |
6J8-45986-10-00 |
from US $24.38 |
||
