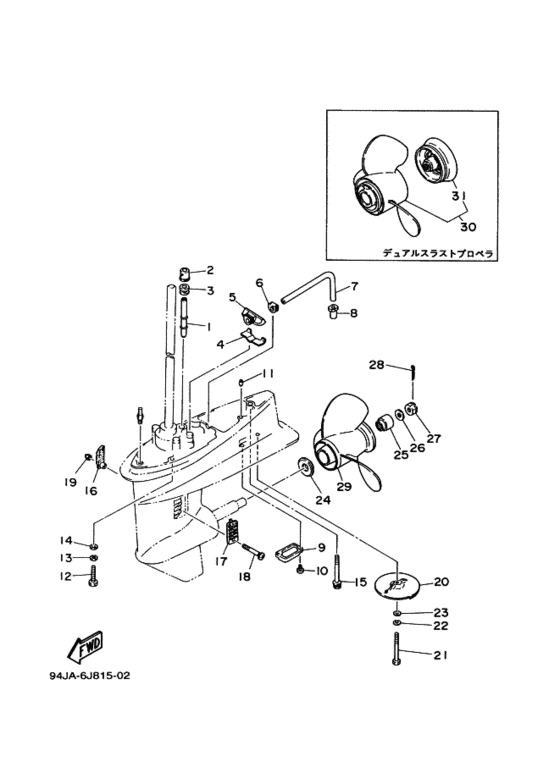

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 2 Diagram Yamaha 30 MHS/L
- Year
- 1994
- Model
- 30D
- Model code
- 6J8
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-44361-00-00 Tube, Water 1チユーブ，ウオータ; ＵＲ ＳＨＯＲＴ |
6J8-44361-00-00 |
from US $21.87 |
||
|
1
|
1
6J8-44361-10-00 Tube, Water 1チユーブ，ウオータ; ＵＲ ＬＯＮＧ |
6J8-44361-10-00 |
from US $29.86 |
||
|
1
|
1
6J8-44361-20-00
Tube, Water 1
チユーブ，ウオータ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ |
6J8-44361-20-00 |
— | ||
|
1
|
1
6J8-44361-30-00
Tube, Water 1
チユーブ，ウオータ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
6J8-44361-30-00 |
— | ||
|
2
|
2
6J8-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
6J8-44366-00-00 |
from US $7.07 |
||
|
3
|
3
663-44367-00-00 Damper, Water Seal 3ダンパ，ウオータシール; |
663-44367-00-00 |
US $3.47 |
||
|
4
|
4
6H9-45376-00-00 Guide, Rub.sealガイド，シールダンパ; |
6H9-45376-00-00 |
from US $8.50 |
||
|
5
|
5
6H9-45375-00-00 Damper, Sealダンパ，シール; |
6H9-45375-00-00 |
US $6.38 |
||
|
6
|
6
6H4-44365-00-00 Damper, Water Seal 1ダンパ，ウオータシール; |
6H4-44365-00-00 |
US $7.64 |
||
|
7
|
7
6J8-44362-00-00 Tube, Water 2チユーブ，ウオータ; |
6J8-44362-00-00 |
US $17.63 |
||
|
8
|
8
6E7-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
6E7-44366-00-00 |
US $4.68 |
||
|
9
|
9
6J8-45224-00-00 Cover, Water Inlet 3カバー，ウオータインレツト ３; |
6J8-45224-00-00 |
US $5.44 |
||
|
10
|
10
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
12
|
12
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
12
|
12
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
|
12
|
12
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
13
|
13
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
14
|
14
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.18 |
||
|
15
|
15
90119-08M92-00 Bolt, With Washer(6J8) |
90119-08M92-00 |
from US $6.38 |
||
| replacement | |||||
|
15
|
15
975-75086-85-00 Bolt, With Washer |
975-75086-85-00 |
from US $6.38 |
||
|
16
|
16
689-45214-01-00 Cover, Water Inlet 1カバー，ウオータインレツト; |
689-45214-01-00 |
from US $9.35 |
||
|
17
|
17
6J8-45215-00-00 Cover, Water Inlet 2カバー，ウオータインレツト; |
6J8-45215-00-00 |
from US $8.93 |
||
|
18
|
18
98680-05525-00 Screw.oval Headスクリユ，オーバルヘツド; |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
987-80055-25-00 Screw, Flat Headスクリユ，オーバルヘツド; |
987-80055-25-00 |
from US $2.69 |
||
|
19
|
19
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
19
|
19
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
20
|
20
664-45371-01-00 Tab-Trimタブトリム; |
664-45371-01-00 |
from US $24.30 |
||
|
21
|
21
97395-08020-00 Bolt, Hexagon |
97395-08020-00 |
from US $2.09 |
||
| replacement | |||||
|
21
|
21
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.66 |
||
|
24
|
24
6L2-45987-01-00 Spacer 1スペーサ; |
6L2-45987-01-00 |
from US $31.91 |
||
|
25
|
25
689-45997-00-00 Spacer 2スペーサ; |
689-45997-00-00 |
from US $16.16 |
||
|
26
|
26
92990-14200-00 Washer, Plainワツシヤ，プレーン; |
92990-14200-00 |
from US $1.66 |
||
|
27
|
27
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $9.72 |
||
|
28
|
28
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
29
|
29
664-45941-01-EL Propeller (3X9-7/8"x9"-F)プロペラ ; ３Ｘ９−７／８ Ｘ９ −Ｆ; ＵＲ |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45941-01-00 Propeller (3X9-7/8"x9"-F)プロペラ ; ３Ｘ９−７／８ Ｘ９ −Ｆ; ＵＲ |
664-45941-01-00 |
from US $216.91 |
||
|
29
|
29
664-45943-01-EL Propeller (3X9-7/8"x8"-F)プロペラ ; ３Ｘ９−７／８ Ｘ８ −Ｆ; ＵＲ |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45943-01-00 Propeller (3X9-7/8"x8"-F)プロペラ ; ３Ｘ９−７／８ Ｘ８ −Ｆ; ＵＲ |
664-45943-01-00 |
from US $216.91 |
||
|
29
|
29
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１０−１／２ −Ｆ; ＵＲ |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１０−１／２ −Ｆ; ＵＲ |
664-45945-00-00 |
from US $216.91 |
||
|
29
|
29
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１１−１／４ −Ｆ; ＵＲ |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１１−１／４ −Ｆ; ＵＲ |
664-45947-01-00 |
from US $216.91 |
||
|
29
|
29
664-45949-02-EL
Propeller (3X9-7/8"x13"-F)
プロペラ ; ３Ｘ９−７／８ Ｘ１３ −Ｆ; ＵＲ |
664-45949-02-EL |
— | ||
| replacement | |||||
|
29
|
29
664-45949-02-00 Propeller (3X9-7/8"x13"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１３ −Ｆ; ＵＲ |
664-45949-02-00 |
from US $236.93 |
||
|
29
|
29
664-45952-00-EL Propeller (3X9-7/8"x14"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１４ −Ｆ; ＵＲ |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45952-00-00 Propeller (3X9-7/8"x14"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１４ −Ｆ; ＵＲ |
664-45952-00-00 |
from US $216.91 |
||
|
29
|
29
664-45954-00-EL Propeller (3X9-7/8"x12"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１２ −Ｆ; ＵＲ |
664-45954-00-EL |
US $216.91 |
||
| replacement | |||||
|
29
|
29
664-45954-01-00 Propeller (3X9-7/8"x12"-F)プロペラ ; ３Ｘ９−７／８ Ｘ１２ −Ｆ; ＵＲ |
664-45954-01-00 |
from US $216.91 |
||
|
29
|
29
664-45970-00-98 Propeller (3X9-1/8"x13"-F)プロペラ ; ３Ｘ９−１／８ Ｘ１３ −Ｆ; ＵＲ ＳＴＡＩＮＬＥＳＳ ＰＲＯＰ． |
664-45970-00-98 |
US $710.16 |
||
| replacement | |||||
|
29
|
29
664-45970-00-00 Propeller (3X9-1/8"x13"-F)プロペラ ; ３Ｘ９−１／８ Ｘ１３ −Ｆ; ＵＲ ＳＴＡＩＮＬＥＳＳ ＰＲＯＰ． |
664-45970-00-00 |
from US $710.16 |
||
|
30
|
30
6J8-W4591-00-EL Propeller (3X10-5/8X8-1/4-F)プロペラ ; ３Ｘ１０−５／８ Ｘ８−１／４ −Ｆ; ＵＲ ＤＵＡＬ ＴＨＲＵＳＴ ＰＲＯＰ． |
6J8-W4591-00-EL |
US $204.48 |
||
| replacement | |||||
|
30
|
30
6J8-W4591-00-00 Propeller (3X10-5/8"x8-1/4"-F)プロペラ ; ３Ｘ１０−５／８ Ｘ８−１／４ −Ｆ; ＵＲ ＤＵＡＬ ＴＨＲＵＳＴ ＰＲＯＰ． |
6J8-W4591-00-00 |
from US $204.48 |
||
|
31
|
31
6J8-45986-10-98 Ring, Deflector．リング，デイフレクタ; |
6J8-45986-10-98 |
US $27.08 |
||
| replacement | |||||
|
31
|
31
6J8-45986-10-00 Ring, Deflector．リング，デイフレクタ; |
6J8-45986-10-00 |
from US $24.38 |
||
