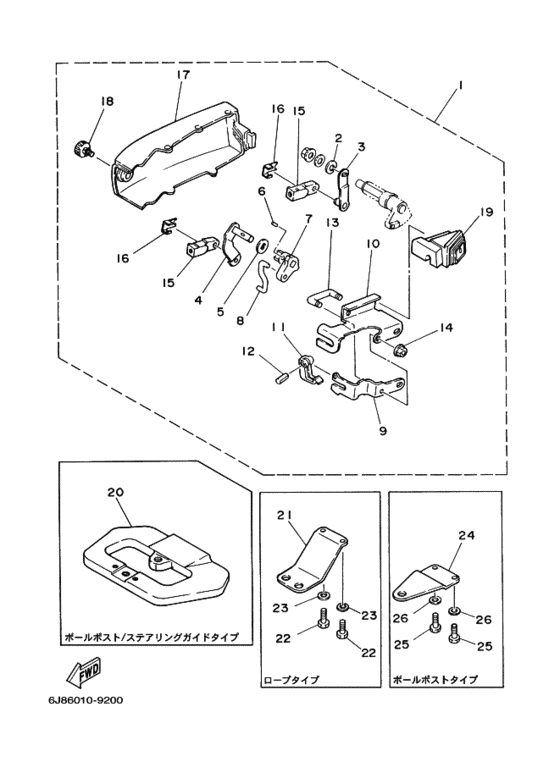

ﾘﾓｺﾝｱﾀﾂﾁﾒﾝﾄ Diagram Yamaha 30 ETOS/L
- Year
- 2005
- Model
- 30D
- Model code
- 6J8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-48501-03-4D Remote Cont. Attachment Assyリモートコントロールアタツチメントアセンブリ; ＡＰ |
6J8-48501-03-4D |
from US $104.99 |
||
|
1
|
1
6J8-48501-11-00 Remote Cont. Attachment Assyリモートコントロールアタツチメントアセンブリ; ＡＰ |
6J8-48501-11-00 |
from US $52.15 |
||
|
2
|
2
92990-08100-00 Ybs67-8 Washer, Spring．ワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
3
|
3
6J8-48534-00-00 Throttle Lever, Control．スロツトルレバー，コントロール; |
6J8-48534-00-00 |
from US $24.71 |
||
|
4
|
4
6J8-48544-01-00 Lever, Shiftcontrol．レバー，シフトコントロール; |
6J8-48544-01-00 |
US $37.30 |
||
| replacement | |||||
|
4
|
4
6J8-48544-02-00 LEVER, SHIFTCONTROL．レバー，シフトコントロール; |
6J8-48544-02-00 |
from US $37.30 |
||
|
5
|
5
6J8-44177-00-00 Washer．ワツシヤ; |
6J8-44177-00-00 |
from US $2.55 |
||
|
6
|
6
90254-03M03-00 Pin, Spring．ピン，スプリング; |
90254-03M03-00 |
from US $2.69 |
||
|
7
|
7
6J8-44173-02-00 Lever, Shift Control．レバー，シフトコントロール; |
6J8-44173-02-00 |
from US $15.50 |
||
|
8
|
8
6J8-42169-01-00 Joint．ジヨイント; |
6J8-42169-01-00 |
from US $7.23 |
||
|
9
|
9
6J8-48531-00-00 Bracket, Remote Control 1．ブラケツト，リモートコントロール １; |
6J8-48531-00-00 |
from US $18.99 |
||
|
10
|
10
6J8-48532-00-00 Bracket, Remote Control 2．ブラケツト，リモートコントロール ２; |
6J8-48532-00-00 |
from US $32.16 |
||
|
11
|
11
682-48538-50-00 Clamp, Cable 1．クランプ，ケーブル １; |
682-48538-50-00 |
from US $5.67 |
||
|
12
|
12
91690-30012-00 Pin, Spring．ピン，スプリング; |
91690-30012-00 |
from US $2.69 |
||
|
13
|
13
90109-06M29-00 Bolt．ボルト; |
90109-06M29-00 |
from US $6.66 |
||
|
14
|
14
90179-06M24-00 Nut．ナツト; |
90179-06M24-00 |
from US $2.69 |
||
|
15
|
15
6G8-26363-00-00 End, Wire 1．エンド， ケーブル; |
6G8-26363-00-00 |
from US $3.97 |
||
|
16
|
16
6G8-26364-00-00 End, Cable．エンド，ケーブル ２; |
6G8-26364-00-00 |
from US $4.82 |
||
|
17
|
17
6J8-42723-51-00 Cover, Bottom．カバー，ボトム; |
6J8-42723-51-00 |
from US $20.26 |
||
|
18
|
18
6J8-42846-00-00 Screw．スクリユ; |
6J8-42846-00-00 |
from US $13.46 |
||
|
19
|
19
6J8-42724-10-00 Grommet．グロメツト; |
6J8-42724-10-00 |
from US $12.89 |
||
|
20
|
20
6J8-48511-01-4D Hook, SteeringＡＰ |
6J8-48511-01-4D |
US $109.70 |
||
| replacement | |||||
|
20
|
20
6J8-48511-01-8D Hook, SteeringＡＰ |
6J8-48511-01-8D |
from US $74.72 |
||
|
21
|
21
6G8-48511-00-00 Hook, SteeringＡＰ ロープタイプ |
6G8-48511-00-00 |
from US $19.55 |
||
|
22
|
22
97095-06016-00 Boltボルト; ＡＰ |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; ＡＰ |
97D95-06016-00 |
from US $1.52 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
ＡＰ |
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646)ＡＰ |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
6G8-48511-10-00 Hook, SteeringＡＰ ボールポストタイプ |
6G8-48511-10-00 |
from US $13.03 |
||
|
25
|
25
97095-06016-00 Boltボルト; ＡＰ |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; ＡＰ |
97D95-06016-00 |
from US $1.52 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
ＡＰ |
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ＡＰ |
929-90066-00-00 |
from US $1.39 |
||
