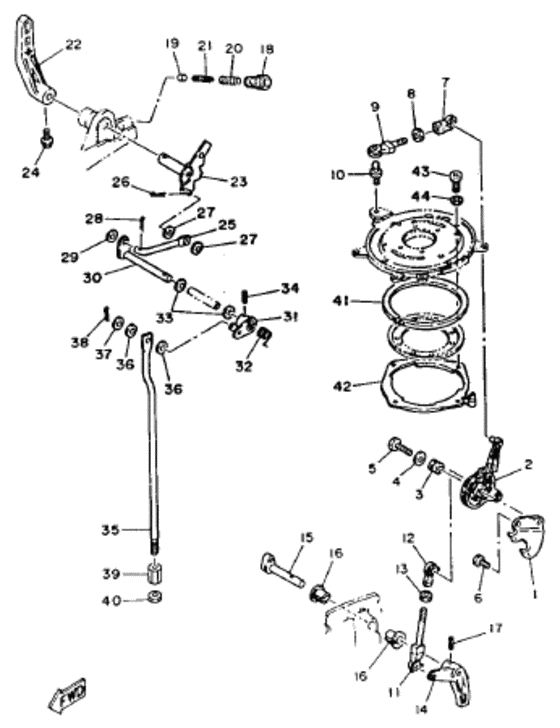

Control engine Diagram Yamaha 30 ES/LR
- Year
- 1993
- Model
- C30
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-14497-00-00 Stay, Throttle Wire |
689-14497-00-00 |
from US $12.47 |
||
|
2
|
2
61N-41631-00-94 Lever, Magneto Control |
61N-41631-00-94 |
from US $33.15 |
||
|
3
|
3
90387-06M02-00 Collar |
90387-06M02-00 |
from US $5.81 |
||
|
4
|
4
903-87062-98-00
Collar
|
903-87062-98-00 |
— | ||
|
5
|
5
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
5
|
5
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
6
|
6
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
8
|
8
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
9
|
9
679-41241-01-00 Rod, Link |
679-41241-01-00 |
from US $11.66 |
||
|
10
|
10
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
11
|
11
689-42169-01-00 Joint |
689-42169-01-00 |
from US $11.48 |
||
|
12
|
12
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
689-42154-80-94 Lever, Throttle Control |
689-42154-80-94 |
from US $23.38 |
||
|
15
|
15
656-42153-00-94 Shaft, Throttle Control |
656-42153-00-94 |
from US $15.40 |
||
|
16
|
16
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
17
|
17
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
18
|
18
664-42715-00-00 Bushing |
664-42715-00-00 |
from US $7.76 |
||
|
19
|
19
664-44167-00-00 Plunger, Shift Cam |
664-44167-00-00 |
US $7.93 |
||
| replacement | |||||
|
19
|
19
664-44167-01-00 Plunger, Shift Cam |
664-44167-01-00 |
from US $7.93 |
||
|
20
|
20
90501-14M07-00 Spring, Compression |
90501-14M07-00 |
from US $4.11 |
||
|
21
|
21
90501-09M08-00 Spring, Compression |
90501-09M08-00 |
from US $3.38 |
||
|
22
|
22
689-44111-00-EK
Handle, Gear Shift
|
689-44111-00-EK |
— | ||
| replacement | |||||
|
22
|
22
689-44111-01-EK
Gear Shift Handle
|
689-44111-01-EK |
— | ||
|
23
|
23
664-44113-01-00 Cam Plate, Handle |
664-44113-01-00 |
from US $40.10 |
||
|
24
|
24
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
25
|
25
664-44142-00-00 Joint |
664-44142-00-00 |
from US $13.88 |
||
|
26
|
26
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
27
|
27
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
28
|
28
91490-12012-00 Pin. Cotter |
91490-12012-00 |
from US $1.98 |
||
|
29
|
29
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
30
|
30
689-44121-01-00 Lever, Shift Rod |
689-44121-01-00 |
from US $20.69 |
||
|
31
|
31
689-44125-00-00 Lever, Shift Rod |
689-44125-00-00 |
from US $23.94 |
||
|
32
|
32
90508-14M13-00 Spring, Torsion |
90508-14M13-00 |
from US $4.53 |
||
|
33
|
33
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
34
|
34
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
35
|
35
61N-44143-00-00 Rod, Shift |
61N-44143-00-00 |
US $26.78 |
||
| replacement | |||||
|
35
|
35
69S-44143-00-00 Rod, Shift |
69S-44143-00-00 |
from US $17.82 |
||
|
36
|
36
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
37
|
37
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
38
|
38
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
39
|
39
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
39
|
39
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
40
|
40
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
41
|
41
676-41611-00-00 Retainer, Magneto Base |
676-41611-00-00 |
from US $25.36 |
||
|
42
|
42
676-41613-00-00 Plate, Base Friction |
676-41613-00-00 |
from US $20.97 |
||
|
43
|
43
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
44
|
44
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
