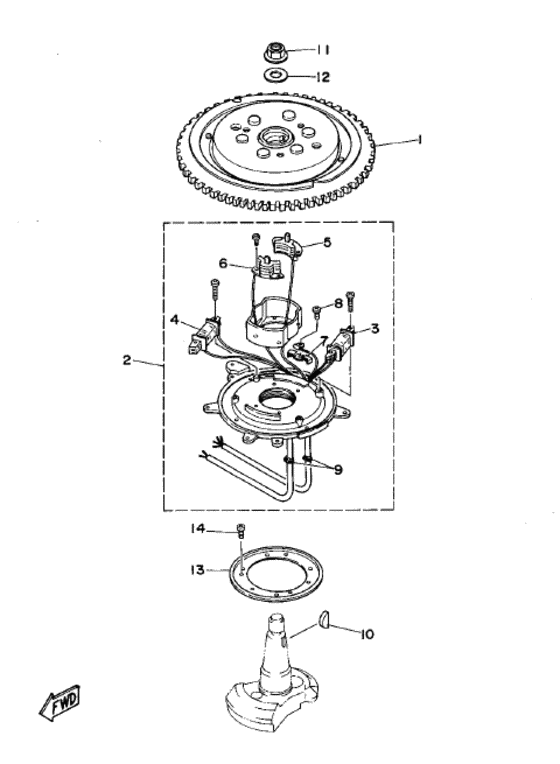

Generator Diagram Yamaha 30 ES/LR
- Year
- 1995
- Model
- C30
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61N-85550-00-00
Rotor Assembly
|
61N-85550-00-00 |
— | ||
|
2
|
2
61N-85560-00-00
Base Assembly
|
61N-85560-00-00 |
— | ||
|
3
|
3
61N-85541-09-00 Coil, Charge |
61N-85541-09-00 |
from US $226.10 |
||
|
4
|
4
61N-81313-09-00 Coil, Lighting 1 |
61N-81313-09-00 |
from US $64.24 |
||
|
5
|
5
61N-85543-09-00 Coil Pulser |
61N-85543-09-00 |
from US $84.84 |
||
|
6
|
6
61N-85543-19-00 Coil Pulser |
61N-85543-19-00 |
from US $86.18 |
||
|
7
|
7
6E9-81328-70-00 Clamp |
6E9-81328-70-00 |
from US $6.23 |
||
|
8
|
8
98507-04006-00 Vis, Tete Tronconique |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
8
|
8
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
9
|
9
6E9-85516-70-00 Spacer |
6E9-85516-70-00 |
from US $6.38 |
||
|
10
|
10
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
11
|
11
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
12
|
12
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
13
|
13
689-41612-01-00 Retainer, Magneto Base |
689-41612-01-00 |
US $18.42 |
||
|
14
|
14
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
