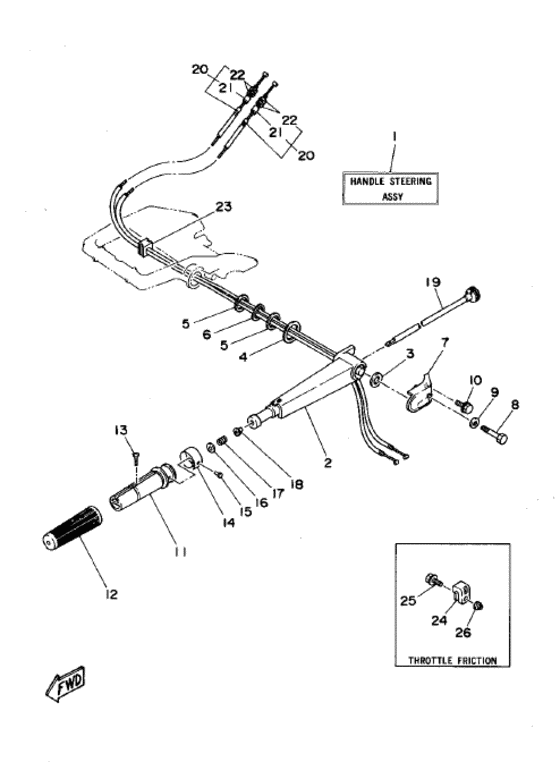

Steering (Alternate manual) Diagram Yamaha 30 ES/LR
- Year
- 1995
- Model
- C30
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61N-W0084-00-4D
Handle Steering Assembly (Ref. # 2~23)
2~23 |
61N-W0084-00-4D |
— | ||
|
2
|
2
689-42111-00-4D
Handle, Steering
|
689-42111-00-4D |
— | ||
| replacement | |||||
|
2
|
2
694-42111-00-4D
Handle, Steering
|
694-42111-00-4D |
— | ||
|
3
|
3
90560-14076-00 Entretoise |
90560-14076-00 |
US $5.14 |
||
|
4
|
4
90202-34043-00 Rondelle, Plate |
90202-34043-00 |
US $4.04 |
||
|
5
|
5
90201-28M00-00
Rondelle, Plate
|
90201-28M00-00 |
— | ||
|
6
|
6
90206-28M07-00 Rondelle, Ondulee |
90206-28M07-00 |
US $4.56 |
||
|
7
|
7
689-42112-00-4D Handle, Steering |
689-42112-00-4D |
US $94.36 |
||
| replacement | |||||
|
7
|
7
99999-03925-00 Handle, Steering |
99999-03925-00 |
from US $52.96 |
||
|
8
|
8
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
11
|
11
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
12
|
12
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
13
|
13
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
13
|
13
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
14
|
14
689-42137-20-00 Indicator, Throttle |
689-42137-20-00 |
from US $11.76 |
||
| replacement | |||||
|
14
|
14
689-42137-30-00
Indicator, Throttle
|
689-42137-30-00 |
— | ||
|
15
|
15
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
16
|
16
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
17
|
17
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
18
|
18
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
19
|
19
689-42138-00-00 Lever, Throttle |
689-42138-00-00 |
from US $15.16 |
||
|
20
|
20
61N-26311-00-00 Cable, Throttle 1 |
61N-26311-00-00 |
US $15.87 |
||
| replacement | |||||
|
20
|
20
61N-26311-01-00 Cable, Throttle 1 |
61N-26311-01-00 |
from US $15.87 |
||
|
21
|
21
90123-06M00-00 Bolt(6A9) |
90123-06M00-00 |
from US $2.50 |
||
|
22
|
22
90170-06183-00 Ecrou |
90170-06183-00 |
from US $2.98 |
||
|
23
|
23
61N-26326-00-00 Grommet |
61N-26326-00-00 |
US $7.08 |
||
|
24
|
24
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
25
|
25
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
25
|
25
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
26
|
26
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
