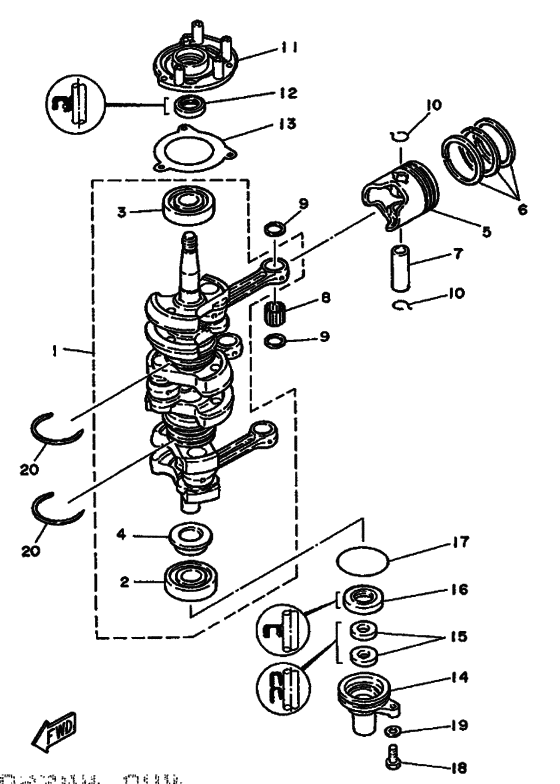

Crankshaft & Piston Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-11400-01-00 Crankshaft Assy |
6H4-11400-01-00 |
US $1,623.60 |
||
| replacement | |||||
|
1
|
1
6H4-11400-04-00 Crankshaft Assy |
6H4-11400-04-00 |
from US $1,883.79 |
||
|
2
|
2
933-06305-10-00
Bearing
|
933-06305-10-00 |
— | ||
| replacements | |||||
|
2
|
2
933-06305-71-00 Bearing |
933-06305-71-00 |
from US $52.86 |
||
|
2
|
2
93306-30550-00 Bearing |
93306-30550-00 |
from US $35.92 |
||
|
3
|
3
933-06305-U2-00
Bearing
|
933-06305-U2-00 |
— | ||
| replacement | |||||
|
3
|
3
933-06305-U8-00 Bearing |
933-06305-U8-00 |
from US $40.74 |
||
|
4
|
4
6H4-11445-00-00 Spacer |
6H4-11445-00-00 |
from US $23.80 |
||
|
5
|
5
6H4-11631-00-96
Piston (Std)
|
6H4-11631-00-96 |
— | ||
| replacement | |||||
|
5
|
5
6H4-11631-09-96
Piston Std. (S.t.d)
|
6H4-11631-09-96 |
— | ||
|
5
|
5
6H4-11635-00-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6H4-11635-00-00 |
— | ||
| replacement | |||||
|
5
|
5
6H4-11635-09-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6H4-11635-09-00 |
— | ||
|
5
|
5
6H4-11636-00-00
Piston (0.50Mm O/s)
0.50MM O/S; AP |
6H4-11636-00-00 |
— | ||
| replacement | |||||
|
5
|
5
6H4-11636-09-00 Piston 2 O/s (2Nd O.s.)0.50MM O/S; AP |
6H4-11636-09-00 |
US $70.98 |
||
|
6
|
6
6H4-11610-00-00 Piston Ringset Std (S.t.d.) |
6H4-11610-00-00 |
from US $39.37 |
||
|
6
|
6
6H4-11610-10-00
Piston ring set (1st o.s.)
AP |
6H4-11610-10-00 |
— | ||
|
6
|
6
6H4-11610-20-00 Piston Ringset 2Nd (2Nd O.s.)AP |
6H4-11610-20-00 |
US $88.29 |
||
|
7
|
7
648-11633-00-00 Pin, Piston |
648-11633-00-00 |
from US $8.08 |
||
|
8
|
8
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $2.02 |
||
|
9
|
9
6H4-11641-00-00 Washer, Piston Pin |
6H4-11641-00-00 |
from US $4.58 |
||
|
10
|
10
6H4-11634-01-00 Clip, Piston Pin |
6H4-11634-01-00 |
from US $3.87 |
||
|
11
|
11
6H4-15359-01-94
Housing, Oil Seal
|
6H4-15359-01-94 |
— | ||
| replacement | |||||
|
11
|
11
6H4-15359-02-00
Housing, Oil Seal
|
6H4-15359-02-00 |
— | ||
|
12
|
12
931-02230-96-00 Oil Seal |
931-02230-96-00 |
from US $15.26 |
||
|
13
|
13
6H4-15369-00-00
Gasket, Oil Seal Housing
|
6H4-15369-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6H4-15369-A1-00 Gasket, Oil Seal Housing |
6H4-15369-A1-00 |
from US $6.80 |
||
|
14
|
14
6H4-15396-00-9M Housing, Oil Seal |
6H4-15396-00-9M |
US $43.66 |
||
| replacement | |||||
|
14
|
14
6H4-15396-03-CA Housing, Oil Seal |
6H4-15396-03-CA |
from US $42.93 |
||
|
15
|
15
931-0416M-01-00
Oil Seal
|
931-0416M-01-00 |
— | ||
| replacement | |||||
|
15
|
15
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $5.06 |
||
|
16
|
16
931-0225M-04-00
Oil Seal
|
931-0225M-04-00 |
— | ||
| replacements | |||||
|
16
|
16
931-0225M-28-00 Oil Seal(6H4) |
931-0225M-28-00 |
from US $9.44 |
||
|
16
|
16
93101-25M35-00 Oil Seal |
93101-25M35-00 |
from US $14.17 |
||
|
17
|
17
932-1058M-21-00
O-Ring
|
932-1058M-21-00 |
— | ||
| replacement | |||||
|
17
|
17
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
18
|
18
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
93440-62057-00 Circlip, Outer |
93440-62057-00 |
from US $2.02 |
||
