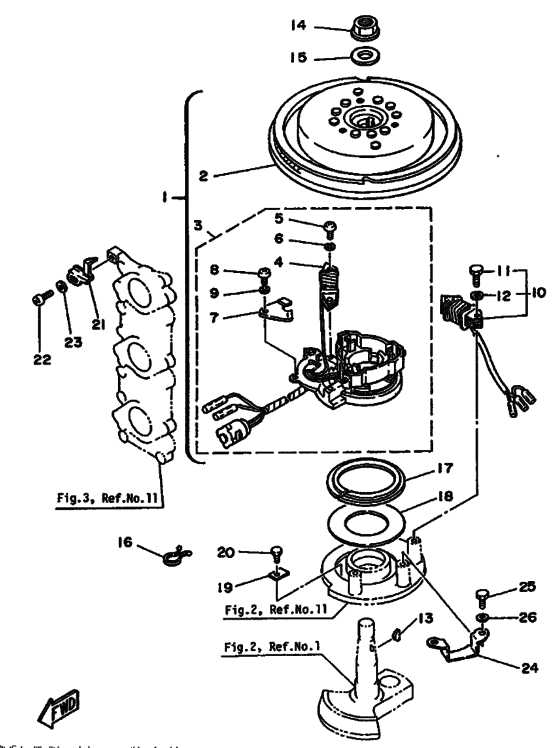

Magneto Diagram Yamaha 40 M(E/O)S/L
- Year
- 1986
- Model
- 40H
- Model code
- 6H4
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-85500-F0-00
C.d.i. Magneto Assy
|
6H4-85500-F0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6H4-85550-F0-00
Rotor Assembly
|
6H4-85550-F0-00 |
— | ||
| replacement | |||||
|
2
|
2
6H4-85550-A0-00
Rotor Assembly
|
6H4-85550-A0-00 |
— | ||
|
3
|
3
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
3
|
3
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
4
|
4
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
5
|
5
97802-06020-00 Screw, Pan Head |
97802-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
6
|
6
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
8
|
8
97802-05008-00 Screw, Pan Head |
97802-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
8
|
8
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
9
|
9
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-81303-A0-00
Lighting Coil Assembly
|
6H4-81303-A0-00 |
— | ||
|
11
|
11
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
13
|
13
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
14
|
14
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
15
|
15
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
16
|
16
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
16
|
16
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
17
|
17
6H4-41611-00-00 Retainer, Magneto Base |
6H4-41611-00-00 |
US $31.03 |
||
| replacement | |||||
|
17
|
17
6H4-41611-10-00 Retainer, Magneto Base |
6H4-41611-10-00 |
from US $15.39 |
||
|
18
|
18
6H4-41618-01-00
Washer, Mageto 1
|
6H4-41618-01-00 |
— | ||
|
19
|
19
6H4-41612-01-00
Retainer, Magneto Base
|
6H4-41612-01-00 |
— | ||
|
20
|
20
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
20
|
20
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
21
|
21
6H4-81332-00-00 Plate, Timing |
6H4-81332-00-00 |
from US $6.38 |
||
|
22
|
22
97803-05010-00 Screw, Pan Head |
97803-05010-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
23
|
23
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
6H4-41613-00-00 Base Friction Plat |
6H4-41613-00-00 |
US $4.71 |
||
|
25
|
25
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
25
|
25
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
26
|
26
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
