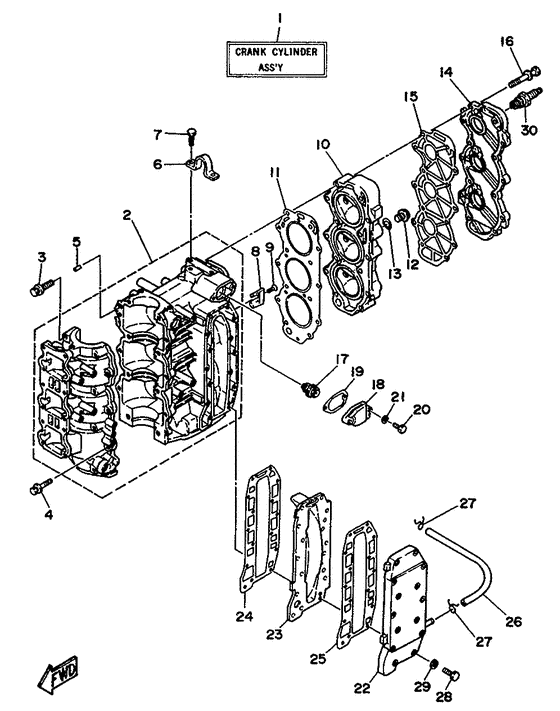

Cylinder. crankcase Diagram Yamaha 40 M(E/O)S/L
- Year
- 1992
- Model
- 40H
- Model code
- 6H4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H4-W0090-41-EJ Crank Cylinder Assy |
6H4-W0090-41-EJ |
US $3,481.06 |
||
| replacement | |||||
|
01
|
01
6H4-W0090-41-1S
Crank Cylinder Assy
|
6H4-W0090-41-1S |
— | ||
|
02
|
02
6H4-15100-11-94
Crankcase Assembly
|
6H4-15100-11-94 |
— | ||
| replacement | |||||
|
02
|
02
6H4-15100-11-00
Crankcase Assy
|
6H4-15100-11-00 |
— | ||
|
03
|
03
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
03
|
03
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
04
|
04
90119-06M13-00 Bolt, With Washer |
90119-06M13-00 |
from US $4.39 |
||
|
05
|
05
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
06
|
06
6H4-11119-00-00 Hanger, Engine |
6H4-11119-00-00 |
US $6.38 |
||
| replacement | |||||
|
06
|
06
6H4-11119-01-00 Hanger, Engine |
6H4-11119-01-00 |
from US $6.38 |
||
|
07
|
07
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
07
|
07
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
07
|
07
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
07
|
07
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
07
|
07
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
07
|
07
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
08
|
08
688-11325-00-00 Anode |
688-11325-00-00 |
from US $9.07 |
||
|
09
|
09
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
09
|
09
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
09
|
09
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
10
|
10
6H4-11111-00-94
Head, Cylinder 1
|
6H4-11111-00-94 |
— | ||
| replacements | |||||
|
10
|
10
6H4-11111-01-1S
Head, Cylinder 1
|
6H4-11111-01-1S |
— | ||
|
10
|
10
6H4-11111-01-94
Head, Cylinder 1
|
6H4-11111-01-94 |
— | ||
|
11
|
11
6H4-11181-AO-00
Gasket, Cylinder Head 1
|
6H4-11181-AO-00 |
— | ||
|
12
|
12
90430-14M00-00
Gasket
|
90430-14M00-00 |
— | ||
|
13
|
13
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
14
|
14
6H4-11191-00-9M
Cover, Cylinder Head 1
|
6H4-11191-00-9M |
— | ||
| replacements | |||||
|
14
|
14
6H4-11191-01-1S
Cover, Cylinder Head 1
|
6H4-11191-01-1S |
— | ||
|
14
|
14
6H4-11191-01-9M
Cover, Cylinder Head 1
|
6H4-11191-01-9M |
— | ||
|
15
|
15
6H4-11193-A1-00 Gasket, Head Cover 1 |
6H4-11193-A1-00 |
from US $13.48 |
||
|
16
|
16
90119-08M29-00 Bolt, With Washer |
90119-08M29-00 |
US $7.93 |
||
| replacement | |||||
|
16
|
16
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
17
|
17
6E5-12411-20-00 Thermostat |
6E5-12411-20-00 |
US $50.01 |
||
| replacement | |||||
|
17
|
17
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.10 |
||
|
18
|
18
6H4-12413-00-9M Cover, Thermostat |
6H4-12413-00-9M |
US $34 |
||
| replacement | |||||
|
18
|
18
6H4-12413-00-1S Cover, Thermostat |
6H4-12413-00-1S |
from US $17.71 |
||
|
19
|
19
6J8-12414-AO-00
Gasket, Cover
|
6J8-12414-AO-00 |
— | ||
|
20
|
20
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
20
|
20
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
22
|
22
6H4-41113-00-9M Outer Cover, Exhaust |
6H4-41113-00-9M |
US $65.35 |
||
| replacement | |||||
|
22
|
22
6H4-41113-00-1S Outer Cover, Exhaust |
6H4-41113-00-1S |
from US $65.35 |
||
|
23
|
23
6H4-41111-10-09
Inner Cover, Exhaust
|
6H4-41111-10-09 |
— | ||
|
24
|
24
6H4-41112-AO-00
Gasket, Exhaust Inner Cover
|
6H4-41112-AO-00 |
— | ||
|
25
|
25
6H4-41114-AO-00
Gasket, Exhaust Outer Cover
|
6H4-41114-AO-00 |
— | ||
|
26
|
26
90445-09M37-00 Hose (L420) |
90445-09M37-00 |
from US $6.52 |
||
| replacements | |||||
|
26
|
26
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
26
|
26
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
27
|
27
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
28
|
28
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
28
|
28
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
30
|
30
947-02002-71-00
Plug, Spark (Ngk Br7Hs-10)
|
947-02002-71-00 |
— | ||
| replacement | |||||
|
30
|
30
BR7-HS000-00-00 Plug, Spark (10 in pack) |
BR7-HS000-00-00 |
US $19.60 |
||
