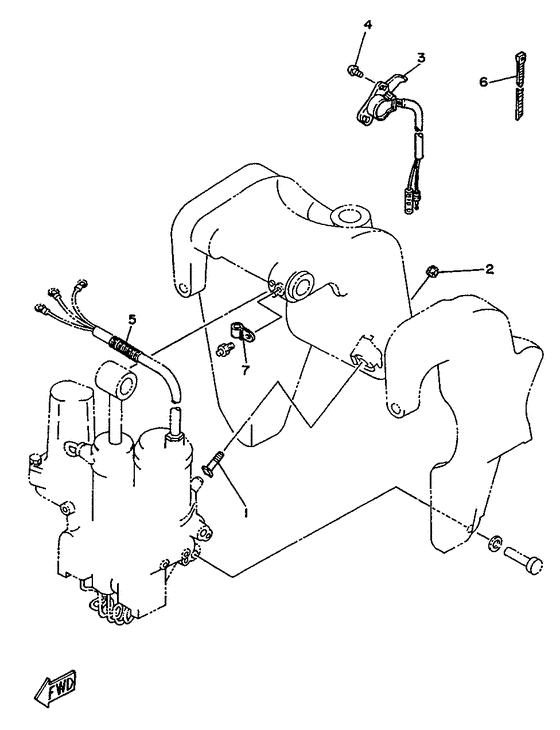

Bracket 5 Diagram Yamaha 40 M(E/O)S/L
- Year
- 1994
- Model
- 40H
- Model code
- 6H4
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-43376-01-00 Bolt, Thrust Receiver |
688-43376-01-00 |
from US $21.39 |
||
|
02
|
02
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
03
|
03
6H5-83672-01-00
Trim Sender
|
6H5-83672-01-00 |
— | ||
|
04
|
04
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
05
|
05
90440-14M00-00 Pipe |
90440-14M00-00 |
from US $2.55 |
||
|
06
|
06
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
06
|
06
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
06
|
06
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
07
|
07
90465-08028-00 Clamp(40hepo) |
90465-08028-00 |
from US $3.40 |
||
