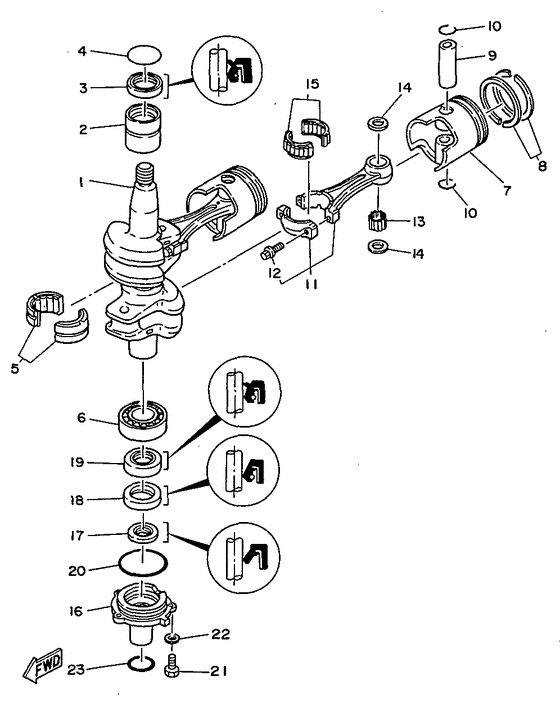

Crankshaft & Piston Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1998
- Model
- 40Q
- Model code
- 6R6
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
676-11411-00-00
Crankshaft
|
676-11411-00-00 |
— | ||
|
02
|
02
93311-632U2-00 Bearing, Cylindrical |
93311-632U2-00 |
from US $84.16 |
||
|
03
|
03
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.78 |
||
|
04
|
04
93210-42159-00 O-Ring |
93210-42159-00 |
from US $5.41 |
||
|
05
|
05
93311-832U4-00 Bearing |
93311-832U4-00 |
from US $84.55 |
||
|
06
|
06
93306-206U4-00 Bearing |
93306-206U4-00 |
from US $56.51 |
||
|
07
|
07
6E9-11631-00-96
Piston (Std)
|
6E9-11631-00-96 |
— | ||
|
07
|
07
6E9-11635-00-00 Piston (0.25Mm O/s)Ap |
6E9-11635-00-00 |
from US $156.12 |
||
|
07
|
07
6E9-11636-00-00
Piston (0.50Mm O/s)
Ap |
6E9-11636-00-00 |
— | ||
|
08
|
08
679-11610-00-00 Piston Ring Set |
679-11610-00-00 |
from US $35.25 |
||
|
08
|
08
679-11610-10-00
Piston Ring Set
Ap |
679-11610-10-00 |
— | ||
|
08
|
08
679-11610-20-00 Piston Ring SetAp |
679-11610-20-00 |
from US $40.01 |
||
|
09
|
09
676-11633-00-00 Pin, Piston |
676-11633-00-00 |
from US $33.62 |
||
|
10
|
10
688-11634-00-00 Clip, Piston Pin |
688-11634-00-00 |
from US $2.36 |
||
|
11
|
11
6E9-11650-01-00 Connecting Rod Assembly |
6E9-11650-01-00 |
from US $261.03 |
||
|
12
|
12
90109-08M61-00 Bolt |
90109-08M61-00 |
US $11.05 |
||
| replacement | |||||
|
12
|
12
90109-08022-00 Bolt |
90109-08022-00 |
from US $10.10 |
||
|
13
|
13
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $0.62 |
||
|
14
|
14
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
15
|
15
93310-730V6-00 Bearing |
93310-730V6-00 |
from US $122.78 |
||
|
16
|
16
6E9-15396-01-5B
Housing, Oil Seal
|
6E9-15396-01-5B |
— | ||
|
17
|
17
931-0416M-01-00
Oil Seal
|
931-0416M-01-00 |
— | ||
| replacement | |||||
|
17
|
17
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $5.06 |
||
|
18
|
18
93101-28M19-00
Oil Seal
|
93101-28M19-00 |
— | ||
|
19
|
19
93102-28M08-00
Oil Seal
|
93102-28M08-00 |
— | ||
|
20
|
20
93210-62269-00 O-Ring |
93210-62269-00 |
from US $6.40 |
||
|
21
|
21
97075-06016-00
Boulon
|
97075-06016-00 |
— | ||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
93210-22M02-00 O-Ring |
93210-22M02-00 |
from US $4.99 |
||
