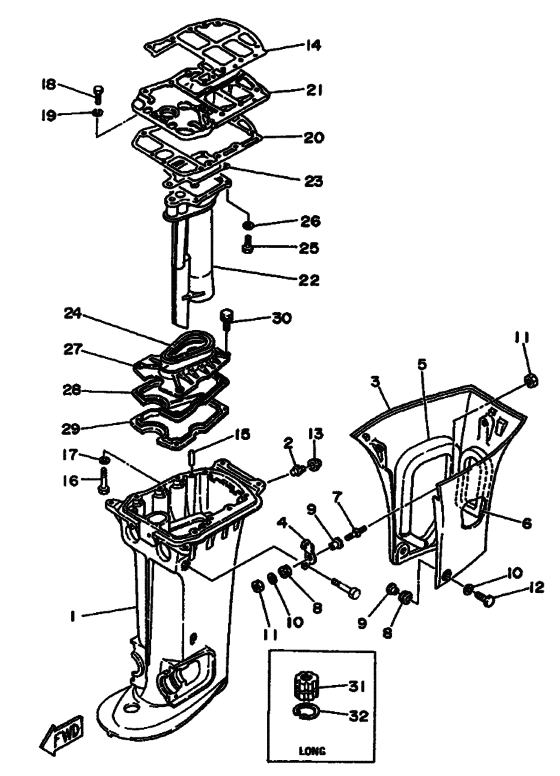

Upper casing Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1992
- Model
- 40Q
- Model code
- 6R6
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A0-45111-01-1D
Casing, Upper
UR |
6A0-45111-01-1D |
— | ||
|
2
|
2
6A0-42761-00-00
Stopper
|
6A0-42761-00-00 |
— | ||
|
4
|
4
6A0-42744-00-00
Stay
|
6A0-42744-00-00 |
— | ||
|
5
|
5
6A0-42768-00-00 Damper |
6A0-42768-00-00 |
from US $46.15 |
||
|
8
|
8
90480-12M11-00 Grommet |
90480-12M11-00 |
from US $3.60 |
||
|
9
|
9
6A0-42758-00-00
Collar
|
6A0-42758-00-00 |
— | ||
|
10
|
10
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
12
|
12
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
13
|
13
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
14
|
14
676-45113-A0-00 Gasket, Upper Casing |
676-45113-A0-00 |
US $21.54 |
||
| replacements | |||||
|
14
|
14
6F5-45113-A1-00 GASKET, UPPER CASING |
6F5-45113-A1-00 |
from US $22.20 |
||
|
14
|
14
6F5-45113-A2-00 GASKET UPPER CASING |
6F5-45113-A2-00 |
from US $22.20 |
||
|
16
|
16
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
16
|
16
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
676-41137-03-94 Guide, Exhaust |
676-41137-03-94 |
US $99.83 |
||
| replacement | |||||
|
21
|
21
676-41137-04-5B Guide, Exhaust |
676-41137-04-5B |
US $99.83 |
||
|
22
|
22
6E9-41131-00-5B
Pipe D'echappement
|
6E9-41131-00-5B |
— | ||
|
23
|
23
676-41133-A0-00 Joint, Pipe D'echappement |
676-41133-A0-00 |
US $13.74 |
||
| replacement | |||||
|
23
|
23
676-41133-A1-00 Gasket, Exhaust Manifold 1 |
676-41133-A1-00 |
from US $8.76 |
||
|
24
|
24
676-45127-00-00 Seal |
676-45127-00-00 |
from US $12.12 |
||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
676-41116-00-5B
Protector
|
676-41116-00-5B |
— | ||
|
28
|
28
676-45128-00-00 Seal 2 |
676-45128-00-00 |
from US $26.49 |
||
|
29
|
29
676-45126-00-5B
Plate, Seal Damper
|
676-45126-00-5B |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
90105-06M01-00 Bolt, Flange |
90105-06M01-00 |
from US $3.02 |
||
|
31
|
31
6A0-45318-00-00 Bushing, Drive Shaft |
6A0-45318-00-00 |
from US $35.99 |
||
