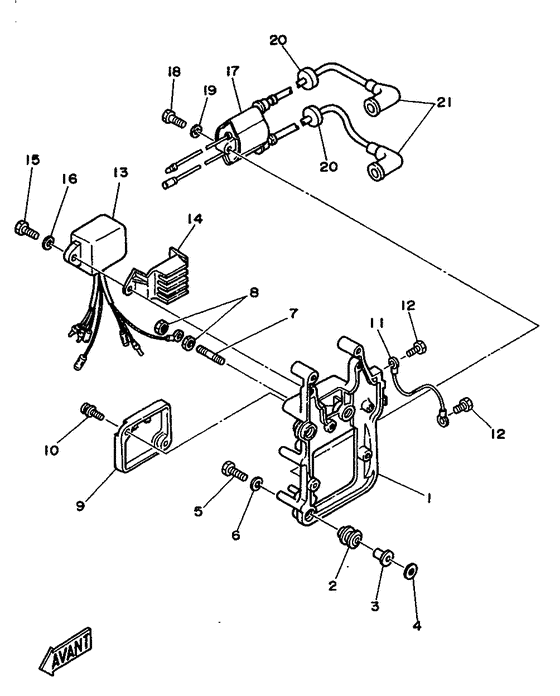

Electrical 1 Diagram Yamaha 40 M(W/E)HS/L
- Year
- 1992
- Model
- 40Q
- Model code
- 6R6
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- France (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R6-85542-00-94
Bracket
|
6R6-85542-00-94 |
— | ||
|
02
|
02
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
02
|
02
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.36 |
||
|
03
|
03
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
03
|
03
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
04
|
04
90201-06M05-00 Washer, Plate |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
04
|
04
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
05
|
05
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
05
|
05
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
07
|
07
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
08
|
08
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
09
|
09
6A0-81916-00-00
Cover, Terminal
|
6A0-81916-00-00 |
— | ||
|
10
|
10
97985-05216-00 Screw, With Washer |
97985-05216-00 |
US $4.11 |
||
| replacement | |||||
|
10
|
10
97980-05216-00 Screw, With Washer |
97980-05216-00 |
from US $3.12 |
||
|
11
|
11
662-82519-00-00 Wire, Earth Lead |
662-82519-00-00 |
from US $7.76 |
||
|
12
|
12
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
689-85540-20-00 C.d.i. Unit Assembly |
689-85540-20-00 |
US $568.81 |
||
| replacement | |||||
|
13
|
13
689-85540-21-00 C.d.i. Unit Assy |
689-85540-21-00 |
US $568.81 |
||
|
14
|
14
6A0-85548-00-00
Holder
|
6A0-85548-00-00 |
— | ||
|
15
|
15
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
689-85570-20-00 Ignition Coil Assembly |
689-85570-20-00 |
US $221.06 |
||
| replacement | |||||
|
17
|
17
689-85570-21-00 Ignition Coil Assy |
689-85570-21-00 |
from US $221.06 |
||
|
18
|
18
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
21
|
21
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
21
|
21
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
