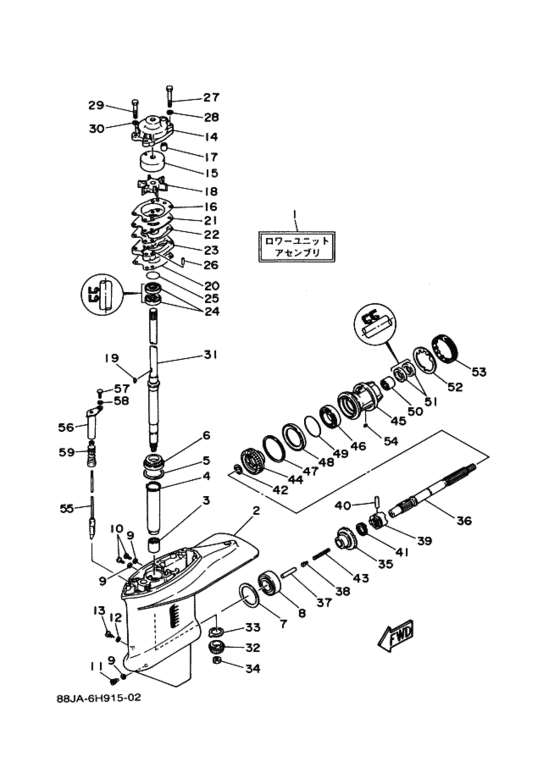

ﾛﾜ-ｹ-ｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 40 M(W/)S/L
- Year
- 1994
- Model
- K40J
- Model code
- 6H9
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 40
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H9-45300-01-4D Lower Unit Assyロワ−ユニツトアセンブリ; ＵＲ ＳＨＯＲＴ ＊１ |
6H9-45300-01-4D |
US $2,230.80 |
||
|
1
|
1
6H9-45300-11-4D Lower Unit Assyロワ−ユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6H9-45300-11-4D |
US $2,230.80 |
||
|
1
|
1
6H9-45300-21-4D
Lower Unit Assy
ロワ−ユニツトアセンブリ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ ＊１ |
6H9-45300-21-4D |
— | ||
|
2
|
2
6H9-45311-10-4D Casing, Lower |
6H9-45311-10-4D |
US $670.56 |
||
|
3
|
3
933-15322-24-00 Bearing |
933-15322-24-00 |
from US $23.02 |
||
|
4
|
4
679-45536-00-00 Sleeve, Drive Shaftスリ−ブ，ドライブシヤフト; |
679-45536-00-00 |
from US $19.20 |
||
|
5
|
5
663-45587-01-10
Shim (T:0.10Mm)
シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45587-01-10 |
— | ||
| replacement | |||||
|
5
|
5
663-45587-01-00 Shim (T:0.10Mm)シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45587-01-00 |
from US $2.02 |
||
|
5
|
5
663-45587-01-12
Shim (T:0.12Mm)
シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45587-01-12 |
— | ||
| replacement | |||||
|
5
|
5
663-45587-10-00 Shim (T:0.12Mm)シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45587-10-00 |
from US $2.02 |
||
|
5
|
5
663-45587-01-15 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45587-01-15 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-20-00 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45587-20-00 |
from US $1.70 |
||
|
5
|
5
663-45587-01-18 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45587-01-18 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-30-00 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45587-30-00 |
from US $2.02 |
||
|
5
|
5
663-45587-01-30 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45587-01-30 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-40-00 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45587-40-00 |
from US $1.70 |
||
|
5
|
5
663-45587-01-40 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45587-01-40 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-50-00 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45587-50-00 |
from US $5.09 |
||
|
5
|
5
663-45587-01-50 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45587-01-50 |
US $5.95 |
||
| replacement | |||||
|
5
|
5
663-45587-60-00 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45587-60-00 |
from US $5.09 |
||
|
6
|
6
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
7
|
7
663-45567-01-10 Shim (T:0.10Mm)シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45567-01-10 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-01-00 Shim (T:0.10Mm)シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45567-01-00 |
from US $5.09 |
||
|
7
|
7
663-45567-01-12 Shim (T:0.12Mm)シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45567-01-12 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-10-00 Shim (T:0.12Mm)シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45567-10-00 |
from US $1.70 |
||
|
7
|
7
663-45567-01-15 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45567-01-15 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-20-00 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45567-20-00 |
from US $2.02 |
||
|
7
|
7
663-45567-01-18 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45567-01-18 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-30-00 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45567-30-00 |
from US $2.02 |
||
|
7
|
7
663-45567-01-30 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45567-01-30 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-40-00 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45567-40-00 |
from US $2.02 |
||
|
7
|
7
663-45567-01-40 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45567-01-40 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-50-00 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45567-50-00 |
from US $5.09 |
||
|
7
|
7
663-45567-01-50 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45567-01-50 |
US $5.95 |
||
| replacement | |||||
|
7
|
7
663-45567-60-00 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45567-60-00 |
from US $5.09 |
||
|
8
|
8
933-32000-03-00 Bearing |
933-32000-03-00 |
from US $24.55 |
||
|
9
|
9
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
9
|
9
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
10
|
10
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
11
|
11
688-45341-00-00
Plug, Drain
プラグ，ドレン; |
688-45341-00-00 |
— | ||
| replacement | |||||
|
11
|
11
688-45341-10-00 Plug, Drainプラグ，ドレン; |
688-45341-10-00 |
from US $7.21 |
||
|
12
|
12
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.70 |
||
|
13
|
13
90149-06M00-00 Screw |
90149-06M00-00 |
from US $7.42 |
||
|
14
|
14
676-44311-00-00 Housing, Water Pumpハウジング，ウオ−タポンプ; |
676-44311-00-00 |
from US $50.29 |
||
|
15
|
15
676-44322-00-00 Insert, Cartridge |
676-44322-00-00 |
from US $15.16 |
||
|
16
|
16
676-44315-A0-00 Joint, Pompe A Eauガスケツト，ウオ−タポンプ; |
676-44315-A0-00 |
US $6.38 |
||
| replacement | |||||
|
16
|
16
676-44315-A1-00 Gasket, Water Pumpガスケツト，ウオ−タポンプ; |
676-44315-A1-00 |
from US $4.72 |
||
|
17
|
17
663-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
663-44366-00-00 |
from US $3.74 |
||
|
18
|
18
6F5-44352-00-00 Impellerインペラ; |
6F5-44352-00-00 |
from US $25.60 |
||
|
19
|
19
90280-04M00-00 Key, Woodruff |
90280-04M00-00 |
from US $5.74 |
||
|
20
|
20
679-44316-A0-00 Joint, Pompe A Eauガスケツト，ウオ−タポンプ; |
679-44316-A0-00 |
from US $5.06 |
||
|
21
|
21
676-44323-00-00 Outer Plate, Cartridgeアウタプレ−ト，カ−トリツジ; |
676-44323-00-00 |
from US $18.52 |
||
|
22
|
22
676-44324-A0-00 Joint |
676-44324-A0-00 |
US $5.67 |
||
| replacement | |||||
|
22
|
22
676-44324-A1-00 Gasket, Cartridge |
676-44324-A1-00 |
from US $4.38 |
||
|
23
|
23
679-44341-00-94 Housing, Water Pumpハウジング，ウオ−タポンプ; |
679-44341-00-94 |
US $64.24 |
||
| replacement | |||||
|
23
|
23
679-44341-00-00 Housing, Water Pumpハウジング，ウオ−タポンプ; |
679-44341-00-00 |
from US $44.44 |
||
|
24
|
24
931-01220-67-00 Oil Sealオイルシ−ル; |
931-01220-67-00 |
from US $8.05 |
||
|
25
|
25
93210-41042-00 O-Ring |
93210-41042-00 |
from US $3.04 |
||
|
26
|
26
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.81 |
||
|
27
|
27
97395-08055-00 Bolt |
97395-08055-00 |
from US $6.66 |
||
| replacement | |||||
|
27
|
27
97095-08055-00 Bolt |
97095-08055-00 |
from US $6.66 |
||
|
28
|
28
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
29
|
29
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
29
|
29
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
29
|
29
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
30
|
30
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
31
|
31
679-45501-00-00 Drive Shaft Compドライブシヤフトコンプリ−ト; ＵＲ ＳＨＯＲＴ |
679-45501-00-00 |
from US $358.73 |
||
|
31
|
31
679-45501-10-00 Drive Shaft Compドライブシヤフトコンプリ−ト; ＵＲ ＬＯＮＧ |
679-45501-10-00 |
from US $253.48 |
||
|
31
|
31
6A0-45501-20-00 Drive Shaft Compドライブシヤフトコンプリ−ト; ＵＲ ＳＵＰＥＲ ＬＯＮＧ |
6A0-45501-20-00 |
US $371.01 |
||
|
32
|
32
6H9-45551-00-00 Pinion (13T) |
6H9-45551-00-00 |
from US $85.84 |
||
|
33
|
33
663-45552-00-00 Bearing, Plainベアリング，プレ−ン; |
663-45552-00-00 |
from US $6.80 |
||
|
34
|
34
90170-12138-00 Nut |
90170-12138-00 |
from US $8.05 |
||
|
35
|
35
679-45560-00-00 Gear 1 (26T)ギヤ; |
679-45560-00-00 |
from US $108.80 |
||
|
36
|
36
679-45611-01-00 Shaft, Propellerシヤフト，プロペラ; |
679-45611-01-00 |
from US $235.64 |
||
|
37
|
37
676-45635-00-00 Plunger, Shiftプランジヤ，シフト; |
676-45635-00-00 |
from US $12.46 |
||
|
38
|
38
663-45634-00-00 Slide, Shiftスライド，シフト; |
663-45634-00-00 |
from US $8.13 |
||
|
39
|
39
663-45631-01-00 Clutch, Dogクラツチ，ドツグ; |
663-45631-01-00 |
from US $85.11 |
||
|
40
|
40
90250-06023-00 Pin, Straight |
90250-06023-00 |
from US $3.89 |
||
|
41
|
41
663-45633-00-00 Ring, Cross Pinリング，クロスピン; |
663-45633-00-00 |
from US $1.70 |
||
|
42
|
42
90201-22429-00 Washer, Plate |
90201-22429-00 |
from US $5.06 |
||
|
43
|
43
90501-16M01-00 Spring, Compression |
90501-16M01-00 |
from US $3.04 |
||
|
44
|
44
679-45571-00-00 Gear 2 (26T)ギヤ; |
679-45571-00-00 |
from US $150.59 |
||
|
45
|
45
679-45331-00-94 Housing, Bearingハウジング，ベアリング; |
679-45331-00-94 |
US $143.69 |
||
| replacement | |||||
|
45
|
45
679-45331-00-00 HOUSING BEARINGハウジング，ベアリング; |
679-45331-00-00 |
from US $86.86 |
||
|
46
|
46
933-06007-02-00 Bearing |
933-06007-02-00 |
from US $23.90 |
||
|
47
|
47
663-45577-01-10 Shim (T:0.10Mm)シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45577-01-10 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-01-00 Shim (T:0.10Mm)シム ; Ｔ：０．１０ＭＭ; ＵＲ |
663-45577-01-00 |
from US $5.95 |
||
|
47
|
47
663-45577-01-12 Shim (T:0.12Mm)シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45577-01-12 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-10-00 Shim (T:0.12Mm)シム ; Ｔ：０．１２ＭＭ; ＵＲ |
663-45577-10-00 |
from US $5.09 |
||
|
47
|
47
663-45577-01-15 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45577-01-15 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-20-00 Shim (T:0.15Mm)シム ; Ｔ：０．１５ＭＭ; ＵＲ |
663-45577-20-00 |
from US $2.02 |
||
|
47
|
47
663-45577-01-18 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45577-01-18 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-30-00 Shim (T:0.18Mm)シム ; Ｔ：０．１８ＭＭ; ＵＲ |
663-45577-30-00 |
from US $5.09 |
||
|
47
|
47
663-45577-01-30 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45577-01-30 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-40-00 Shim (T:0.30Mm)シム ; Ｔ：０．３０ＭＭ; ＵＲ |
663-45577-40-00 |
from US $5.95 |
||
|
47
|
47
663-45577-01-40 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45577-01-40 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-50-00 Shim (T:0.40Mm)シム ; Ｔ：０．４０ＭＭ; ＵＲ |
663-45577-50-00 |
from US $2.02 |
||
|
47
|
47
663-45577-01-50 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45577-01-50 |
US $5.95 |
||
| replacement | |||||
|
47
|
47
663-45577-60-00 Shim (T:0.50Mm)シム ; Ｔ：０．５０ＭＭ; ＵＲ |
663-45577-60-00 |
from US $2.02 |
||
|
48
|
48
663-45576-00-00 Washer, Thrust 2ワツシヤ，スラスト; |
663-45576-00-00 |
from US $5.95 |
||
|
49
|
49
93210-66M98-00 O-RingＯ−リング; |
93210-66M98-00 |
from US $7.36 |
||
|
50
|
50
933-17222-04-00 Bearing |
933-17222-04-00 |
from US $11.23 |
||
|
51
|
51
931-01220-67-00 Oil Sealオイルシ−ル; |
931-01220-67-00 |
from US $8.05 |
||
|
52
|
52
90214-48M03-00 Washer, Claw |
90214-48M03-00 |
from US $7.51 |
||
|
53
|
53
697-45384-02-00 Nut |
697-45384-02-00 |
from US $17.52 |
||
|
54
|
54
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
55
|
55
679-44150-00-00 Shift Cam Assemblyシフトカムアセンブリ; ＵＲ ＳＨＯＲＴ |
679-44150-00-00 |
from US $73.01 |
||
|
55
|
55
679-44150-10-00 Shift Cam Assemblyシフトカムアセンブリ; ＵＲ ＬＯＮＧ |
679-44150-10-00 |
from US $76.08 |
||
|
55
|
55
6A0-44150-20-00 Shift Cam Assyシフトカムアセンブリ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ |
6A0-44150-20-00 |
US $101.82 |
||
|
56
|
56
679-44152-00-00 Bushing, Shift Camブツシング，シフトカム; |
679-44152-00-00 |
from US $11.33 |
||
|
57
|
57
97080-06018-00 Bolt (Fj0)ボルト; |
97080-06018-00 |
from US $4.11 |
||
|
58
|
58
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
59
|
59
650-44147-00-00 Boot, Shift Rodブ−ツ，シフトロツド; |
650-44147-00-00 |
from US $6.38 |
||
