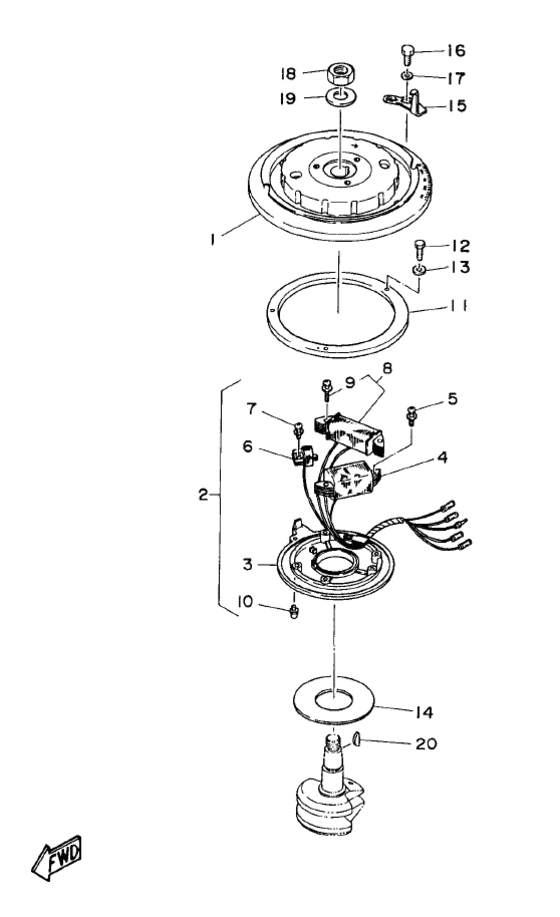

Generator Diagram Yamaha 48 MS/LH
- Year
- 1997
- Model
- E48C
- Model code
- 696
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 48
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
696-85550-F1-00 Rotor Assy |
696-85550-F1-00 |
US $868.56 |
||
|
2
|
2
696-85560-F0-00 Base Assy |
696-85560-F0-00 |
from US $648.12 |
||
|
3
|
3
696-85561-F0-00 Base, Magneto |
696-85561-F0-00 |
from US $197.57 |
||
|
4
|
4
6E7-85520-70-00 Coil, Charge |
6E7-85520-70-00 |
from US $179.61 |
||
|
5
|
5
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
6
|
6
6E7-85580-70-00 Coil, Pulser |
6E7-85580-70-00 |
from US $79.78 |
||
|
7
|
7
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
696-81303-F0-00 Lighting Coil Assy |
696-81303-F0-00 |
from US $123.79 |
||
|
9
|
9
90159-05040-00 Screw, With Washer |
90159-05040-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
10
|
10
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
11
|
11
663-41612-00-00 Retainer, Magneto Base |
663-41612-00-00 |
from US $79.72 |
||
|
12
|
12
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
12
|
12
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
663-41619-00-00 Washer, Magneto |
663-41619-00-00 |
from US $5.40 |
||
|
15
|
15
663-81332-01-00 Plate, Timing |
663-81332-01-00 |
from US $6.71 |
||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
19
|
19
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
20
|
20
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
