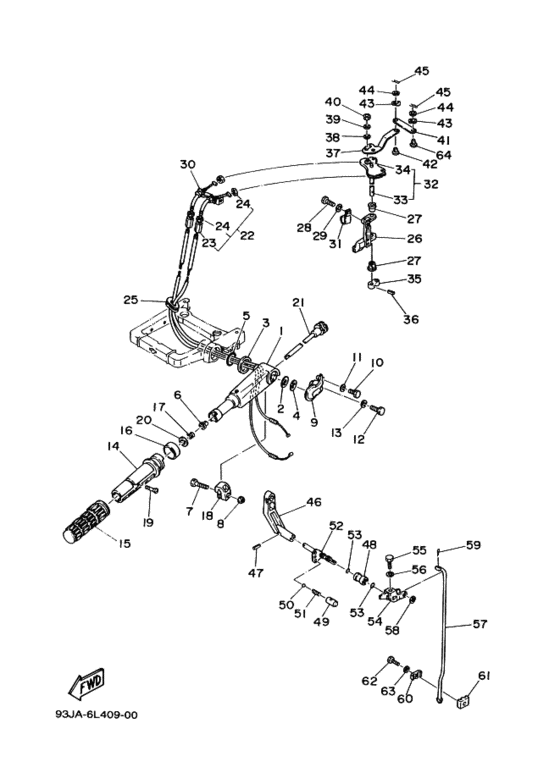

ｺﾝﾄﾛ-ﾙ Diagram Yamaha 5 MHS/L
- Year
- 1993
- Model
- 5D
- Model code
- 6L4
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
647-42111-02-EK
Handle, Steering
ハンドル，ステアリング; |
647-42111-02-EK |
— | ||
|
2
|
2
90560-12075-00 Spacer |
90560-12075-00 |
from US $4.60 |
||
|
3
|
3
90560-30085-00 Spacer |
90560-30085-00 |
US $6.80 |
||
|
4
|
4
90560-12141-00 Spacer |
90560-12141-00 |
US $3.54 |
||
|
5
|
5
93210-25070-00 O-Ring (168) |
93210-25070-00 |
from US $2.98 |
||
| replacement | |||||
|
5
|
5
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
6
|
6
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
7
|
7
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
8
|
8
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
|
9
|
9
677-42112-00-EK
Handle, Steering
|
677-42112-00-EK |
— | ||
|
10
|
10
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
973-95060-40-00
Bolt (682)
|
973-95060-40-00 |
— | ||
| replacement | |||||
|
12
|
12
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
647-42119-02-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
647-42119-02-00 |
US $21.68 |
||
|
15
|
15
647-42177-00-00 Rubber, Handleラバ−，ハンドル; |
647-42177-00-00 |
US $15.16 |
||
|
16
|
16
6L4-42137-00-00
Indicator, Throttle
インジケ−タ，スロツトル; |
6L4-42137-00-00 |
— | ||
|
17
|
17
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
18
|
18
656-42126-01-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
656-42126-01-00 |
from US $12.33 |
||
|
19
|
19
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
19
|
19
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
20
|
20
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.18 |
||
|
21
|
21
655-42138-01-00 Lever, Throttle |
655-42138-01-00 |
from US $13.14 |
||
|
22
|
22
677-26301-02-00 Throttle Cable Assyスロツトルケ−ブルアセンブリ; |
677-26301-02-00 |
from US $16.16 |
||
|
23
|
23
90179-06045-00 Nut．ナツト; |
90179-06045-00 |
US $4.39 |
||
|
24
|
24
90170-06011-00 Nut, Hexagon．ナツト; |
90170-06011-00 |
from US $2.16 |
||
|
25
|
25
90480-16M03-00 Grommet |
90480-16M03-00 |
US $5.81 |
||
|
26
|
26
677-41661-00-94 Bracket 1ブラケツト; |
677-41661-00-94 |
from US $10.77 |
||
|
27
|
27
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
28
|
28
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
28
|
28
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
30
|
30
655-14497-01-00 Stay, Throttle Wireステ−，スロツトルワイヤ; |
655-14497-01-00 |
US $14.31 |
||
|
31
|
31
90465-06020-00
Clamp
|
90465-06020-00 |
— | ||
|
32
|
32
655-41638-01-00 Pulleyプーリ; |
655-41638-01-00 |
from US $29.51 |
||
|
33
|
33
655-41635-00-00
Shaft, Link Connecting
．シヤフト，リンクコネクテイング; |
655-41635-00-00 |
— | ||
|
34
|
34
650-41641-00-00
Boss, Lever
．ボス，レバ−; |
650-41641-00-00 |
— | ||
|
35
|
35
655-48541-00-EK
Stay
ステー; |
655-48541-00-EK |
— | ||
|
36
|
36
91690-30216-00 Pin, Spring |
91690-30216-00 |
from US $5.10 |
||
|
37
|
37
677-41631-00-00 Lever, Magneto Controlレバ−，マグネツトコントロ−ル; |
677-41631-00-00 |
US $9.78 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
39
|
39
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
41
|
41
677-41632-00-00 Lever, Magneto Controlレバ−，マグネツトコントロ−ル; |
677-41632-00-00 |
US $4.68 |
||
|
42
|
42
647-41652-00-00 Set Pinセツトピン; |
647-41652-00-00 |
US $7.65 |
||
|
43
|
43
90206-05005-00 Washer, Waveワツシヤ，ウエイブ; |
90206-05005-00 |
from US $2.55 |
||
|
44
|
44
92990-05200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-05200-00 |
from US $1.56 |
||
|
45
|
45
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
46
|
46
655-44111-02-EK
Handle, Gear Shift
ハンドル，ギヤシフト; |
655-44111-02-EK |
— | ||
|
47
|
47
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
48
|
48
655-44122-03-00 Bushing, Shift Rod Leverブツシング，シフトロツドレバ−; |
655-44122-03-00 |
US $12.47 |
||
|
49
|
49
655-42715-00-00 Bushingブツシング; |
655-42715-00-00 |
US $5.67 |
||
|
50
|
50
93505-16024-00 Ball, Steel |
93505-16024-00 |
from US $2.45 |
||
|
51
|
51
90501-12274-00 1090 Spring, Compression |
90501-12274-00 |
from US $1.98 |
||
|
52
|
52
677-44119-00-00 Shaft, Change |
677-44119-00-00 |
US $58.58 |
||
|
53
|
53
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
| replacement | |||||
|
53
|
53
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
54
|
54
655-44121-01-00 Lever, Shift Rodレバ−，シフトロツド; |
655-44121-01-00 |
US $10.20 |
||
|
55
|
55
97395-05020-00 Bolt |
97395-05020-00 |
from US $0.52 |
||
|
56
|
56
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
57
|
57
655-44143-01-00 Rod, Shiftロツド，シフト; |
655-44143-01-00 |
US $20.83 |
||
|
58
|
58
92990-06200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-06200-00 |
from US $1.18 |
||
|
59
|
59
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
60
|
60
616-44145-01-00 Connector, Shift Rod 1コネクタ，シフトロツド; |
616-44145-01-00 |
US $12.61 |
||
|
61
|
61
616-44146-01-00 Connector, Shift Rod 2コネクタ，シフトロツド; |
616-44146-01-00 |
US $12.61 |
||
|
62
|
62
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
62
|
62
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
63
|
63
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
64
|
64
90240-05004-00 Pin, Clevis |
90240-05004-00 |
from US $4.39 |
||
