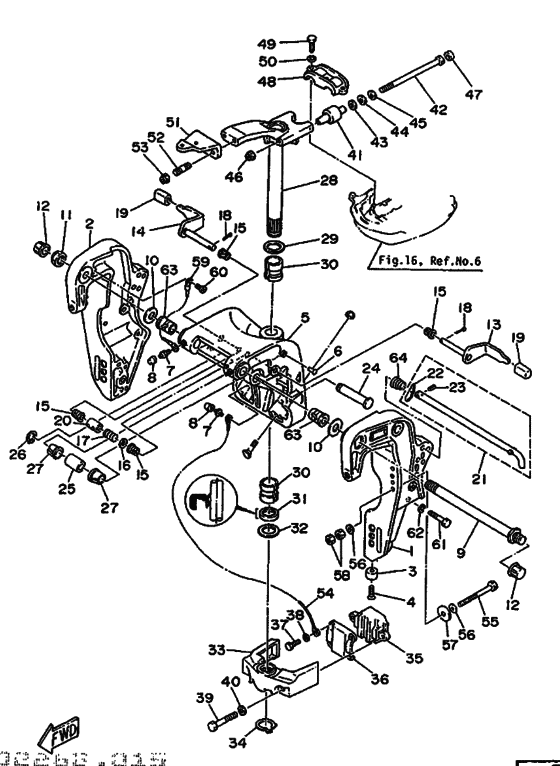

Bracket Diagram Yamaha 50 EMTOS/L
- Year
- 1987
- Model
- 50D
- Model code
- 6H5
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-02-EJ
Bracket, Clamp
|
697-43111-02-EJ |
— | ||
|
2
|
2
697-43112-02-EJ
Bracket, Clamp
|
697-43112-02-EJ |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
688-45251-01-00 Anode |
688-45251-01-00 |
from US $12.89 |
||
|
4
|
4
92180-06025-00 Screw, Oval Head |
92180-06025-00 |
US $2.69 |
||
| replacement | |||||
|
4
|
4
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
5
|
5
697-43311-01-EJ
Bracket, Swivel
|
697-43311-01-EJ |
— | ||
|
6
|
6
90269-03010-00 Rivet |
90269-03010-00 |
from US $3.40 |
||
|
7
|
7
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
7
|
7
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
8
|
8
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
9
|
9
688-43131-02-00 Bolt, Clamp Bracket |
688-43131-02-00 |
US $106.38 |
||
| replacement | |||||
|
9
|
9
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
10
|
10
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
11
|
11
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
11
|
11
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
12
|
12
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
12
|
12
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
13
|
13
688-43181-02-00 Lever, Tilt StopLever, tilt stop 1 |
688-43181-02-00 |
US $59.41 |
||
| replacement | |||||
|
13
|
13
688-43181-04-00 Lever, Tilt Stop |
688-43181-04-00 |
from US $35.02 |
||
|
14
|
14
688-43185-02-00 Lever, Tilt StopLever, tilt stop 2 |
688-43185-02-00 |
US $50.29 |
||
| replacement | |||||
|
14
|
14
688-43185-04-00 Lever, Tilt Stop |
688-43185-04-00 |
from US $50.29 |
||
|
15
|
15
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
16
|
16
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
17
|
17
90506-12M33-00
Spring, Tension
|
90506-12M33-00 |
— | ||
|
18
|
18
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
18
|
18
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
19
|
19
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
20
|
20
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.15 |
||
|
21
|
21
697-43160-00-00 Tilt Rod Assembly |
697-43160-00-00 |
from US $37.99 |
||
|
22
|
22
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
23
|
23
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
24
|
24
6E5-43126-00-00 Pin, Upper Shock Mount |
6E5-43126-00-00 |
US $23.94 |
||
| replacement | |||||
|
24
|
24
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
25
|
25
90386-18M21-00 Bush |
90386-18M21-00 |
from US $7.36 |
||
|
26
|
26
93410-14M07-00 Circlip, S-Type |
93410-14M07-00 |
from US $4.53 |
||
|
27
|
27
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
28
|
28
6H4-42510-00-EJ
Steering Bracket Assy
|
6H4-42510-00-EJ |
— | ||
| replacement | |||||
|
28
|
28
6H4-42510-09-EJ
Steering Bracket Assy
|
6H4-42510-09-EJ |
— | ||
|
29
|
29
90201-30420-00 Washer, Plate |
90201-30420-00 |
US $7.65 |
||
| replacement | |||||
|
29
|
29
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
30
|
30
90386-30048-00 Bush |
90386-30048-00 |
from US $7.51 |
||
|
31
|
31
93109-30M03-00 Oil Seal |
93109-30M03-00 |
from US $12.18 |
||
|
32
|
32
90201-31418-00 Washer, Plate |
90201-31418-00 |
from US $7.93 |
||
|
33
|
33
6H4-44551-01-EJ
Housing, Lower Mount Rubber
|
6H4-44551-01-EJ |
— | ||
| replacement | |||||
|
33
|
33
6H4-44551-02-EJ
Hsg Lower M0Unt
|
6H4-44551-02-EJ |
— | ||
|
34
|
34
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
35
|
35
6H4-44557-00-00 Mount Damper, Lower FrontU.R. |
6H4-44557-00-00 |
from US $74.61 |
||
|
35
|
35
6H4-44557-10-00 Mount Damper, Lower FrontU.R. |
6H4-44557-10-00 |
from US $74.61 |
||
|
36
|
36
6H4-44553-00-00 Cover, Lower Mount |
6H4-44553-00-00 |
US $78.34 |
||
| replacement | |||||
|
36
|
36
6H4-44553-01-00 Cover, Lower Mount |
6H4-44553-01-00 |
from US $71.39 |
||
|
37
|
37
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
37
|
37
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
37
|
37
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
38
|
38
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
39
|
39
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
39
|
39
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
40
|
40
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
41
|
41
6H4-44514-00-00 Mount Damper, Upper Side |
6H4-44514-00-00 |
from US $43.11 |
||
|
42
|
42
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.82 |
||
|
43
|
43
90201-18M98-00
Washer, Plate
|
90201-18M98-00 |
— | ||
|
44
|
44
90202-15M30-00
Washer, Plate
|
90202-15M30-00 |
— | ||
|
45
|
45
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $5.13 |
||
|
46
|
46
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
46
|
46
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.66 |
||
|
47
|
47
663-44533-00-00 Damper, Upper Mount Rubber |
663-44533-00-00 |
from US $5.38 |
||
|
48
|
48
6H4-44511-00-EJ
Cover, Upper Mount
|
6H4-44511-00-EJ |
— | ||
| replacement | |||||
|
48
|
48
6H4-44511-00-00
Cover, Upper Mount
|
6H4-44511-00-00 |
— | ||
|
49
|
49
97375-08035-00 Bolt |
97375-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
49
|
49
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
49
|
49
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
50
|
50
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
51
|
51
6H5-48511-50-EJ
Hook, Steering
|
6H5-48511-50-EJ |
— | ||
| replacement | |||||
|
51
|
51
6H5-48511-51-00
Hook, Steering
|
6H5-48511-51-00 |
— | ||
|
52
|
52
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
52
|
52
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
52
|
52
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
53
|
53
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
53
|
53
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
54
|
54
6H5-82117-00-00
Wire, Lead
|
6H5-82117-00-00 |
— | ||
|
55
|
55
90101-12H65-00
Bolt
|
90101-12H65-00 |
— | ||
|
56
|
56
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
57
|
57
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
58
|
58
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
59
|
59
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
60
|
60
97890-06012-00 Screw, Pan Head |
97890-06012-00 |
US $1.56 |
||
| replacement | |||||
|
60
|
60
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
61
|
61
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
61
|
61
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
61
|
61
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
62
|
62
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
63
|
63
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
64
|
64
90502-20M03-00 Spring, Conical(50DETO MODEL) |
90502-20M03-00 |
from US $6.80 |
||
