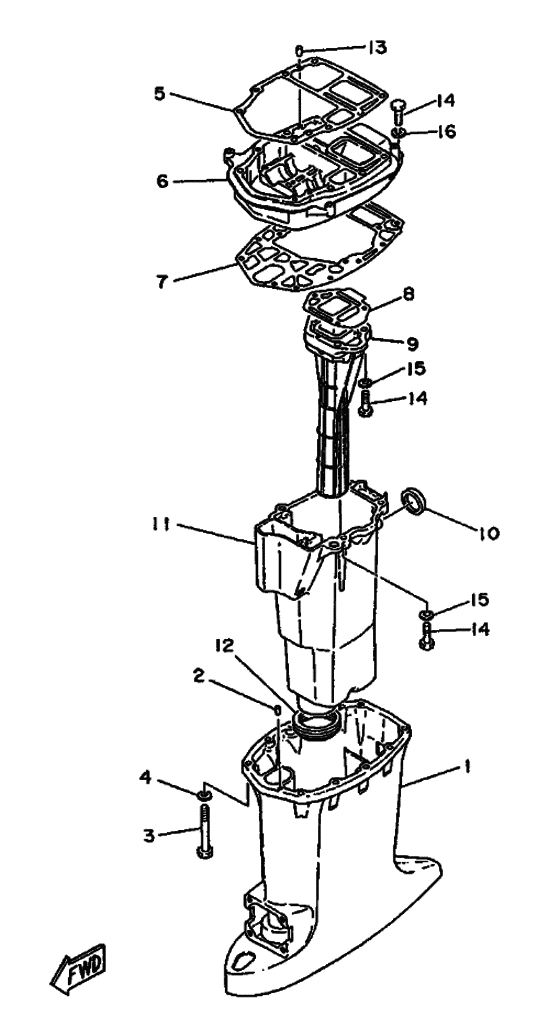

Upper casing Diagram Yamaha 50 EMTOS/L
- Year
- 1987
- Model
- 50D
- Model code
- 6H5
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-45111-00-EJ
Casing, Upper
U.R. |
6H4-45111-00-EJ |
— | ||
|
1
|
1
6H4-45111-10-EJ
Casing, Upper
U.R. |
6H4-45111-10-EJ |
— | ||
|
2
|
2
93606-12919-00
Pin, Dowel
|
93606-12919-00 |
— | ||
|
3
|
3
90101-08080-00
Bolt
|
90101-08080-00 |
— | ||
| replacement | |||||
|
3
|
3
97280-08580-00
Bolt, Flat Head
|
97280-08580-00 |
— | ||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
5
|
5
6H4-45113-00-00 Gasket, Upper Casing |
6H4-45113-00-00 |
US $22.53 |
||
| replacement | |||||
|
5
|
5
6H4-45113-A0-00 Gasket, Upper Casing |
6H4-45113-A0-00 |
from US $8.76 |
||
|
6
|
6
6H4-41137-00-94
Guide, Exhaust
|
6H4-41137-00-94 |
— | ||
|
7
|
7
6H4-45114-00-00 Gasket, Upper Casing |
6H4-45114-00-00 |
US $20.40 |
||
| replacement | |||||
|
7
|
7
6H4-45114-A1-00 Gasket, Upper Casing |
6H4-45114-A1-00 |
from US $10.84 |
||
|
8
|
8
6H4-41134-00-00 Gasket, Exhaust Manifold |
6H4-41134-00-00 |
US $13.88 |
||
| replacement | |||||
|
8
|
8
6H4-41134-A0-00 Gasket, Exhaust Manifold |
6H4-41134-A0-00 |
from US $5.45 |
||
|
9
|
9
6H5-41131-00-9M Manifold, Ext. 1 |
6H5-41131-00-9M |
US $132.22 |
||
| replacement | |||||
|
9
|
9
6H5-41131-00-CA Manifold, Ext |
6H5-41131-00-CA |
from US $140.02 |
||
|
10
|
10
6H4-41133-00-00 Gasket, Exhaust Manifold 1 |
6H4-41133-00-00 |
from US $4.82 |
||
|
11
|
11
6H4-14711-00-9M
Muffler L
U.R. |
6H4-14711-00-9M |
— | ||
| replacement | |||||
|
11
|
11
6H4-14711-00-5B
Muffler
U.R. |
6H4-14711-00-5B |
— | ||
|
11
|
11
6H4-14711-10-9M Muffler 1U.R. |
6H4-14711-10-9M |
US $167.81 |
||
| replacement | |||||
|
11
|
11
6H4-14711-10-CA JET (#62)U.R. |
6H4-14711-10-CA |
from US $167.81 |
||
|
12
|
12
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
13
|
13
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
14
|
14
97375-08030-00 Bolt, Hexagon |
97375-08030-00 |
US $2.69 |
||
| replacement | |||||
|
14
|
14
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
