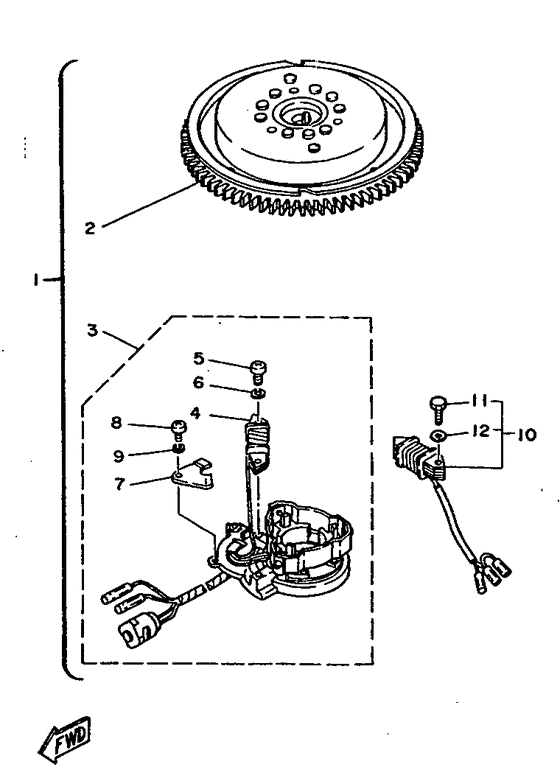

C.d.i. magneto (50DE/50DET MODEL) Diagram Yamaha 50 EMTOS/L
- Year
- 1984
- Model
- 50D
- Model code
- 6H5
- Year
- 1984
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H4-85500-A0-00
C.d.i. Magneto Assy
|
6H4-85500-A0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6H4-85550-A0-00
Rotor Assembly
|
6H4-85550-A0-00 |
— | ||
|
03
|
03
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
03
|
03
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
04
|
04
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
05
|
05
97802-06020-00 Screw, Pan Head |
97802-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
06
|
06
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
07
|
07
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
08
|
08
97802-05008-00 Screw, Pan Head |
97802-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
08
|
08
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
08
|
08
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
09
|
09
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-81303-A0-00
Lighting Coil Assembly
|
6H4-81303-A0-00 |
— | ||
|
11
|
11
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
