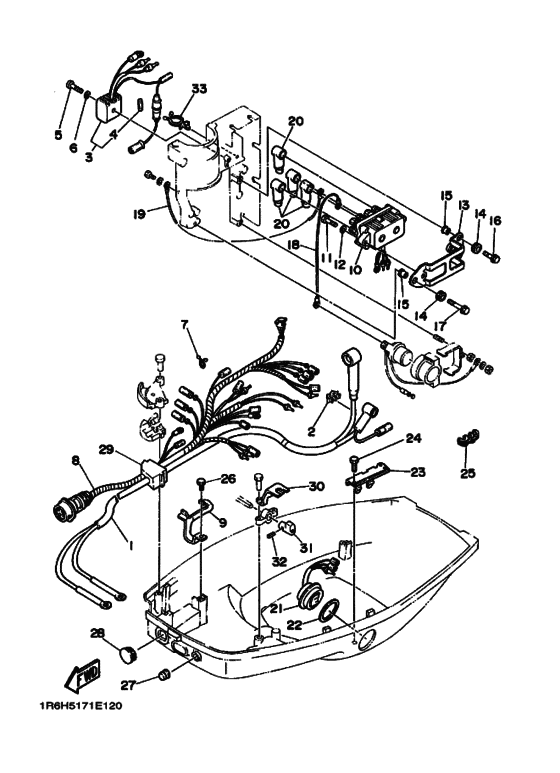

Electrical 2 Diagram Yamaha 50 EMTOS/L
- Year
- 1994
- Model
- 50D
- Model code
- 6H5
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Europe (050)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-82105-01-00 Battery Cable |
6H4-82105-01-00 |
US $126.28 |
||
| replacements | |||||
|
1
|
1
6H4-82105-03-00 Battery Cable |
6H4-82105-03-00 |
US $126.28 |
||
|
1
|
1
6E7-82105-12-00 Battery Cable |
6E7-82105-12-00 |
from US $91.22 |
||
|
1
|
1
6H4-82105-04-00 Battery Cable |
6H4-82105-04-00 |
US $135.68 |
||
|
2
|
2
90464-07M20-00 Clamp |
90464-07M20-00 |
US $1.98 |
||
|
3
|
3
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
3
|
3
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
3
|
3
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
4
|
4
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
4
|
4
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
5
|
5
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
5
|
5
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
6
|
6
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
8
|
8
6H4-82590-22-00 Wire Harness Assembly |
6H4-82590-22-00 |
US $223.82 |
||
|
9
|
9
6H4-82588-00-00
Plate
|
6H4-82588-00-00 |
— | ||
|
10
|
10
6H1-81950-00-00
Relay Assy
|
6H1-81950-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6H1-81950-01-00 Relay Assy |
6H1-81950-01-00 |
from US $137.47 |
||
|
11
|
11
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
6H4-81945-20-00 Plate, Switch Fitting |
6H4-81945-20-00 |
from US $12.62 |
||
|
14
|
14
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $5.13 |
||
|
15
|
15
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
16
|
16
90105-06M15-00 Bolt, Flange |
90105-06M15-00 |
from US $2.77 |
||
|
17
|
17
90105-06M16-00 Bolt, Flange |
90105-06M16-00 |
from US $2.16 |
||
|
18
|
18
6H5-81949-00-00 Wire, Lead |
6H5-81949-00-00 |
US $20.54 |
||
|
19
|
19
61A-81949-00-00 Wire, Lead |
61A-81949-00-00 |
US $18.42 |
||
| replacements | |||||
|
19
|
19
6H2-81949-11-00 Wire, Lead |
6H2-81949-11-00 |
US $18.42 |
||
|
19
|
19
6H2-81949-12-00 Wire, Lead |
6H2-81949-12-00 |
US $22.37 |
||
|
20
|
20
682-82119-01-00 Cover, Lead Wire |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
20
|
20
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
21
|
21
6H1-82563-00-00 Trim & Tilt Switch Assembly |
6H1-82563-00-00 |
US $143.69 |
||
| replacement | |||||
|
21
|
21
6H1-82563-01-00 Trim & Tilt Switch Assy |
6H1-82563-01-00 |
from US $79.31 |
||
|
22
|
22
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
23
|
23
6E5-83614-01-00 Bracket |
6E5-83614-01-00 |
from US $9.78 |
||
|
24
|
24
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
25
|
25
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
27
|
27
6H4-42725-00-00 Grommet |
6H4-42725-00-00 |
from US $2.41 |
||
|
28
|
28
676-42726-00-00 Grommet |
676-42726-00-00 |
from US $3.97 |
||
|
29
|
29
6H4-42724-20-00 Grommet |
6H4-42724-20-00 |
US $8.78 |
||
|
30
|
30
6H4-82554-00-00
Stay, Neutral Switch
|
6H4-82554-00-00 |
— | ||
|
31
|
31
6H4-44173-01-00 Lever, Shift Control |
6H4-44173-01-00 |
from US $4.99 |
||
|
32
|
32
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
33
|
33
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
