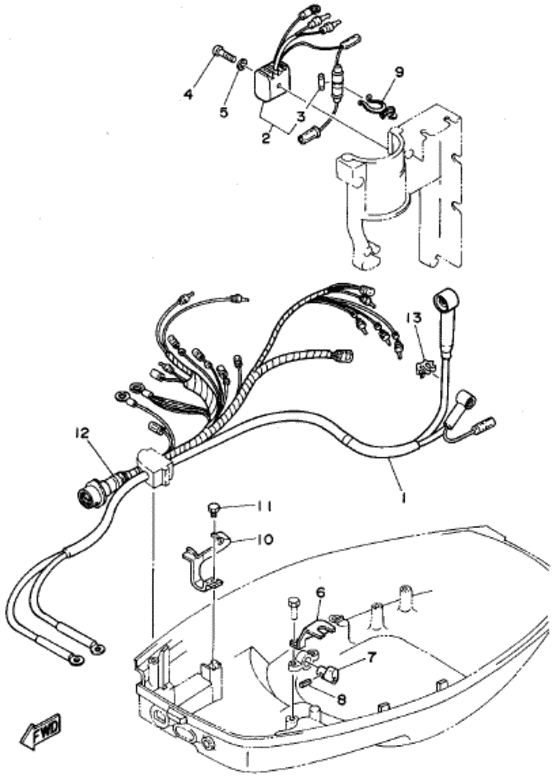

Electrical Diagram Yamaha 50 M(W/E/T/H/O)S/L
- Year
- 1994
- Model
- 50
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-82105-01-00 Battery Cable |
6H4-82105-01-00 |
US $126.28 |
||
| replacements | |||||
|
1
|
1
6H4-82105-03-00 Battery Cable |
6H4-82105-03-00 |
US $126.28 |
||
|
1
|
1
6E7-82105-12-00 Battery Cable |
6E7-82105-12-00 |
from US $91.22 |
||
|
1
|
1
6H4-82105-04-00 Battery Cable |
6H4-82105-04-00 |
US $135.68 |
||
|
2
|
2
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
2
|
2
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
2
|
2
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
3
|
3
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
3
|
3
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
4
|
4
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
5
|
5
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
6H4-82554-00-00
Stay, Neutral Switch
|
6H4-82554-00-00 |
— | ||
|
7
|
7
6H4-44173-01-00 Lever, Shift Control |
6H4-44173-01-00 |
from US $4.99 |
||
|
8
|
8
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
9
|
9
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
10
|
10
6H4-82588-00-00
Plate
|
6H4-82588-00-00 |
— | ||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
6H4-82590-11-00
Wire Harness Assembly
|
6H4-82590-11-00 |
— | ||
|
13
|
13
90464-07M20-00 Clamp |
90464-07M20-00 |
US $1.98 |
||
