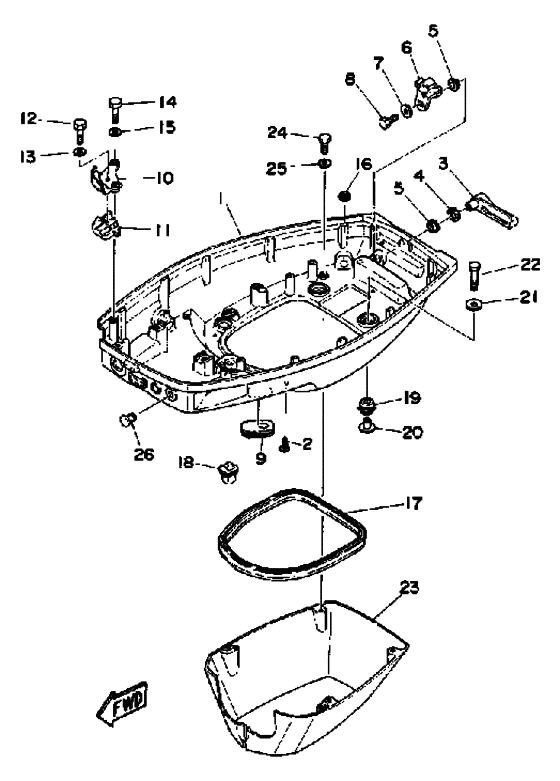

Bottom cowling Diagram Yamaha 50 M(W/E/T/H/O)S/L
- Year
- 1990
- Model
- 50
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H4-42711-05-EK
Bottom Cowling
|
6H4-42711-05-EK |
— | ||
|
2
|
2
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
3
|
3
6H4-42815-00-00 Lever, Clamp |
6H4-42815-00-00 |
from US $17.01 |
||
|
4
|
4
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
5
|
5
90386-12069-00 Bush |
90386-12069-00 |
from US $1.94 |
||
|
6
|
6
6H4-42816-00-00 Lever, Clamp |
6H4-42816-00-00 |
from US $8.08 |
||
|
7
|
7
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
8
|
8
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
8
|
8
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
9
|
9
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $4.38 |
||
|
10
|
10
6H4-48531-10-94 Bracket, Remote Control 1 |
6H4-48531-10-94 |
from US $17 |
||
| replacement | |||||
|
10
|
10
6H4-48531-11-94 Bracket, Remote Control 1 |
6H4-48531-11-94 |
from US $17 |
||
|
11
|
11
6H4-48532-10-94
Bracket, Remote Control 2
|
6H4-48532-10-94 |
— | ||
| replacement | |||||
|
11
|
11
6H4-48532-11-94 Bracket, Remote Control 2 |
6H4-48532-11-94 |
from US $31.17 |
||
|
12
|
12
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
17
|
17
6H4-42716-00-00 Rubber, Seal 1 |
6H4-42716-00-00 |
US $12.33 |
||
|
18
|
18
682-42727-00-00 Grommet |
682-42727-00-00 |
US $6.80 |
||
|
19
|
19
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $3.04 |
||
|
20
|
20
90387-06M41-00 Collar |
90387-06M41-00 |
from US $4.04 |
||
|
21
|
21
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
22
|
22
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
23
|
23
6H4-42741-00-00
Apron 1
|
6H4-42741-00-00 |
— | ||
|
24
|
24
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
26
|
26
6G1-42748-00-00 Grommet |
6G1-42748-00-00 |
US $5.24 |
||
