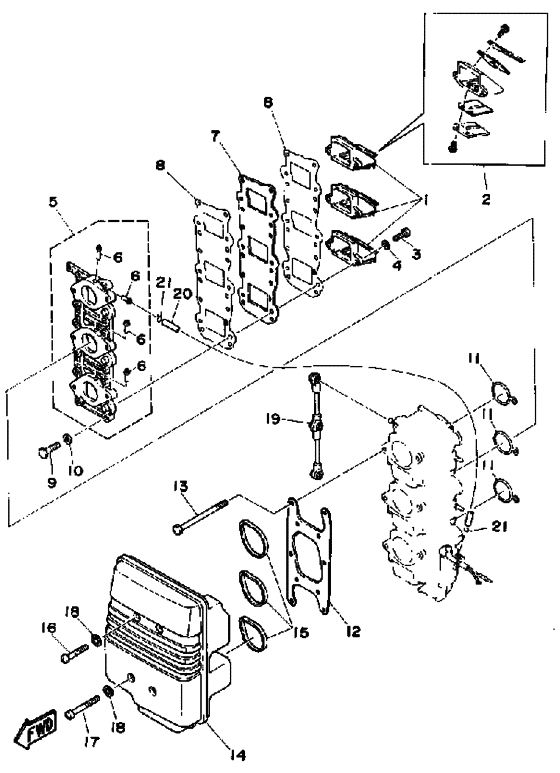

Intake Diagram Yamaha 50 M(W/E/T/H/O)S/L
- Year
- 1990
- Model
- 50
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-13610-00-00 Reed Valve Assy |
6H5-13610-00-00 |
from US $76.54 |
||
|
2
|
2
6H4-W0004-00-00 Reed Set |
6H4-W0004-00-00 |
from US $23.38 |
||
|
3
|
3
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H4-13641-12-94 Manifold, Intake 1 |
6H4-13641-12-94 |
US $119.37 |
||
| replacement | |||||
|
5
|
5
6H4-13641-12-00 Manifold, Intake 1 |
6H4-13641-12-00 |
from US $119.37 |
||
|
6
|
6
6H1-14485-00-00 Pipe, Joint |
6H1-14485-00-00 |
from US $5.38 |
||
|
7
|
7
6H4-13624-01-94 Plate,reed Valve |
6H4-13624-01-94 |
US $15.30 |
||
| replacement | |||||
|
7
|
7
6H4-13624-01-00 Plate, Reed Valve |
6H4-13624-01-00 |
from US $15.30 |
||
|
8
|
8
6H4-13621-A1-00 Gasket, Valve Seat |
6H4-13621-A1-00 |
from US $9.95 |
||
|
9
|
9
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
6H4-14198-01-00 Gasket |
6H4-14198-01-00 |
from US $3.47 |
||
|
12
|
12
6H4-14406-00-00 Hinge |
6H4-14406-00-00 |
from US $20.54 |
||
|
13
|
13
97313-06095-00 Bolt (6G8) |
97313-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
|
13
|
13
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
14
|
14
6H4-14431-01-00 Silencer, Intake 1 |
6H4-14431-01-00 |
US $61.20 |
||
| replacement | |||||
|
14
|
14
6H4-14431-02-00 Silencer, Intake 1 |
6H4-14431-02-00 |
from US $67.32 |
||
|
15
|
15
6H3-14457-01-00 Seal |
6H3-14457-01-00 |
US $3.74 |
||
| replacement | |||||
|
15
|
15
6H3-14457-02-00 Seal |
6H3-14457-02-00 |
from US $3.74 |
||
|
16
|
16
97895-06040-00 Screw, Pan Head |
97895-06040-00 |
US $2.27 |
||
| replacements | |||||
|
16
|
16
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
16
|
16
97885-06040-00 Screw, Pan Head(6H4) |
97885-06040-00 |
from US $2.50 |
||
|
17
|
17
97895-06055-00 Screw, Pan Head |
97895-06055-00 |
US $3.40 |
||
| replacement | |||||
|
17
|
17
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
18
|
18
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
19
|
19
6H4-41217-01-00 Rod, Accel. Lever |
6H4-41217-01-00 |
from US $13.88 |
||
|
20
|
20
904-4507M-24-00
Hose (L240)
|
904-4507M-24-00 |
— | ||
| replacements | |||||
|
20
|
20
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
