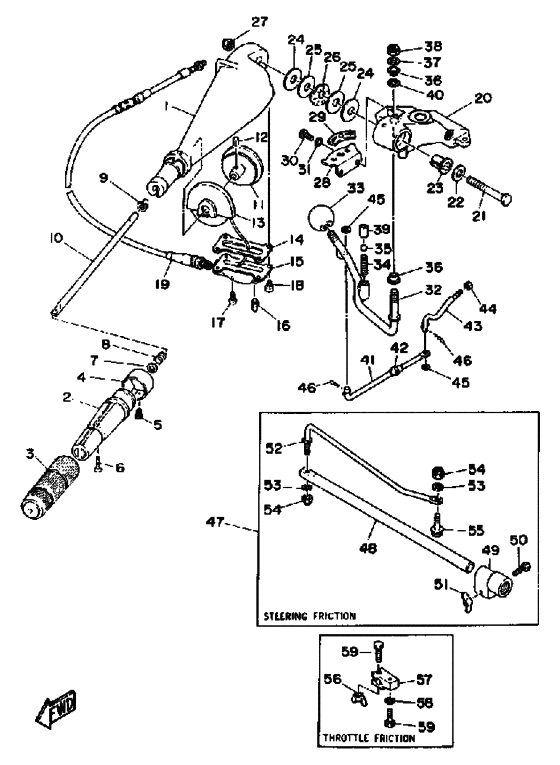

Steering Diagram Yamaha 50 M(W/E/T/H/O)S/L
- Year
- 1990
- Model
- 50
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-42111-01-EK
Handle, Steering
|
663-42111-01-EK |
— | ||
| replacement | |||||
|
1
|
1
663-42111-02-EK
element
|
663-42111-02-EK |
— | ||
|
2
|
2
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
3
|
3
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
4
|
4
697-42137-10-00 Indicator, Throttle |
697-42137-10-00 |
from US $8.64 |
||
|
5
|
5
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
6
|
6
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
6
|
6
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
7
|
7
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
8
|
8
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
9
|
9
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
10
|
10
663-42115-00-00 Shaft, Steering Handle |
663-42115-00-00 |
from US $17.18 |
||
|
11
|
11
663-42138-00-00 Lever, Throttle |
663-42138-00-00 |
from US $33.68 |
||
|
12
|
12
91690-30216-00 Pin, Spring |
91690-30216-00 |
from US $5.10 |
||
|
13
|
13
663-42135-01-00 Housing, Throttle Lever |
663-42135-01-00 |
from US $19.54 |
||
|
14
|
14
663-42133-01-00 Gasket |
663-42133-01-00 |
from US $4.96 |
||
|
15
|
15
663-42134-02-94 Cover |
663-42134-02-94 |
US $30.89 |
||
| replacement | |||||
|
15
|
15
663-42134-03-94 Cover, Throttle Lever |
663-42134-03-94 |
from US $17.86 |
||
|
16
|
16
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
17
|
17
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
18
|
18
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
19
|
19
692-26301-03-00 Throttle Cable Assy |
692-26301-03-00 |
from US $75.08 |
||
|
20
|
20
6H4-42121-10-EK
Bracket
|
6H4-42121-10-EK |
— | ||
|
21
|
21
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
| replacement | |||||
|
21
|
21
901-01120-75-00 Bolt |
901-01120-75-00 |
from US $13.46 |
||
|
22
|
22
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
23
|
23
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
24
|
24
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
25
|
25
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $5.06 |
||
|
26
|
26
90206-12054-00 Washer, Wave |
90206-12054-00 |
from US $3.26 |
||
|
27
|
27
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
28
|
28
6H4-44113-10-00 Cam Plate, Handle |
6H4-44113-10-00 |
from US $14.31 |
||
|
29
|
29
6K5-44191-00-00 Indicator, Shift |
6K5-44191-00-00 |
from US $7.65 |
||
|
30
|
30
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
30
|
30
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
6H4-44159-00-00 Handle, Gear Shift |
6H4-44159-00-00 |
from US $50.01 |
||
|
33
|
33
663-44173-00-00 Lever, Shift Control |
663-44173-00-00 |
from US $12.75 |
||
|
34
|
34
90501-16M17-00 Spring, Compression |
90501-16M17-00 |
from US $2.83 |
||
|
35
|
35
93515-32M01-00 Ball |
93515-32M01-00 |
from US $6.09 |
||
|
36
|
36
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
37
|
37
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
37
|
37
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
|
38
|
38
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
38
|
38
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
39
|
39
90387-12M30-00 Collar |
90387-12M30-00 |
from US $9.07 |
||
|
40
|
40
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
41
|
41
6H4-42191-01-00 Rod 1 |
6H4-42191-01-00 |
from US $19.94 |
||
|
42
|
42
90386-06088-00 Bush |
90386-06088-00 |
from US $2.55 |
||
|
43
|
43
6H4-42192-01-00 Rod 2 |
6H4-42192-01-00 |
from US $20.97 |
||
|
44
|
44
700-48339-00-00 Nut, Cable End |
700-48339-00-00 |
from US $1.70 |
||
|
45
|
45
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
46
|
46
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
47
|
47
6H5-42508-00-00
Steering Friction Assembly
|
6H5-42508-00-00 |
— | ||
|
48
|
48
663-42518-00-00 Shaft, Friction |
663-42518-00-00 |
from US $82.32 |
||
|
49
|
49
663-42528-00-00 Plate, Friction |
663-42528-00-00 |
from US $20.54 |
||
|
50
|
50
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
50
|
50
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
51
|
51
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
51
|
51
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
51
|
51
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
52
|
52
6H5-42515-00-00
Rod, Steering Link
|
6H5-42515-00-00 |
— | ||
|
53
|
53
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
54
|
54
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
55
|
55
90101-08M11-00 Bolt |
90101-08M11-00 |
from US $2.55 |
||
|
56
|
56
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
56
|
56
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
56
|
56
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
57
|
57
663-42126-01-00 Throttle Friction |
663-42126-01-00 |
from US $11.33 |
||
|
58
|
58
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
59
|
59
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
59
|
59
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
