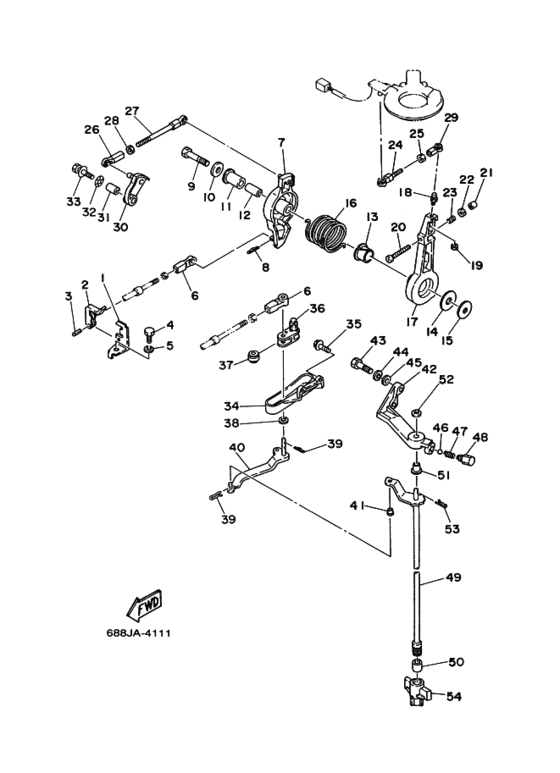

Capsulevacuum distributor Diagram Yamaha 50 M(W/E/TO)S/L
- Year
- 1997
- Model
- 50J
- Model code
- 688
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-48531-00-00 Bracket, Remote Controlブラケツト，リモートコントロール １; |
663-48531-00-00 |
from US $10.63 |
||
|
2
|
2
663-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
663-48538-00-00 |
from US $7.23 |
||
|
3
|
3
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
4
|
4
97095-08016-00 Boltボルト; |
97095-08016-00 |
US $1.28 |
||
| replacements | |||||
|
4
|
4
97D95-08016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-08016-00 |
from US $1.28 |
||
|
4
|
4
97D95-08016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-08016-00 |
from US $1.28 |
||
|
5
|
5
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
663-48344-00-00
Cable End, Remote Control
ケーブルエンド，リモートコントロール; |
663-48344-00-00 |
— | ||
| replacement | |||||
|
6
|
6
6FM-48344-00-00 CABLE END, REMOTE CONTROLケーブルエンド，リモートコントロール; |
6FM-48344-00-00 |
from US $2.64 |
||
|
7
|
7
688-41632-01-94 Lever, Magneto Controlレバー，マグネツトコントロール; |
688-41632-01-94 |
US $30.46 |
||
| replacements | |||||
|
7
|
7
688-41632-01-1S Lever, Magneto Controlレバー，マグネツトコントロール; |
688-41632-01-1S |
US $30.46 |
||
|
7
|
7
688-41632-09-1S Lever, Magneto Controlレバー，マグネツトコントロール; |
688-41632-09-1S |
from US $30.46 |
||
|
8
|
8
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
9
|
9
97095-08045-00 Boltボルト; |
97095-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97080-08045-00 Bolt, Hexagonボルト; |
97080-08045-00 |
from US $4.25 |
||
|
10
|
10
90201-08M54-00 Washer, Plateワツシヤ，プレート; |
90201-08M54-00 |
from US $2.70 |
||
|
11
|
11
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
12
|
12
90387-08M16-00 Collarカラー; |
90387-08M16-00 |
from US $2.36 |
||
| replacement | |||||
|
12
|
12
90387-084J8-00 Collarカラー; |
90387-084J8-00 |
US $4.77 |
||
|
13
|
13
90386-22M13-00 Bush |
90386-22M13-00 |
from US $4.04 |
||
|
14
|
14
90202-12092-00 Washer, Plateワツシヤ，プレート; |
90202-12092-00 |
from US $2.55 |
||
|
15
|
15
90201-08M13-00 Washer, Plateワツシヤ，プレート; |
90201-08M13-00 |
from US $3.54 |
||
|
16
|
16
90508-29M05-00 Spring, Torsionスプリング，トーシヨン; |
90508-29M05-00 |
from US $8.78 |
||
|
17
|
17
688-41631-01-94 Lever, Magneto Controlレバー，マグネツトコントロール; |
688-41631-01-94 |
US $32.02 |
||
| replacement | |||||
|
17
|
17
688-41631-01-1S Lever, Magneto Controlレバー，マグネツトコントロール; |
688-41631-01-1S |
from US $32.02 |
||
|
18
|
18
663-85518-00-00 Joint, Ballジヨイント，ボール; |
663-85518-00-00 |
from US $8.64 |
||
|
19
|
19
95303-05700-00 Nut |
95303-05700-00 |
US $1.98 |
||
| replacement | |||||
|
19
|
19
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
20
|
20
90157-06M11-00 Screw, Pan Head |
90157-06M11-00 |
from US $2.69 |
||
|
21
|
21
688-44194-00-00 Capキヤツプ; |
688-44194-00-00 |
from US $5.95 |
||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
23
|
23
90501-16M12-00 Spring, Compression |
90501-16M12-00 |
from US $2.41 |
||
|
24
|
24
682-41237-50-00 Joint, Linkジヨイント，リンク; |
682-41237-50-00 |
from US $5.40 |
||
|
25
|
25
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
26
|
26
682-41237-00-00 Joint, Link 2ジヨイント，リンク; |
682-41237-00-00 |
from US $2.02 |
||
|
27
|
27
688-41211-01-00 Link, Accelリンク，アクセル; |
688-41211-01-00 |
from US $6.74 |
||
|
28
|
28
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
29
|
29
682-41237-00-00 Joint, Link 2ジヨイント，リンク; |
682-41237-00-00 |
from US $2.02 |
||
|
30
|
30
688-41213-00-00 Cam, AccelＵＲ ７５Ａ／８５Ａ |
688-41213-00-00 |
US $23.38 |
||
| replacement | |||||
|
30
|
30
688-41213-01-00 Cam, AccelＵＲ ７５Ａ／８５Ａ |
688-41213-01-00 |
from US $14.47 |
||
|
30
|
30
688-41213-10-00
Cam, Accel
カム，アクセル; ＵＲ ５０Ｊ |
688-41213-10-00 |
— | ||
|
31
|
31
90387-06M17-00 Collar, Lever 1カラー; |
90387-06M17-00 |
from US $6.05 |
||
| replacement | |||||
|
31
|
31
36Y-83913-01-00 Collar, Lever 1カラー; |
36Y-83913-01-00 |
from US $6.09 |
||
|
32
|
32
90206-10M04-00 Washer, Waveワツシヤ，ウエイブ; |
90206-10M04-00 |
from US $1.84 |
||
|
33
|
33
90119-06M24-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M24-00 |
from US $4.12 |
||
|
34
|
34
688-44117-00-94 Bracket |
688-44117-00-94 |
from US $22.22 |
||
|
35
|
35
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
35
|
35
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
35
|
35
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
36
|
36
688-44124-00-00 Link, Shift Rodリンク，シフトロツド; |
688-44124-00-00 |
from US $13.87 |
||
|
37
|
37
688-44122-00-00 Bushing, Shift Rod Leverブツシング，シフトロツドレバー; |
688-44122-00-00 |
from US $3.38 |
||
|
38
|
38
90202-07M07-00 Washer, Plateワツシヤ，プレート; |
90202-07M07-00 |
from US $2.08 |
||
|
39
|
39
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
40
|
40
688-44121-01-00
Lever, Shift Rod
レバー，シフトロツド; |
688-44121-01-00 |
— | ||
|
41
|
41
90386-06M12-00 Bush |
90386-06M12-00 |
from US $2.69 |
||
|
42
|
42
688-44118-00-94 Bracketブラケツト; |
688-44118-00-94 |
US $37.44 |
||
| replacement | |||||
|
42
|
42
688-44118-01-94 Bracketブラケツト; |
688-44118-01-94 |
from US $24.92 |
||
|
43
|
43
970-13080-30-00 Boltボルト; |
970-13080-30-00 |
from US $3.47 |
||
| replacement | |||||
|
43
|
43
970-24080-30-00 Boltボルト; |
970-24080-30-00 |
from US $1.55 |
||
|
44
|
44
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
45
|
45
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.66 |
||
|
46
|
46
93501-04M02-00 Ballボール; |
93501-04M02-00 |
from US $1.70 |
||
|
47
|
47
90501-12082-00 Spring, Compression |
90501-12082-00 |
from US $2.02 |
||
|
48
|
48
648-42715-00-00 Bushingブツシング; |
648-42715-00-00 |
from US $7.08 |
||
|
49
|
49
688-44120-12-00 Handle Gear Shift Assyハンドルギヤシフトアセンブリ; ＵＲ Ｌ０ＮＧ |
688-44120-12-00 |
US $87.32 |
||
| replacements | |||||
|
49
|
49
688-44120-13-00 Handle Gear Shift Assyハンドルギヤシフトアセンブリ; ＵＲ Ｌ０ＮＧ |
688-44120-13-00 |
US $87.32 |
||
|
49
|
49
688-44120-14-00 HANDLE GEAR SHIFT ASSYハンドルギヤシフトアセンブリ; ＵＲ Ｌ０ＮＧ |
688-44120-14-00 |
from US $84.50 |
||
|
49
|
49
688-44120-22-00 Handle Gear Shift Assyハンドルギヤシフトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
688-44120-22-00 |
US $87.32 |
||
| replacements | |||||
|
49
|
49
688-44120-23-00 Handle Gear Shift Assyハンドルギヤシフトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
688-44120-23-00 |
US $87.32 |
||
|
49
|
49
688-44120-24-00 Handle Gear Shift Assyハンドルギヤシフトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
688-44120-24-00 |
from US $87.32 |
||
|
50
|
50
696-44147-00-00 Boot, Shift Rodブーツ，シフトロツド; |
696-44147-00-00 |
from US $10.01 |
||
|
51
|
51
903-86080-06-00 Bush |
903-86080-06-00 |
from US $2.41 |
||
|
52
|
52
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.18 |
||
|
53
|
53
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
54
|
54
697-43662-00-00 Guide, Reverse Rodガイド，リバースロツド; |
697-43662-00-00 |
from US $7.93 |
||
