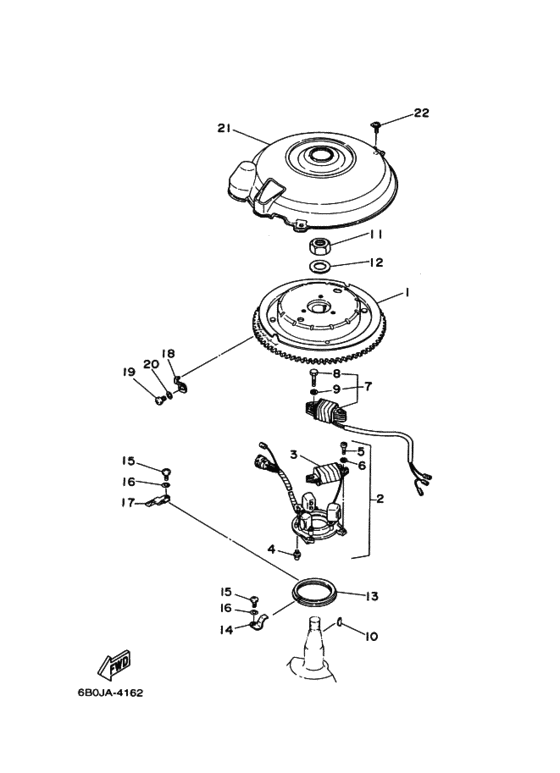

ﾏｸﾞﾈﾄ Diagram Yamaha 50 ETS/L
- Year
- 1998
- Model
- K50
- Model code
- 6B0
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K5-85550-A0-00 Rotor Assyロ−タアセンブリ; |
6K5-85550-A0-00 |
US $814.44 |
||
| replacement | |||||
|
1
|
1
6K5-85550-A1-00 Rotor Assyロ−タアセンブリ; |
6K5-85550-A1-00 |
from US $814.44 |
||
|
2
|
2
6H3-85510-A0-00 Stator Assemblyステ−タアセンブリ; |
6H3-85510-A0-00 |
US $595.32 |
||
| replacement | |||||
|
2
|
2
6H3-85510-A1-00 Stator Assyステ−タアセンブリ; |
6H3-85510-A1-00 |
from US $595.32 |
||
|
3
|
3
6H3-85520-00-00 Coil, Charge．コイル，チヤ−ジ; |
6H3-85520-00-00 |
from US $179.61 |
||
|
4
|
4
663-85518-00-00 Joint, Ball．ジヨイント，ボ−ル; |
663-85518-00-00 |
from US $8.64 |
||
|
5
|
5
98502-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98502-05016-00 |
US $1.07 |
||
| replacements | |||||
|
5
|
5
98507-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
|
5
|
5
97885-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-05016-00 |
from US $3.12 |
||
|
6
|
6
92902-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
6H3-81303-A0-00 Lighting Coil Assemblyライテイングコイルアセンブリ; |
6H3-81303-A0-00 |
from US $214.15 |
||
|
8
|
8
97013-06030-00 Bolt．ボルト; |
97013-06030-00 |
from US $1.65 |
||
| replacement | |||||
|
8
|
8
97080-06030-00 Bolt．ボルト; |
97080-06030-00 |
from US $2.83 |
||
|
9
|
9
929-03066-00-00
Washer, Plate
．ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-80050-15-00
Key, Woodruff
|
902-80050-15-00 |
— | ||
| replacement | |||||
|
10
|
10
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
11
|
11
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
12
|
12
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
13
|
13
6H3-41611-00-00
Retainer, Magneto Base
リテ−ナ，マグネツトベ−ス; |
6H3-41611-00-00 |
— | ||
|
14
|
14
6H3-41612-00-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
6H3-41612-00-00 |
from US $5.53 |
||
|
15
|
15
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
6H3-41612-20-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
6H3-41612-20-00 |
from US $6.62 |
||
|
18
|
18
6E5-81332-00-00 Plate, Timing |
6E5-81332-00-00 |
from US $6.23 |
||
|
19
|
19
97885-06010-00 Screw, Pan Head |
97885-06010-00 |
US $1.98 |
||
| replacements | |||||
|
19
|
19
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
19
|
19
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.98 |
||
|
20
|
20
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
6H3-81337-01-00 Cover, Flywheelカバ−，フライホイ−ル; |
6H3-81337-01-00 |
from US $38.57 |
||
|
22
|
22
90159-06M23-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
90159-06M23-00 |
from US $3.26 |
||
