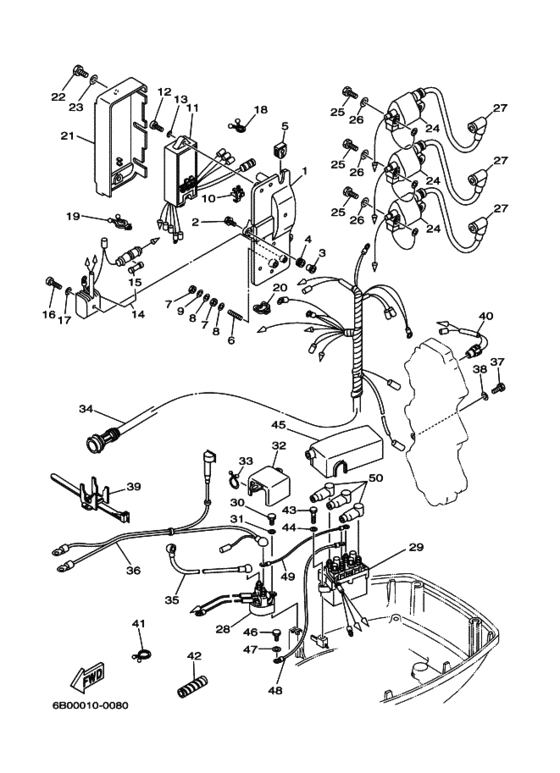

Electrical 1 Diagram Yamaha 50 ETS/L
- Year
- 2000
- Model
- K50
- Model code
- 6B0
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-85542-00-94 Bracket |
6H3-85542-00-94 |
US $46.70 |
||
|
2
|
2
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
3
|
3
90387-06M43-00 Collar |
90387-06M43-00 |
from US $4.96 |
||
|
4
|
4
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $5.13 |
||
|
5
|
5
6H3-81922-00-00 Grommet |
6H3-81922-00-00 |
from US $8.64 |
||
|
6
|
6
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
8
|
8
92990-06200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90464-04M12-00 Clamp |
90464-04M12-00 |
US $1.84 |
||
|
11
|
11
6H3-85540-11-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
6H3-85540-11-00 |
US $792 |
||
| replacements | |||||
|
11
|
11
6H3-85540-12-00 C.D.I. UNIT ASSYＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
6H3-85540-12-00 |
US $792 |
||
|
11
|
11
6H3-85540-13-00 CDI UNIT ASSYＣ．Ｄ．Ｉ．ユニツトアセンブリ; |
6H3-85540-13-00 |
from US $502.70 |
||
|
12
|
12
97880-06025-00 Screw, Pan Head |
97880-06025-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
6G1-81970-61-00
Rectifier Assy
レクチフアイヤアセンブリ; |
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
14
|
14
6G1-81970-62-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-62-00 |
US $88.98 |
||
|
14
|
14
6G1-81970-63-00 Rectifier Assyレクチフアイヤアセンブリ; |
6G1-81970-63-00 |
from US $94.08 |
||
|
15
|
15
6G1-82151-00-00 Fuse (10A)．フユ−ズ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
1E6-82151-00-00 Fuse (10A)．フユ−ズ; |
1E6-82151-00-00 |
from US $2.02 |
||
|
16
|
16
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
16
|
16
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
17
|
17
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
18
|
18
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
19
|
19
90464-12M17-00 Clamp |
90464-12M17-00 |
US $1.84 |
||
| replacement | |||||
|
19
|
19
90464-15M27-00 Clamp(6H4) |
90464-15M27-00 |
from US $1.84 |
||
|
20
|
20
90464-07M10-00 Clamp |
90464-07M10-00 |
from US $1.98 |
||
|
21
|
21
6H3-81916-00-00 Cover, Terminalカバ−，タ−ミナル; |
6H3-81916-00-00 |
from US $15.73 |
||
|
22
|
22
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
6H3-85570-10-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
6H3-85570-10-00 |
from US $113.78 |
||
|
25
|
25
97013-06025-00 Boltボルト; |
97013-06025-00 |
from US $1.48 |
||
|
26
|
26
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
27
|
27
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $6.62 |
||
|
28
|
28
688-81950-10-00 Relay Assy |
688-81950-10-00 |
from US $165.79 |
||
|
29
|
29
6H1-81950-00-00
Relay Assy
リレ−アセンブリ; |
6H1-81950-00-00 |
— | ||
| replacement | |||||
|
29
|
29
6H1-81950-01-00 Relay Assyリレ−アセンブリ; |
6H1-81950-01-00 |
from US $137.47 |
||
|
30
|
30
97013-06016-00 Boltボルト; |
97013-06016-00 |
from US $1.39 |
||
| replacements | |||||
|
30
|
30
97095-06016-00 Boltボルト; |
97095-06016-00 |
US $1.52 |
||
|
30
|
30
97014-06016-00 Bolt, Hexagonボルト; |
97014-06016-00 |
from US $1.39 |
||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
31
|
31
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
32
|
32
6H3-82164-00-00 Case 2 |
6H3-82164-00-00 |
from US $4.85 |
||
|
33
|
33
90464-15M11-00 Clamp |
90464-15M11-00 |
US $1.70 |
||
| replacement | |||||
|
33
|
33
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
34
|
34
6H3-82105-J1-00 Battery Cableワイヤハ−ネス; |
6H3-82105-J1-00 |
US $229.35 |
||
| replacements | |||||
|
34
|
34
6H0-82105-J2-00 Battery Cableワイヤハ−ネス; |
6H0-82105-J2-00 |
US $127.65 |
||
|
34
|
34
6H0-82105-J3-00 Battery Cableワイヤハ−ネス; |
6H0-82105-J3-00 |
US $322.99 |
||
|
35
|
35
6H3-82117-00-00 Wire, Lead |
6H3-82117-00-00 |
US $16.86 |
||
|
36
|
36
6H3-82590-13-00
Wire Harness Assy
ワイヤハ−ネスアセンブリ; |
6H3-82590-13-00 |
— | ||
|
37
|
37
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
37
|
37
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
38
|
38
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
39
|
39
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
40
|
40
688-82560-10-00 Thermo Switch Assyサ−モスイツチアセンブリ; |
688-82560-10-00 |
from US $50.50 |
||
|
41
|
41
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
42
|
42
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
42
|
42
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
43
|
43
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
43
|
43
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.52 |
||
|
44
|
44
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
45
|
45
6H3-82154-11-00 Caseケース; |
6H3-82154-11-00 |
from US $8.94 |
||
|
46
|
46
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
46
|
46
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
47
|
47
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
47
|
47
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
48
|
48
6H2-81949-11-00 Wire, Lead |
6H2-81949-11-00 |
US $18.42 |
||
| replacement | |||||
|
48
|
48
6H2-81949-12-00 Wire, Lead |
6H2-81949-12-00 |
US $22.37 |
||
|
49
|
49
6H2-81949-01-00 Wire, Lead |
6H2-81949-01-00 |
US $18.42 |
||
| replacement | |||||
|
49
|
49
6H2-81949-02-00 Wire,Lead |
6H2-81949-02-00 |
from US $14.58 |
||
|
50
|
50
682-82119-01-00 Cover, Lead Wire |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
50
|
50
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
