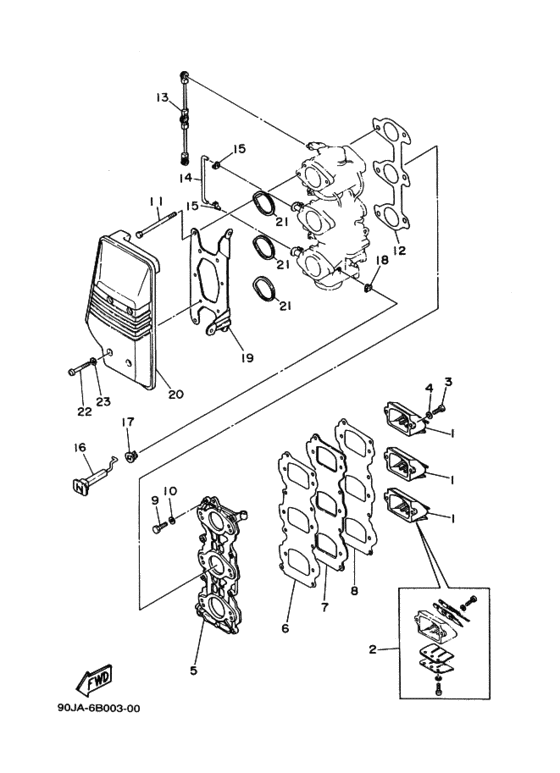

Intake Diagram Yamaha 50 ETS/L
- Year
- 1995
- Model
- K50
- Model code
- 6B0
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H3-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
6H3-13610-00-00 |
from US $103.07 |
||
|
2
|
2
688-W0004-00-00 Reed Set．リードセツト; |
688-W0004-00-00 |
from US $55.26 |
||
|
3
|
3
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H3-13641-03-94 Manifold, Intake 1マニホールド １; |
6H3-13641-03-94 |
US $135.12 |
||
|
6
|
6
6H3-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13621-00-00 |
US $11.05 |
||
| replacement | |||||
|
6
|
6
6H3-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13621-A1-00 |
from US $6.40 |
||
|
7
|
7
6H3-13624-00-94 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-94 |
US $18.14 |
||
| replacement | |||||
|
7
|
7
6H3-13624-00-00 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-00 |
from US $14.58 |
||
|
8
|
8
6H3-13622-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13622-A1-00 |
from US $11.05 |
||
|
9
|
9
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
97395-06095-00 Bolt |
97395-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
|
11
|
11
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
12
|
12
6H3-14198-A1-00 Gasket |
6H3-14198-A1-00 |
from US $4.53 |
||
|
13
|
13
6H3-41217-00-00 Rod, Accel. Leverロツド，アクセルレバー; |
6H3-41217-00-00 |
from US $7.42 |
||
|
14
|
14
6H3-41257-00-00 Rod, Choke 2ロツド，チヨーク ２; |
6H3-41257-00-00 |
from US $3.12 |
||
|
15
|
15
661-41262-02-00 Joint, Choke Leverジヨイント，チヨークレバー; |
661-41262-02-00 |
from US $7.93 |
||
|
16
|
16
6H3-41271-00-00 Knob, Chokeノブ，チヨーク; |
6H3-41271-00-00 |
US $16.01 |
||
| replacement | |||||
|
16
|
16
6H3-41271-01-00 Knob, Chokeノブ，チヨーク; |
6H3-41271-01-00 |
from US $11.46 |
||
|
17
|
17
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
18
|
18
661-41262-02-00 Joint, Choke Leverジヨイント，チヨークレバー; |
661-41262-02-00 |
from US $7.93 |
||
|
19
|
19
6B0-14413-00-00
Stay
ステー; |
6B0-14413-00-00 |
— | ||
| replacement | |||||
|
19
|
19
6B0-14413-01-00
Stay
ステー; |
6B0-14413-01-00 |
— | ||
|
20
|
20
6H3-14440-02-00 Silencer Assy, Intakeサイレンサアセンブリ，インテーク; |
6H3-14440-02-00 |
from US $59.96 |
||
|
21
|
21
6H3-14457-01-00 Sealシール; |
6H3-14457-01-00 |
US $3.74 |
||
| replacement | |||||
|
21
|
21
6H3-14457-02-00 Sealシール; |
6H3-14457-02-00 |
from US $3.74 |
||
|
22
|
22
97895-06045-00 Screw, Pan Head |
97895-06045-00 |
US $3.26 |
||
| replacement | |||||
|
22
|
22
97885-06045-00 Screw, Pan Head |
97885-06045-00 |
from US $3.26 |
||
|
23
|
23
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
