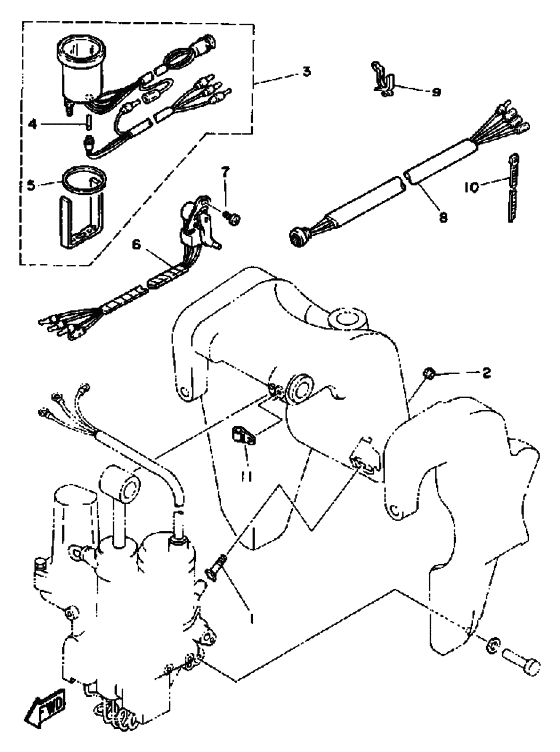

Bracket Diagram Yamaha 50 S/L (PRO)
- Year
- 1990
- Model
- P50
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-43376-01-00 Bolt, Thrust Receiver |
688-43376-01-00 |
from US $21.39 |
||
|
2
|
2
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
3
|
3
6Y5-83670-01-00
Trim Meter
|
6Y5-83670-01-00 |
— | ||
|
4
|
4
6Y5-83518-00-00 Bulb (12V-1.7W T6.5)12V-17W T65 |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
3FV-83517-00-00 Bulb (12V-1.7W)12V-17W T65 |
3FV-83517-00-00 |
from US $4.99 |
||
|
5
|
5
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
6
|
6
6E5-83672-01-00 Trim Sender |
6E5-83672-01-00 |
from US $133.88 |
||
|
7
|
7
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
8
|
8
6E5-82553-10-00
Extension, Wire Harness
|
6E5-82553-10-00 |
— | ||
|
9
|
9
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.94 |
||
|
10
|
10
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
11
|
11
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
