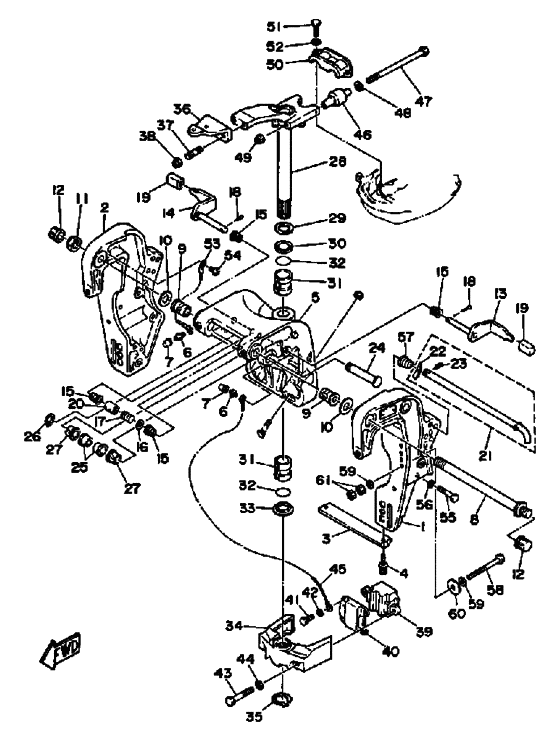

Bracket Diagram Yamaha 50 S/L (PRO)
- Year
- 1989
- Model
- P50
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 50
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-04-EK
Bracket, Clamp 1
|
697-43111-04-EK |
— | ||
|
2
|
2
697-43112-03-EK
Bracket, Clamp 2
|
697-43112-03-EK |
— | ||
|
3
|
3
6H1-45251-01-00 Anode |
6H1-45251-01-00 |
US $35.85 |
||
| replacement | |||||
|
3
|
3
999-99039-35-00 Anode Set |
999-99039-35-00 |
from US $35.69 |
||
|
4
|
4
90119-06M52-00 Bolt |
90119-06M52-00 |
US $4.82 |
||
| replacements | |||||
|
4
|
4
97595-06630-00 Bolt, With Washer(61B) |
97595-06630-00 |
US $3.54 |
||
|
4
|
4
97E95-06630-00 Bolt, Hexagon W/w Deep Recess |
97E95-06630-00 |
from US $1.07 |
||
|
5
|
5
697-43311-03-EK
Bracket, Swivel 1
|
697-43311-03-EK |
— | ||
|
6
|
6
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
7
|
7
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
8
|
8
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
9
|
9
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
10
|
10
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
11
|
11
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
11
|
11
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
12
|
12
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
12
|
12
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
13
|
13
688-43181-04-00 Lever, Tilt Stop |
688-43181-04-00 |
from US $35.02 |
||
|
14
|
14
688-43185-04-00 Lever, Tilt Stop |
688-43185-04-00 |
from US $50.29 |
||
|
15
|
15
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
16
|
16
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
17
|
17
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
18
|
18
91490-30040-00 Pin. Cotter |
91490-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
18
|
18
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
19
|
19
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
20
|
20
90387-10M38-00 Collar |
90387-10M38-00 |
from US $9.15 |
||
|
21
|
21
697-43160-00-00 Tilt Rod Assembly |
697-43160-00-00 |
from US $37.99 |
||
|
22
|
22
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
23
|
23
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
24
|
24
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
25
|
25
90386-18M63-00 Bush |
90386-18M63-00 |
from US $4.03 |
||
|
26
|
26
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
26
|
26
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
27
|
27
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
28
|
28
6H4-42510-02-EK
Steering Bracket Assembly
|
6H4-42510-02-EK |
— | ||
| replacement | |||||
|
28
|
28
6H4-42510-09-EK
Steering Bracket A
|
6H4-42510-09-EK |
— | ||
|
29
|
29
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
30
|
30
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
31
|
31
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
32
|
32
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
33
|
33
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
34
|
34
6H4-44551-01-EK
Housing, Lower Mount
|
6H4-44551-01-EK |
— | ||
| replacement | |||||
|
34
|
34
6H4-44551-02-EK
Housing, Lower Mount
|
6H4-44551-02-EK |
— | ||
|
35
|
35
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
36
|
36
6H5-48511-51-EK
Hook Steering
|
6H5-48511-51-EK |
— | ||
| replacement | |||||
|
36
|
36
6H5-48511-51-4D
Hook, Steering
|
6H5-48511-51-4D |
— | ||
|
37
|
37
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
37
|
37
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
37
|
37
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
38
|
38
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
38
|
38
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
39
|
39
6H4-44557-00-00 Mount Damper, Lower Front |
6H4-44557-00-00 |
from US $74.61 |
||
|
39
|
39
6H4-44557-10-00 Mount Damper, Lower Front |
6H4-44557-10-00 |
from US $74.61 |
||
|
40
|
40
6H4-44553-01-00 Cover, Lower Mount |
6H4-44553-01-00 |
from US $71.39 |
||
|
41
|
41
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
41
|
41
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
41
|
41
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
42
|
42
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
43
|
43
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
43
|
43
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
44
|
44
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
45
|
45
6H5-82117-00-00
Wire, Lead
|
6H5-82117-00-00 |
— | ||
|
46
|
46
6H4-44514-00-00 Mount Damper, Upper Side |
6H4-44514-00-00 |
from US $43.11 |
||
|
47
|
47
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.82 |
||
|
48
|
48
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $5.13 |
||
|
49
|
49
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
49
|
49
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.66 |
||
|
50
|
50
6H4-44511-00-94
Cover, Upper Mount
|
6H4-44511-00-94 |
— | ||
| replacement | |||||
|
50
|
50
6H4-44511-00-00
Cover, Upper Mount
|
6H4-44511-00-00 |
— | ||
|
51
|
51
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
51
|
51
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
51
|
51
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
52
|
52
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
53
|
53
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
54
|
54
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
54
|
54
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
55
|
55
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
55
|
55
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
55
|
55
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
56
|
56
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
57
|
57
90502-20M03-00 Spring, Conical |
90502-20M03-00 |
from US $6.80 |
||
|
58
|
58
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
59
|
59
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
59
|
59
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
60
|
60
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
61
|
61
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
