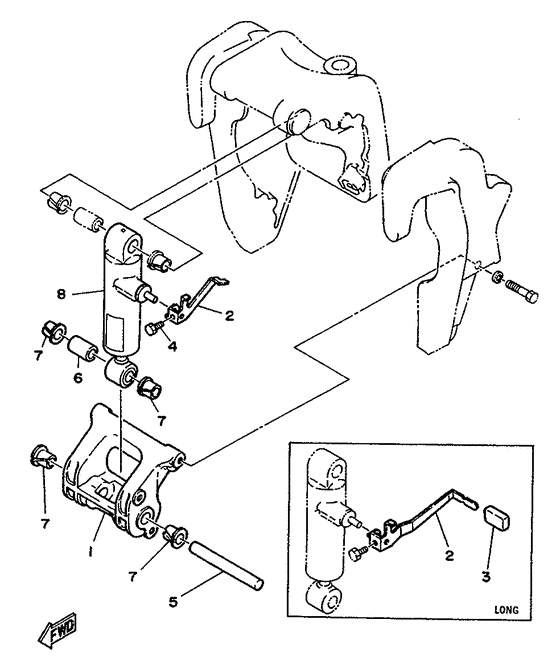

Bracket 2 Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1990
- Model
- 55B
- Model code
- 697
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-43128-01-1D
Spacer, Clamp Bracket
Ur |
688-43128-01-1D |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
01
|
01
697-43128-00-1D
Spacer, Clamp Bracket
Ur |
697-43128-00-1D |
— | ||
|
02
|
02
688-43631-10-00 Lever, TiltUr |
688-43631-10-00 |
from US $14.03 |
||
|
02
|
02
688-43631-00-00 Lever, TiltUr |
688-43631-00-00 |
from US $14.03 |
||
|
03
|
03
682-43318-01-00 CoverUr |
682-43318-01-00 |
from US $3.89 |
||
|
04
|
04
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
04
|
04
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
05
|
05
688-43124-02-00 Pin, Lower Shock Mount |
688-43124-02-00 |
from US $57.47 |
||
|
06
|
06
90386-18M21-00 Bush |
90386-18M21-00 |
from US $7.36 |
||
|
07
|
07
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
08
|
08
688-43170-04-1D
Shock Absorber Assy
Ur |
688-43170-04-1D |
— | ||
|
08
|
08
697-43170-03-1D
Shock Absorber Assy
Ur |
697-43170-03-1D |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
