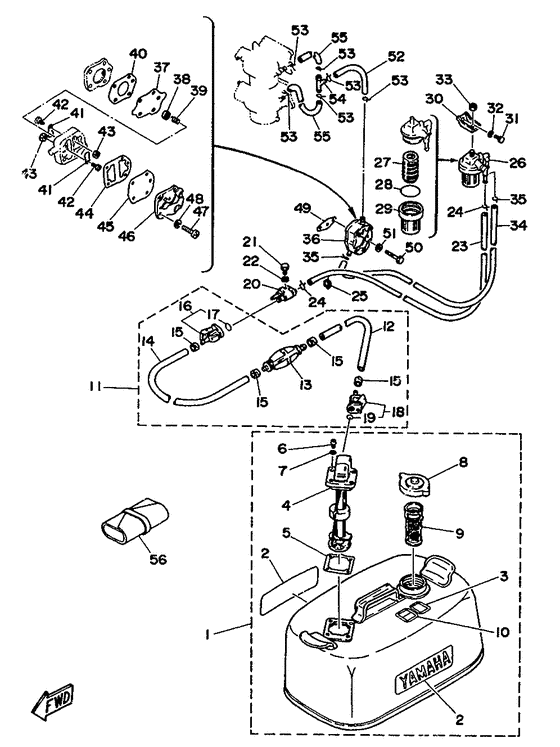

Fuel Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1990
- Model
- 55B
- Model code
- 697
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y1-W2420-62-24
Fuel Tank Assy
|
6Y1-W2420-62-24 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6Y1-24246-00-00
Graphic, Side
|
6Y1-24246-00-00 |
— | ||
|
03
|
03
6Y1-24257-00-00
Graphic
|
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
6Y1-24260-02-00
Fuel Meter Assembly
|
6Y1-24260-02-00 |
— | ||
| replacement | |||||
|
04
|
04
6Y1-24260-19-00 FUEL METER ASSY |
6Y1-24260-19-00 |
US $86.48 |
||
|
05
|
05
6Y1-24268-00-00 Gasket, Fuel Meter |
6Y1-24268-00-00 |
US $3.94 |
||
|
06
|
06
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
07
|
07
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
08
|
08
6Y1-24610-00-00 Cap Assembly |
6Y1-24610-00-00 |
US $29.81 |
||
|
09
|
09
6Y1-24167-00-00 Strainer |
6Y1-24167-00-00 |
US $21.39 |
||
|
10
|
10
6Y1-24254-60-00 Graphic |
6Y1-24254-60-00 |
US $5.95 |
||
|
11
|
11
6Y1-24306-05-00 Fuel Pipe Assy |
6Y1-24306-05-00 |
US $88.70 |
||
| replacement | |||||
|
11
|
11
6YL-24306-64-00 Fuel Pipe Comp. 1 |
6YL-24306-64-00 |
from US $268.03 |
||
|
12
|
12
90445-11M06-00 Hose |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
12
|
12
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
13
|
13
6Y1-24360-02-00 Primer Pump Assy |
6Y1-24360-02-00 |
US $32.59 |
||
| replacement | |||||
|
13
|
13
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
14
|
14
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.34 |
||
|
15
|
15
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
15
|
15
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
16
|
16
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
16
|
16
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $25.26 |
||
|
17
|
17
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
18
|
18
6Y1-24305-01-00 Fuel Pipe Joint Comp. 2 |
6Y1-24305-01-00 |
US $25.08 |
||
| replacement | |||||
|
18
|
18
6Y1-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-06-00 |
from US $25.08 |
||
|
19
|
19
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
20
|
20
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
20
|
20
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
20
|
20
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
21
|
21
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
90445-09M25-00 Hose (L420) |
90445-09M25-00 |
from US $6.52 |
||
| replacements | |||||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
23
|
23
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
24
|
24
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
25
|
25
90464-04011-00 Clamp |
90464-04011-00 |
from US $2.55 |
||
|
26
|
26
655-24560-01-00 Filter Assembly |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
26
|
26
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
27
|
27
6E5-24563-00-00
Element, Filter
|
6E5-24563-00-00 |
— | ||
|
28
|
28
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
29
|
29
655-24521-01-00
Cup, Filter
|
655-24521-01-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
648-24566-01-00
Bracket, Filter
|
648-24566-01-00 |
— | ||
|
31
|
31
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
31
|
31
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
31
|
31
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
31
|
31
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
31
|
31
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
31
|
31
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
32
|
32
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
33
|
33
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
33
|
33
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
34
|
34
90445-09095-00 Hose (L215) |
90445-09095-00 |
from US $3.12 |
||
| replacement | |||||
|
34
|
34
90445-09010-00
Hose (L260)
|
90445-09010-00 |
— | ||
|
35
|
35
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
36
|
36
6A0-24410-04-00 Fuel Pump Assy |
6A0-24410-04-00 |
US $131.67 |
||
| replacements | |||||
|
36
|
36
692-24410-00-00 Fuel Pump Assy |
692-24410-00-00 |
US $131.67 |
||
|
36
|
36
692-24410-01-00 FUEL PUMP ASSY |
692-24410-01-00 |
from US $67.03 |
||
|
37
|
37
648-24411-00-00 Diaphragm |
648-24411-00-00 |
from US $22.56 |
||
|
38
|
38
648-24424-00-00 Seat, Spring |
648-24424-00-00 |
from US $3.68 |
||
|
39
|
39
648-24423-00-00 Spring, Diaphragm |
648-24423-00-00 |
from US $3.68 |
||
|
40
|
40
648-24434-01-00 Gasket, Body |
648-24434-01-00 |
from US $4.72 |
||
|
41
|
41
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
41
|
41
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
42
|
42
6A0-14325-00-00 Screw, Pan Head |
6A0-14325-00-00 |
from US $4.11 |
||
|
43
|
43
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
44
|
44
648-24435-02-00 Gasket, Body 2 |
648-24435-02-00 |
from US $13.32 |
||
|
45
|
45
663-24411-00-00 Diaphragm |
663-24411-00-00 |
from US $9.44 |
||
|
46
|
46
648-24413-01-00 Cover, Pump |
648-24413-01-00 |
from US $17.65 |
||
|
47
|
47
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
48
|
48
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
49
|
49
650-24431-00-00 Gasket, Fuel Pump 1 |
650-24431-00-00 |
US $2.98 |
||
| replacement | |||||
|
49
|
49
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.70 |
||
|
50
|
50
973-95060-40-00
Bolt (682)
|
973-95060-40-00 |
— | ||
| replacement | |||||
|
50
|
50
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
51
|
51
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
52
|
52
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
52
|
52
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
52
|
52
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
53
|
53
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
54
|
54
688-24378-00-00 Pipe, Joint 3 |
688-24378-00-00 |
from US $7.36 |
||
|
55
|
55
90445-09061-00 Hose (L65) |
90445-09061-00 |
from US $4.11 |
||
| replacements | |||||
|
55
|
55
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
55
|
55
904-45090-87-00 Hose (L170) |
904-45090-87-00 |
US $3.67 |
||
|
56
|
56
656-W2810-01-00 Tool Kit |
656-W2810-01-00 |
US $40.62 |
||
| replacements | |||||
|
56
|
56
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
|
56
|
56
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
