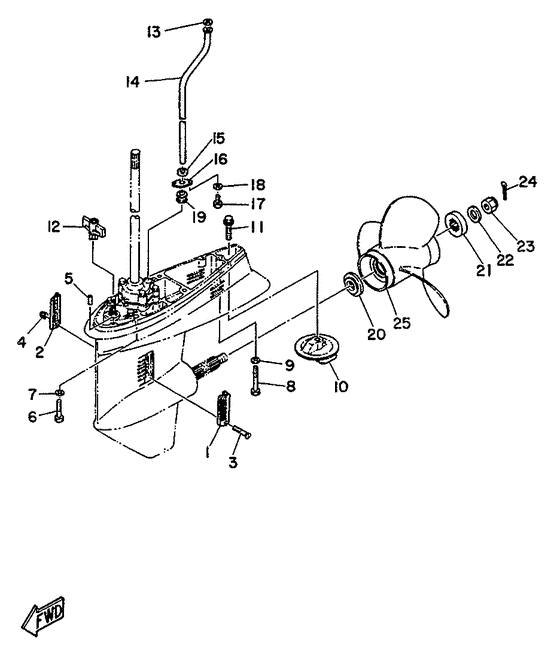

Lower casing. drive 2 Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1990
- Model
- 55B
- Model code
- 697
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-45214-02-00 Cover, Water Inlet 1 |
688-45214-02-00 |
from US $9.78 |
||
|
02
|
02
688-45215-02-00 Cover, Water Inlet 2 |
688-45215-02-00 |
from US $8.42 |
||
|
03
|
03
98680-05540-00 Screw, Oval Head |
98680-05540-00 |
US $3.26 |
||
| replacement | |||||
|
03
|
03
98780-05540-00 Screw, Oval Head |
98780-05540-00 |
from US $3.26 |
||
|
04
|
04
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
04
|
04
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
05
|
05
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
06
|
06
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
06
|
06
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
|
06
|
06
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
07
|
07
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
08
|
08
97395-08060-00 Bolt, Hexagon |
97395-08060-00 |
from US $9.32 |
||
| replacement | |||||
|
08
|
08
970-95080-60-00 Bolt, Hexagon |
970-95080-60-00 |
from US $5.56 |
||
|
09
|
09
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
10
|
10
679-45371-00-00 Tab-Trim |
679-45371-00-00 |
from US $20.11 |
||
|
11
|
11
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
12
|
12
697-43662-00-00 Guide, Reverse Rod |
697-43662-00-00 |
from US $7.93 |
||
|
13
|
13
90202-12060-00 Washer, Plate |
90202-12060-00 |
from US $2.77 |
||
|
14
|
14
663-44361-00-00 Tube, Water 1Tube, water (short) Ur |
663-44361-00-00 |
US $44.49 |
||
|
14
|
14
663-44361-10-00 Tube, Water 1Ur |
663-44361-10-00 |
from US $49.88 |
||
|
15
|
15
904-30120-72-00 Gasket |
904-30120-72-00 |
from US $3.38 |
||
|
16
|
16
663-44373-00-00 Set Plate, Water Tube |
663-44373-00-00 |
from US $8.64 |
||
|
17
|
17
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.47 |
||
|
20
|
20
663-45987-02-00 Spacer 1 |
663-45987-02-00 |
from US $49.85 |
||
|
21
|
21
670-45997-02-00 Spacer 2 |
670-45997-02-00 |
from US $30.08 |
||
|
22
|
22
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.08 |
||
|
23
|
23
90171-16011-00 Nut, Castle |
90171-16011-00 |
from US $8.08 |
||
|
24
|
24
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
25
|
25
663-45941-01-EL Propeller (3X10-3/4"x17"-G)Ur |
663-45941-01-EL |
US $248.69 |
||
| replacement | |||||
|
25
|
25
663-45941-01-00 Propeller (3X10-3/4"x17"-G)Ur |
663-45941-01-00 |
from US $248.69 |
||
|
25
|
25
663-45943-02-EL Propeller (3X11"x15"-G)Ur |
663-45943-02-EL |
US $248.69 |
||
| replacements | |||||
|
25
|
25
69W-45943-00-00 Propeller (3X11"x15"-G)Ur |
69W-45943-00-00 |
from US $243.82 |
||
|
25
|
25
6H5-45943-00-00 Propeller (3X10"x15"-G)Ur |
6H5-45943-00-00 |
from US $248.69 |
||
|
25
|
25
663-45945-02-EL Propeller (3X11-1/8"x13"-G)Ur |
663-45945-02-EL |
US $248.69 |
||
| replacements | |||||
|
25
|
25
69W-45945-00-00 Propeller (3X11-1/8"x13"-G)Ur |
69W-45945-00-00 |
from US $243.82 |
||
|
25
|
25
6H5-45945-00-00 Propeller (3X10-3/8"x13"-G)Ur |
6H5-45945-00-00 |
from US $248.69 |
||
|
25
|
25
663-45947-02-EL Propeller (3X11-5/8"x11"-G)Ur |
663-45947-02-EL |
US $248.69 |
||
| replacement | |||||
|
25
|
25
69W-45947-00-00 Propeller (3X11-5/8"x11"-G)Ur |
69W-45947-00-00 |
from US $248.69 |
||
|
25
|
25
663-45949-01-EL Propeller (3X10-3/4"x16"-G)Ur |
663-45949-01-EL |
US $248.69 |
||
| replacement | |||||
|
25
|
25
663-45949-01-00 Propeller (3X10-3/4"x16"-G)Ur |
663-45949-01-00 |
from US $248.69 |
||
|
25
|
25
663-45952-02-EL Propeller (3X11-3/8"x12"-G)Ur |
663-45952-02-EL |
US $248.69 |
||
| replacements | |||||
|
25
|
25
6H5-45952-00-00 Propeller (3X10-5/8"x12"-G)Ur |
6H5-45952-00-00 |
from US $248.69 |
||
|
25
|
25
69W-45952-00-00 Propeller (3X11-3/8 X12 -G)Ur |
69W-45952-00-00 |
from US $248.69 |
||
|
25
|
25
663-45954-01-EL Propeller (3X11-3/4"x10"-G)Ur |
663-45954-01-EL |
US $248.69 |
||
| replacement | |||||
|
25
|
25
663-45954-01-00 Propeller (3X11-3/4"x10"-G)Ur |
663-45954-01-00 |
from US $248.69 |
||
|
25
|
25
663-45956-01-EL Propeller (3X12-1/4"x9"-G)Ur |
663-45956-01-EL |
US $248.69 |
||
| replacement | |||||
|
25
|
25
663-45956-01-00 Propeller (3X12-1/4"x9"-G)Ur |
663-45956-01-00 |
from US $248.69 |
||
|
25
|
25
663-45958-01-EL Propeller (3X11-1/4"x14"-G)Ur |
663-45958-01-EL |
from US $215.78 |
||
| replacement | |||||
|
25
|
25
663-45958-01-00 Propeller (3X11-1/4"x14"-G)Ur |
663-45958-01-00 |
from US $243.82 |
||
|
25
|
25
663-45970-00-98
Propeller Assy
Ur |
663-45970-00-98 |
— | ||
|
25
|
25
663-45970-60-98 Propeller (3X11-3/4"x12"-G)Ur |
663-45970-60-98 |
US $702.24 |
||
| replacement | |||||
|
25
|
25
663-45970-60-00 Propeller (3X11-3/4"x12"-G)Ur |
663-45970-60-00 |
from US $702.24 |
||
|
25
|
25
663-45972-60-98 Propeller (3X12"x11"-G)Ur |
663-45972-60-98 |
US $702.24 |
||
| replacement | |||||
|
25
|
25
663-45972-60-00 Propeller (3X12"x11"-G)Ur |
663-45972-60-00 |
from US $702.24 |
||
|
25
|
25
663-45974-60-98 Propeller (3X11-1/2"x13"-G)Ur |
663-45974-60-98 |
US $702.24 |
||
| replacement | |||||
|
25
|
25
663-45974-60-00 Propeller (3X11-1/2"x13"-G)Ur |
663-45974-60-00 |
from US $702.24 |
||
|
25
|
25
663-45976-00-98 Propeller (3X10-1/4"x15"-G)Ur |
663-45976-00-98 |
US $702.24 |
||
| replacements | |||||
|
25
|
25
697-45970-00-00 Propeller (3X11-1/4"x14"-G)Ur |
697-45970-00-00 |
from US $702.24 |
||
|
25
|
25
663-45976-00-00 Propeller (3X10-1/4"x15"-G)Ur |
663-45976-00-00 |
from US $702.24 |
||
|
25
|
25
663-45978-00-98 Propeller (3X10-1/4"x16"-G)Ur |
663-45978-00-98 |
US $702.24 |
||
| replacement | |||||
|
25
|
25
663-45978-00-00 Propeller (3X10-1/4"x16"-G)Ur |
663-45978-00-00 |
from US $702.24 |
||
