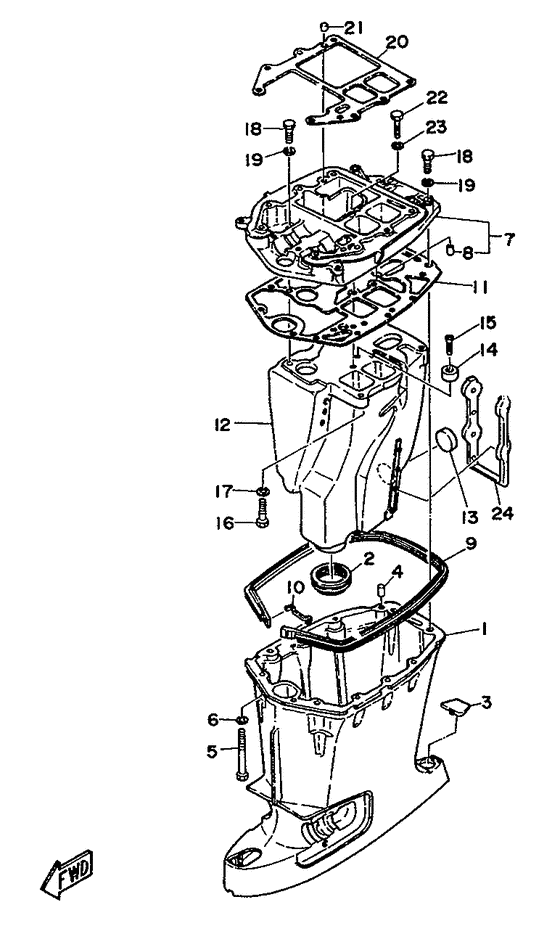

Upper casing Diagram Yamaha 55 M(E/T/D/H)S/L
- Year
- 1990
- Model
- 55B
- Model code
- 697
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 55
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
691-45111-00-1D
Casing, Upper
Ur |
691-45111-00-1D |
— | ||
|
01
|
01
691-45111-12-1D
Casing, Upper
Ur |
691-45111-12-1D |
— | ||
|
02
|
02
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
03
|
03
663-45155-10-00 Cap |
663-45155-10-00 |
from US $14.59 |
||
|
04
|
04
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
05
|
05
901-0108M-00-00 Bolt |
901-0108M-00-00 |
from US $3.08 |
||
| replacement | |||||
|
05
|
05
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
06
|
06
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
07
|
07
663-41137-03-5B Guide, Exhaust |
663-41137-03-5B |
US $441.94 |
||
| replacements | |||||
|
07
|
07
663-41137-04-CA ROD, CHOKE 1 |
663-41137-04-CA |
from US $272.97 |
||
|
07
|
07
663-41137-04-00 Guide, Exhaust |
663-41137-04-00 |
US $441.94 |
||
|
08
|
08
90386-02M04-00 Bush |
90386-02M04-00 |
from US $1.98 |
||
|
09
|
09
663-45127-00-00 Seal |
663-45127-00-00 |
from US $35.95 |
||
|
10
|
10
663-45129-00-00 Hook, Damper Seal |
663-45129-00-00 |
from US $3.83 |
||
|
11
|
11
697-45114-00-00 Gasket, Upper Casng |
697-45114-00-00 |
US $31.17 |
||
| replacement | |||||
|
11
|
11
697-45114-A0-00 Gasket, Upper Casing |
697-45114-A0-00 |
from US $13.82 |
||
|
12
|
12
663-14711-02-5B Muffler 1Ur |
663-14711-02-5B |
US $648.12 |
||
|
12
|
12
663-14711-12-5B Muffler 1Ur |
663-14711-12-5B |
US $648.12 |
||
| replacement | |||||
|
12
|
12
663-14711-12-CA SPRING, RETURNUr |
663-14711-12-CA |
from US $477.59 |
||
|
13
|
13
90334-30017-00 Plug, Straight |
90334-30017-00 |
US $5.24 |
||
|
14
|
14
663-45251-00-00 Anode |
663-45251-00-00 |
from US $8.82 |
||
|
15
|
15
92180-06025-00 Screw, Oval Head |
92180-06025-00 |
US $2.69 |
||
| replacement | |||||
|
15
|
15
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
16
|
16
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
16
|
16
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
16
|
16
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
18
|
18
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
696-45113-00-00 Gasket, Upper Casing |
696-45113-00-00 |
US $31.17 |
||
| replacement | |||||
|
20
|
20
696-45113-A0-00 Gasket, Upper Casing |
696-45113-A0-00 |
from US $25.92 |
||
|
21
|
21
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
22
|
22
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
22
|
22
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
663-14737-00-00 Damper, MufflerDamper, muffler (short) Ur |
663-14737-00-00 |
from US $36.14 |
||
|
24
|
24
663-14737-10-00 Damper, MufflerUr |
663-14737-10-00 |
from US $28.62 |
||
