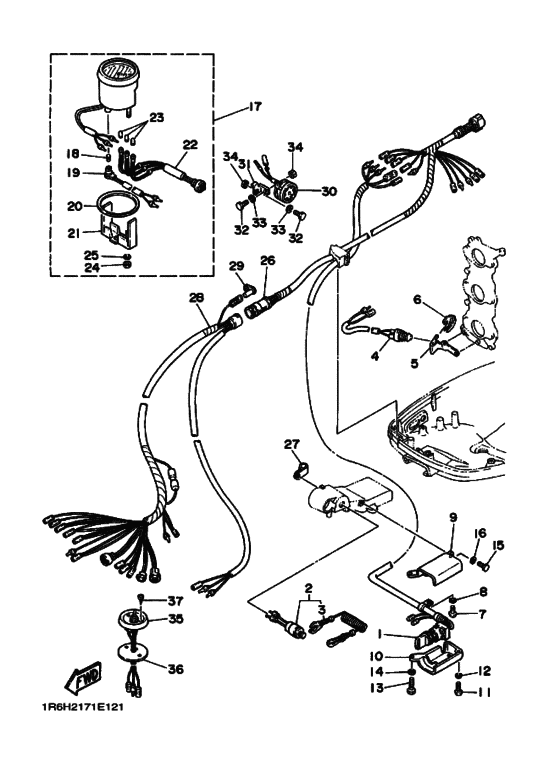

Electrical 2 Diagram Yamaha 60 ET(D)OL
- Year
- 1995
- Model
- 60F
- Model code
- 6H2
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-82510-00-00
Main Switch Assy
|
6H5-82510-00-00 |
— | ||
| replacements | |||||
|
1
|
1
6H5-82510-02-00
Main Switch Assy
|
6H5-82510-02-00 |
— | ||
|
1
|
1
67G-82510-31-00 Main Switch Assy |
67G-82510-31-00 |
US $104.70 |
||
|
2
|
2
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
2
|
2
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
3
|
3
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
4
|
4
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
4
|
4
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
5
|
5
6H3-82554-00-00 Stay, Neutral Switch |
6H3-82554-00-00 |
from US $10.20 |
||
|
6
|
6
663-82555-01-00 Damper, Main Switch 1 |
663-82555-01-00 |
from US $12.89 |
||
|
7
|
7
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
697-8252E-00-EK Main Switch Comp |
697-8252E-00-EK |
US $49.06 |
||
| replacement | |||||
|
9
|
9
697-8252E-02-EK Main Switch Cover |
697-8252E-02-EK |
US $49.06 |
||
|
10
|
10
697-8252F-00-EK
Cover, Main Switch 2
|
697-8252F-00-EK |
— | ||
| replacements | |||||
|
10
|
10
697-8252F-02-EK
Main Switch Cover
|
697-8252F-02-EK |
— | ||
|
10
|
10
697-8252F-01-EK
697-8252f-02-ek
|
697-8252F-01-EK |
— | ||
|
11
|
11
92580-06025-00 Screw |
92580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
13
|
13
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
6Y5-83540-04-00 Tachometer Assembly |
6Y5-83540-04-00 |
US $498.96 |
||
|
18
|
18
6Y5-83517-00-00 Bulb (T10, 12V-17W)12V-1.7W |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
18
|
18
3GM-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3GM-83517-00-00 |
from US $3.26 |
||
|
19
|
19
6Y5-83536-40-00 Socket, Meter |
6Y5-83536-40-00 |
from US $10.34 |
||
|
20
|
20
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
21
|
21
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
22
|
22
6Y5-83509-02-00
Socket Cord Assembly
|
6Y5-83509-02-00 |
— | ||
|
23
|
23
6Y5-83518-00-00 Bulb (12V-1.7W T6.5)12V-1.7W |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
23
|
23
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3FV-83517-00-00 |
from US $4.99 |
||
|
24
|
24
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
6H2-82586-00-00
Extension, Wire Lead
|
6H2-82586-00-00 |
— | ||
|
27
|
27
904-6508M-43-00
Clamp
|
904-6508M-43-00 |
— | ||
|
28
|
28
6H5-83553-10-00
Wire, Lead
|
6H5-83553-10-00 |
— | ||
|
29
|
29
6A0-82119-00-00 Cover, Lead Wire |
6A0-82119-00-00 |
from US $5.53 |
||
|
30
|
30
688-83383-11-00 Buzzer |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
30
|
30
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
31
|
31
6H5-83386-00-00 Buzzer Stay |
6H5-83386-00-00 |
US $15.08 |
||
|
32
|
32
97313-05010-00 Bolt, Hexagon |
97313-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
32
|
32
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
33
|
33
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
34
|
34
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
35
|
35
688-82563-10-00 Trim & Tilt Switch Assy |
688-82563-10-00 |
from US $70.36 |
||
|
36
|
36
688-82388-00-00 Plate |
688-82388-00-00 |
from US $8.93 |
||
|
37
|
37
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
