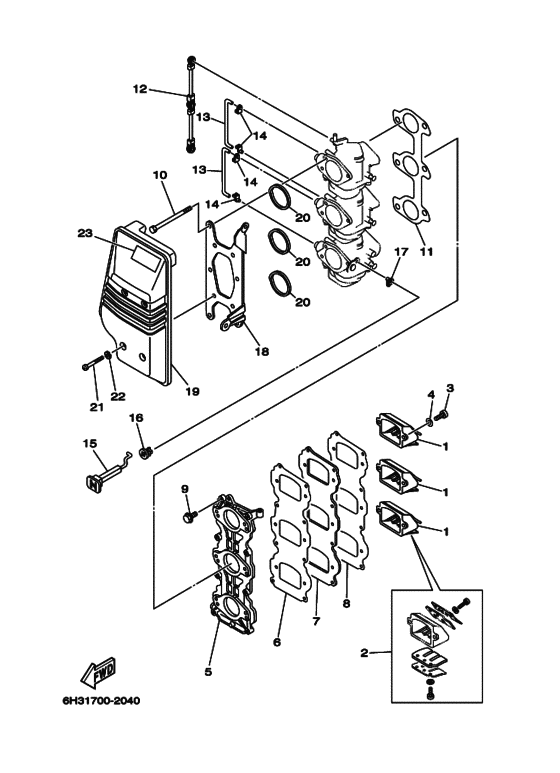

Intake Diagram Yamaha 60 ET(D)OL
- Year
- 2005
- Model
- 60F
- Model code
- 6H2
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H2-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
6H2-13610-00-00 |
from US $101.75 |
||
|
2
|
2
688-W0004-00-00 Reed Set．リードセツト; |
688-W0004-00-00 |
from US $55.26 |
||
|
3
|
3
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H3-13641-03-94 Manifold, Intake 1マニホールド １; |
6H3-13641-03-94 |
US $135.12 |
||
|
6
|
6
6H3-13621-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13621-A1-00 |
from US $6.40 |
||
|
7
|
7
6H3-13624-00-94 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-94 |
US $18.14 |
||
| replacement | |||||
|
7
|
7
6H3-13624-00-00 Plate,reed Valveプレート，リードバルブ; |
6H3-13624-00-00 |
from US $14.58 |
||
|
8
|
8
6H3-13622-A1-00 Gasket, Valve Seatガスケツト，バルブシート; |
6H3-13622-A1-00 |
from US $11.05 |
||
|
9
|
9
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
10
|
10
97095-06095-00 Boltボルト; |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
97D95-06095-00 ボルト; |
97D95-06095-00 |
from US $1.81 |
||
|
11
|
11
6H3-14198-A1-00 Gasket |
6H3-14198-A1-00 |
from US $4.53 |
||
|
12
|
12
6H3-41217-00-00 Rod, Accel. Leverロツド，アクセルレバー; |
6H3-41217-00-00 |
from US $7.42 |
||
|
13
|
13
6H3-41257-00-00 Rod, Choke 2ロツド，チヨーク ２; |
6H3-41257-00-00 |
from US $3.12 |
||
|
14
|
14
661-41262-02-00 Joint, Choke Leverジヨイント，チヨークレバー; |
661-41262-02-00 |
from US $7.93 |
||
|
15
|
15
6H3-41271-00-00 Knob, Chokeノブ，チヨーク; |
6H3-41271-00-00 |
US $16.01 |
||
| replacement | |||||
|
15
|
15
6H3-41271-01-00 Knob, Chokeノブ，チヨーク; |
6H3-41271-01-00 |
from US $11.46 |
||
|
16
|
16
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
17
|
17
661-41262-02-00 Joint, Choke Leverジヨイント，チヨークレバー; |
661-41262-02-00 |
from US $7.93 |
||
|
18
|
18
6H3-14413-10-00 Stayステー; |
6H3-14413-10-00 |
US $58.03 |
||
| replacements | |||||
|
18
|
18
6B0-14413-01-00
Stay
ステー; |
6B0-14413-01-00 |
— | ||
|
18
|
18
6H3-14413-11-00 Stayステー; |
6H3-14413-11-00 |
US $58.03 |
||
|
18
|
18
6H3-14413-12-00 Stayステー; |
6H3-14413-12-00 |
US $92.65 |
||
|
19
|
19
6H3-14440-02-00 Silencer Assy, Intakeサイレンサアセンブリ，インテーク; |
6H3-14440-02-00 |
from US $59.96 |
||
|
20
|
20
6H3-14457-01-00 Sealシール; |
6H3-14457-01-00 |
US $3.74 |
||
| replacement | |||||
|
20
|
20
6H3-14457-02-00 Sealシール; |
6H3-14457-02-00 |
from US $3.74 |
||
|
21
|
21
97885-06045-00 Screw, Pan Headスクリユ，パンヘツド; |
97885-06045-00 |
from US $3.26 |
||
|
22
|
22
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
23
|
23
6A1-83625-01-00 Mark 5 |
6A1-83625-01-00 |
US $4.26 |
||
