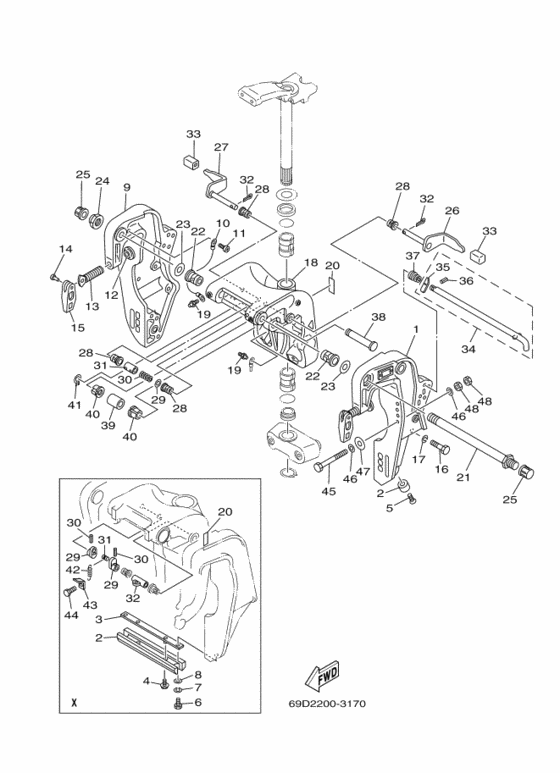

Bracket 1 Diagram Yamaha 60 M(H/W/D)L
- Year
- 2003
- Model
- E60H
- Model code
- 69D
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 60
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
697-43111-05-4D Bracket, ClampS |
697-43111-05-4D |
US $323.29 |
||
|
1
|
1
688-43111-13-4D Bracket, Clamp 1X |
688-43111-13-4D |
US $328.82 |
||
| replacement | |||||
|
1
|
1
688-43111-13-8D BRACKET, CLAMP 1X |
688-43111-13-8D |
from US $328.82 |
||
|
2
|
2
663-45251-00-00 AnodeS |
663-45251-00-00 |
from US $8.82 |
||
|
2
|
2
6H1-45251-03-00 AnodeX |
6H1-45251-03-00 |
from US $21.77 |
||
|
3
|
3
6H1-44526-00-00 PlateX |
6H1-44526-00-00 |
from US $11.93 |
||
| replacement | |||||
|
3
|
3
6EK-44536-00-00 Plate 2X |
6EK-44536-00-00 |
from US $12.18 |
||
|
4
|
4
90119-06M29-00 Bolt, With Washer(6X |
90119-06M29-00 |
from US $2.77 |
||
| replacement | |||||
|
4
|
4
90119-06274-00 X |
90119-06274-00 |
from US $2.74 |
||
|
5
|
5
90152-06M01-00 Screw, CountersunkS |
90152-06M01-00 |
from US $2.69 |
||
|
6
|
6
97095-06016-00 BoltX |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep RecessX |
97D95-06016-00 |
from US $1.39 |
||
|
7
|
7
929-95061-00-00 Washer, SpringX |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
929-95066-00-00
Washer, Plate
X |
929-95066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646)X |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
697-43112-03-4D Bracket, Clamp 2S |
697-43112-03-4D |
US $326.06 |
||
|
9
|
9
688-43112-12-4D Bracket, Clamp 2X |
688-43112-12-4D |
US $328.82 |
||
| replacement | |||||
|
9
|
9
688-43112-12-8D BRACKET, CLAMP 2X |
688-43112-12-8D |
from US $328.82 |
||
|
10
|
10
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
11
|
11
97880-06012-00 Screw, Pan Head |
97880-06012-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
13
|
13
663-43116-01-00 Screw, Transom Clamp |
663-43116-01-00 |
from US $26.49 |
||
|
14
|
14
90243-04007-00 Pin |
90243-04007-00 |
from US $2.08 |
||
|
15
|
15
663-43118-01-4D
Handle, Transom Clamp
|
663-43118-01-4D |
— | ||
| replacement | |||||
|
15
|
15
663-43118-01-8D Handle, Transom Clamp |
663-43118-01-8D |
from US $14.29 |
||
|
16
|
16
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
| replacement | |||||
|
16
|
16
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
17
|
17
92995-10100-00 Washer |
92995-10100-00 |
from US $1.66 |
||
| replacement | |||||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
18
|
18
697-43311-03-4D Bracket, SwivelS |
697-43311-03-4D |
US $632.28 |
||
|
18
|
18
6H1-43311-01-4D Bracket, Swivel 1X |
6H1-43311-01-4D |
US $287.37 |
||
| replacement | |||||
|
18
|
18
6H1-43311-02-8D Bracket, Swivel 1X |
6H1-43311-02-8D |
from US $287.37 |
||
|
19
|
19
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
20
|
20
63D-43691-00-00 Etiquette, Relevage |
63D-43691-00-00 |
from US $4.11 |
||
|
21
|
21
688-43131-03-00 Bolt, Clamp Bracket |
688-43131-03-00 |
from US $106.38 |
||
|
22
|
22
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
23
|
23
90201-22M67-00 Washer, Plate |
90201-22M67-00 |
from US $1.70 |
||
|
24
|
24
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
24
|
24
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
25
|
25
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
26
|
26
688-43181-04-00 Lever, Tilt StopS |
688-43181-04-00 |
from US $35.02 |
||
|
26
|
26
688-43181-10-00 Lever, Tilt Stop 1X |
688-43181-10-00 |
from US $59.41 |
||
|
27
|
27
688-43185-04-00 Lever, Tilt StopS |
688-43185-04-00 |
from US $50.29 |
||
|
27
|
27
688-43185-10-00 Lever, Tilt Stop 2X |
688-43185-10-00 |
from US $50.29 |
||
|
28
|
28
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
29
|
29
929-90106-00-00 Washer, PlateS |
929-90106-00-00 |
from US $1.18 |
||
|
29
|
29
6G5-43148-00-00 Collar, DistanceX |
6G5-43148-00-00 |
from US $2.91 |
||
|
30
|
30
90501-10M21-00 Spring, CompressionS |
90501-10M21-00 |
US $2.41 |
||
|
30
|
30
91690-30020-00 Pin, SpringX |
91690-30020-00 |
from US $1.70 |
||
|
31
|
31
90387-10M38-00 CollarS |
90387-10M38-00 |
from US $9.15 |
||
|
31
|
31
90249-06M19-00 PinX |
90249-06M19-00 |
from US $3.26 |
||
|
32
|
32
914-90300-25-00 Pin. CotterS |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. CotterS |
914-90300-30-00 |
from US $1.25 |
||
|
32
|
32
90387-10M02-00 CollarX |
90387-10M02-00 |
from US $4.11 |
||
|
33
|
33
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
34
|
34
697-43160-00-00 Tilt Rod AssemblyS |
697-43160-00-00 |
from US $37.99 |
||
|
34
|
34
688-43160-01-00 Tilt Rod AssyX |
688-43160-01-00 |
from US $26.94 |
||
|
35
|
35
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
36
|
36
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
37
|
37
90502-20M03-00 Spring, ConicalS |
90502-20M03-00 |
from US $6.80 |
||
|
37
|
37
90502-16M02-00 Spring, ConicalX |
90502-16M02-00 |
from US $3.68 |
||
|
38
|
38
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
39
|
39
90386-18M21-00 Bush |
90386-18M21-00 |
from US $7.36 |
||
|
40
|
40
90386-18M35-00 Bush |
90386-18M35-00 |
from US $11.12 |
||
|
41
|
41
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
41
|
41
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
42
|
42
90506-14M24-00 Spring, TensionX |
90506-14M24-00 |
from US $4.03 |
||
|
43
|
43
6G5-43144-00-00 Hook, SpringX |
6G5-43144-00-00 |
from US $3.26 |
||
|
44
|
44
970-95060-10-00
Bolt
X |
970-95060-10-00 |
— | ||
| replacement | |||||
|
44
|
44
97085-06010-00 BoltX |
97085-06010-00 |
from US $1.28 |
||
|
45
|
45
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
46
|
46
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
46
|
46
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
47
|
47
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
48
|
48
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
