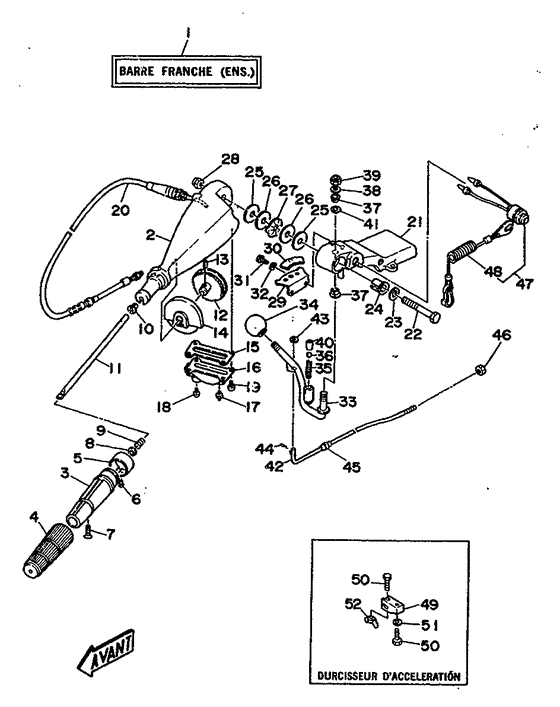

Steering Diagram Yamaha 75 E(M/H/D/T)L
- Year
- 1992
- Model
- 75A
- Model code
- 692
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
692-W0084-11-1D
Handle steering assy
|
692-W0084-11-1D |
— | ||
|
02
|
02
692-42111-11-1D
Handle, steering
|
692-42111-11-1D |
— | ||
|
03
|
03
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
04
|
04
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
04
|
04
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
05
|
05
692-42137-02-00 Indicator, Throttle |
692-42137-02-00 |
US $10.06 |
||
| replacements | |||||
|
05
|
05
6H2-42137-10-00 Indicator, Throttle |
6H2-42137-10-00 |
US $4.82 |
||
|
05
|
05
6H2-42137-00-00 Indicator, Throttle |
6H2-42137-00-00 |
from US $10.06 |
||
|
06
|
06
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
07
|
07
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
07
|
07
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
08
|
08
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
09
|
09
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
10
|
10
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
11
|
11
692-42115-00-00 Shaft, Steering Handle |
692-42115-00-00 |
from US $18.18 |
||
|
12
|
12
663-42138-00-00 Lever, Throttle |
663-42138-00-00 |
from US $33.68 |
||
|
13
|
13
91690-30216-00 Pin, Spring |
91690-30216-00 |
from US $5.10 |
||
|
14
|
14
692-42135-00-00 Housing, Throttle Lever |
692-42135-00-00 |
from US $18.86 |
||
|
15
|
15
663-42133-01-00 Gasket |
663-42133-01-00 |
from US $4.96 |
||
|
16
|
16
692-42135-00-00 Housing, Throttle Lever |
692-42135-00-00 |
from US $18.86 |
||
|
17
|
17
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
17
|
17
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
18
|
18
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
18
|
18
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
19
|
19
97895-05012-00 Screw, Pan Head |
97895-05012-00 |
US $1.70 |
||
| replacements | |||||
|
19
|
19
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
19
|
19
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
|
20
|
20
692-26301-03-00 Throttle Cable Assy |
692-26301-03-00 |
from US $75.08 |
||
|
21
|
21
692-42121-01-1D
Bracket
|
692-42121-01-1D |
— | ||
|
22
|
22
90101-12261-00 Bolt |
90101-12261-00 |
from US $13.46 |
||
| replacements | |||||
|
22
|
22
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
|
22
|
22
901-01120-75-00 Bolt |
901-01120-75-00 |
from US $13.46 |
||
|
23
|
23
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
24
|
24
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
25
|
25
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
26
|
26
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $5.06 |
||
|
27
|
27
90206-12054-00 Washer, Wave |
90206-12054-00 |
from US $3.26 |
||
|
28
|
28
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
29
|
29
697-44113-00-00 Cam Plate, Handle |
697-44113-00-00 |
from US $26.49 |
||
|
30
|
30
6K5-44191-00-00 Indicator, Shift |
6K5-44191-00-00 |
from US $7.65 |
||
|
31
|
31
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
31
|
31
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
32
|
32
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
692-44159-01-00 Handle, Gear Shift |
692-44159-01-00 |
from US $56.37 |
||
|
34
|
34
663-44173-00-00 Lever, Shift Control |
663-44173-00-00 |
from US $12.75 |
||
|
35
|
35
90501-16M17-00 Spring, Compression |
90501-16M17-00 |
from US $2.83 |
||
|
36
|
36
93515-32M01-00 Ball |
93515-32M01-00 |
from US $6.09 |
||
|
37
|
37
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
38
|
38
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
38
|
38
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
|
39
|
39
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
39
|
39
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
40
|
40
90387-12M30-00 Collar |
90387-12M30-00 |
from US $9.07 |
||
|
41
|
41
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
42
|
42
692-42164-00-00 Rod, Manual Shift |
692-42164-00-00 |
from US $35.99 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
44
|
44
91490-25015-00 Pin. Cotter |
91490-25015-00 |
from US $1.42 |
||
| replacement | |||||
|
44
|
44
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
45
|
45
90386-06088-00 Bush |
90386-06088-00 |
from US $2.55 |
||
|
46
|
46
700-48339-00-00 Nut, Cable End |
700-48339-00-00 |
from US $1.70 |
||
|
47
|
47
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
47
|
47
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
48
|
48
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
49
|
49
663-42126-01-00 Throttle Friction |
663-42126-01-00 |
from US $11.33 |
||
|
50
|
50
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
50
|
50
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
51
|
51
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
52
|
52
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
52
|
52
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
52
|
52
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
