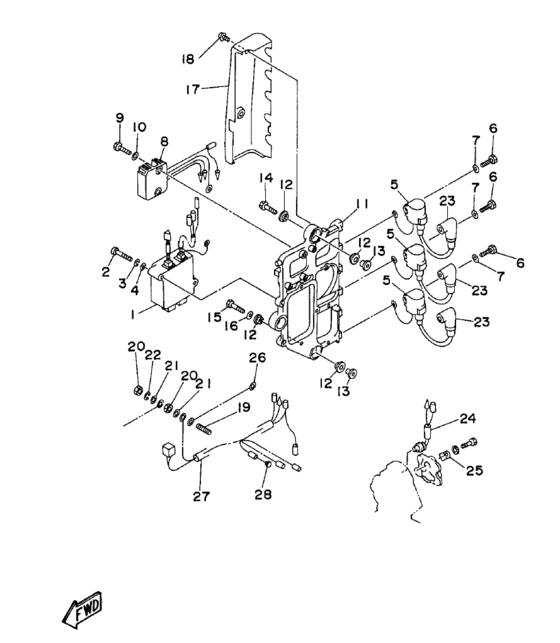

Electrical Diagram Yamaha 75 MLH
- Year
- 1997
- Model
- E75
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 75
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-85540-00-00 C.d.i. Unit Assembly |
688-85540-00-00 |
from US $813.12 |
||
|
2
|
2
98580-06540-00 Screw, Pan Head |
98580-06540-00 |
US $1.21 |
||
| replacement | |||||
|
2
|
2
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
697-85570-00-00 Ignition Coil Assy |
697-85570-00-00 |
from US $95.60 |
||
|
6
|
6
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
6H0-81960-00-00 Rectifier & Regulator Assembly |
6H0-81960-00-00 |
from US $122.69 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
6H1-85542-00-94 Bracket |
6H1-85542-00-94 |
US $58.86 |
||
| replacement | |||||
|
11
|
11
6H1-85542-00-00 Bracket |
6H1-85542-00-00 |
from US $58.86 |
||
|
12
|
12
90480-09M25-00 Grommet |
90480-09M25-00 |
from US $4.11 |
||
|
13
|
13
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
14
|
14
90119-06M75-00 Bolt,with Washer |
90119-06M75-00 |
US $1.21 |
||
| replacements | |||||
|
14
|
14
90119-06M56-00 Bolt, With Washer |
90119-06M56-00 |
US $1.21 |
||
|
14
|
14
90119-06293-00 Bolt, With Washer |
90119-06293-00 |
from US $1.21 |
||
|
15
|
15
901-1906M-39-00
Bolt
|
901-1906M-39-00 |
— | ||
|
16
|
16
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
17
|
17
6H1-81916-00-00 Cover, Terminal |
6H1-81916-00-00 |
from US $13.82 |
||
|
18
|
18
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
19
|
19
90116-06M22-00 Bolt, Stud |
90116-06M22-00 |
from US $4.72 |
||
|
20
|
20
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
20
|
20
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
663-82370-01-00 Plug Cap Assy |
663-82370-01-00 |
from US $6.62 |
||
|
24
|
24
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
25
|
25
688-82588-01-00 Plate |
688-82588-01-00 |
from US $3.97 |
||
|
26
|
26
61A-82519-00-00 Wire, Earth Lead |
61A-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
26
|
26
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $13.32 |
||
|
27
|
27
692-82590-00-00 Wire Harness Assembly |
692-82590-00-00 |
from US $105.50 |
||
|
28
|
28
703-82119-00-00 Cover, Lead Wire |
703-82119-00-00 |
from US $2.13 |
||
