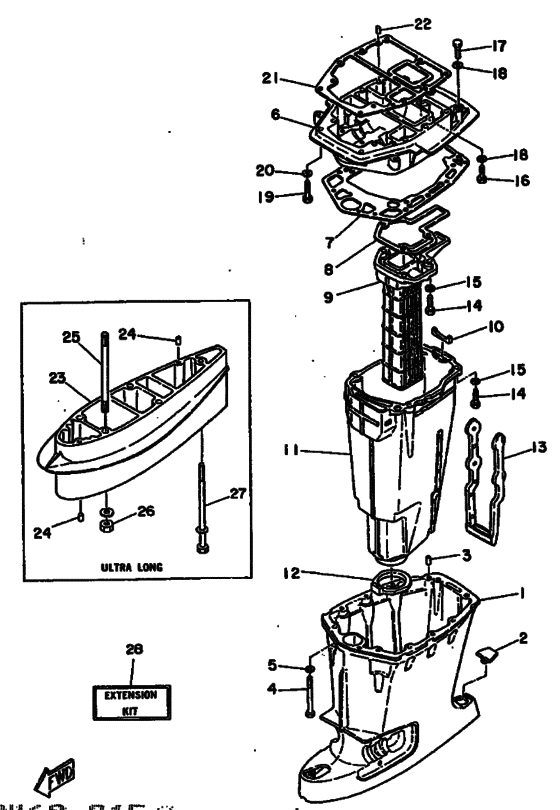

Upper casing Diagram Yamaha 80 E(M)TOL/UL
- Year
- 1985
- Model
- 80A
- Model code
- 6H0
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 80
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-45111-03-EJ
Casing, Upper
|
688-45111-03-EJ |
— | ||
| replacement | |||||
|
1
|
1
688-45111-04-EJ
Casing Upper
|
688-45111-04-EJ |
— | ||
|
2
|
2
663-45155-10-00 Cap |
663-45155-10-00 |
from US $14.59 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
901-0108M-50-00 Bolt |
901-0108M-50-00 |
from US $4.52 |
||
| replacement | |||||
|
4
|
4
90119-08M80-00 Bolt, With Washer |
90119-08M80-00 |
from US $5.07 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
688-41137-02-94 Guide, Exhaust |
688-41137-02-94 |
US $405.11 |
||
| replacements | |||||
|
6
|
6
688-41137-03-CA Guide, Exhaust |
688-41137-03-CA |
US $405.11 |
||
|
6
|
6
688-41137-09-CA GUIDE, EXHAUST |
688-41137-09-CA |
from US $405.11 |
||
|
7
|
7
688-45114-01-00 New Genuine Part |
688-45114-01-00 |
US $33.15 |
||
| replacement | |||||
|
7
|
7
688-45114-A1-00 Gasket, Upper Casing |
688-45114-A1-00 |
from US $15.08 |
||
|
8
|
8
688-41134-00-00 Gasket, Exhaust Manifold |
688-41134-00-00 |
US $15.02 |
||
| replacement | |||||
|
8
|
8
688-41134-A0-00 Gasket, Exhaust Manifold |
688-41134-A0-00 |
from US $8.76 |
||
|
9
|
9
688-41131-00-9M Manifold, Ext. 1UR |
688-41131-00-9M |
US $128.63 |
||
| replacement | |||||
|
9
|
9
688-41131-00-CA Manifold, Ext. 1UR |
688-41131-00-CA |
from US $49.16 |
||
|
9
|
9
692-41131-00-9M Manifold, Ext. 1UR (NOT SHOWN) |
692-41131-00-9M |
US $171.32 |
||
| replacement | |||||
|
9
|
9
692-41131-00-CA Manifold, Ext. 1UR (NOT SHOWN) |
692-41131-00-CA |
US $171.32 |
||
|
10
|
10
688-41133-00-00 Gasket, Exhaust Manifold 1 |
688-41133-00-00 |
from US $4.96 |
||
|
11
|
11
688-14711-01-9M Muffler 1 |
688-14711-01-9M |
US $219.67 |
||
| replacement | |||||
|
11
|
11
688-14711-01-CA Muffler 1 |
688-14711-01-CA |
from US $219.67 |
||
|
12
|
12
688-45123-00-00 Gasket, Muffler |
688-45123-00-00 |
from US $11.80 |
||
|
13
|
13
663-14737-10-00 Damper, Muffler |
663-14737-10-00 |
from US $28.62 |
||
|
14
|
14
97375-08030-00 Bolt, Hexagon |
97375-08030-00 |
US $2.69 |
||
| replacement | |||||
|
14
|
14
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
97375-08025-00 Bolt |
97375-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
16
|
16
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
16
|
16
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
17
|
17
97375-08130-00
Bolt
|
97375-08130-00 |
— | ||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
97375-08035-00 Bolt |
97375-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
19
|
19
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
19
|
19
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
21
|
21
688-45113-00-00 Gasket, Upper Casing |
688-45113-00-00 |
US $28.76 |
||
| replacement | |||||
|
21
|
21
688-45113-A0-00 Gasket, Upper Casing |
688-45113-A0-00 |
from US $9.44 |
||
|
22
|
22
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
23
|
23
688-45211-00-EJ
Extension
|
688-45211-00-EJ |
— | ||
| replacement | |||||
|
23
|
23
688-45211-01-EJ
Extension
|
688-45211-01-EJ |
— | ||
|
24
|
24
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
25
|
25
90116-10M05-00 Bolt, Stud |
90116-10M05-00 |
from US $13.48 |
||
|
26
|
26
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
27
|
27
97375-08190-00 Bolt |
97375-08190-00 |
from US $3.40 |
||
| replacement | |||||
|
27
|
27
90119-08M00-00 Bolt, With Washer |
90119-08M00-00 |
from US $3.40 |
||
|
28
|
28
688-W0072-00-EJ
Extension Kit
SEE FIG.28 FOR DETAIL SERV |
688-W0072-00-EJ |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
SEE FIG.28 FOR DETAIL SERV |
999-99999-99-00 |
— | ||
