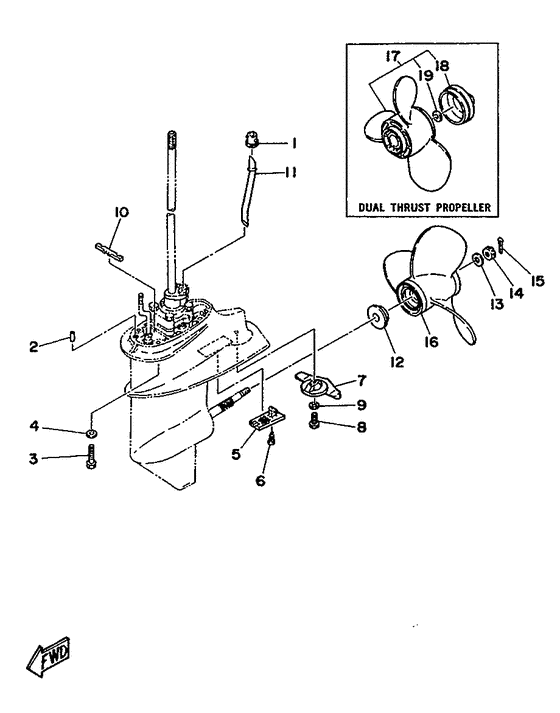

Lower casing. drive 2 Diagram Yamaha 9.9 MHS/L
- Year
- 1990
- Model
- 9.9D
- Model code
- 6E7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
02
|
02
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
03
|
03
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
03
|
03
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
03
|
03
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
04
|
04
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
05
|
05
6E7-45214-00-00 Cover, Water Inlet 1 |
6E7-45214-00-00 |
from US $6.38 |
||
|
06
|
06
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
07
|
07
6E8-45251-01-00 Anode |
6E8-45251-01-00 |
US $16.43 |
||
| replacement | |||||
|
07
|
07
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
08
|
08
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
08
|
08
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
09
|
09
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
11
|
11
682-44361-00-00 Tube, Water 1Ur |
682-44361-00-00 |
US $26.49 |
||
| replacement | |||||
|
11
|
11
682-44361-01-00 Tube, WaterUr |
682-44361-01-00 |
from US $26.49 |
||
|
11
|
11
682-44361-10-00 Tube, Water 1Ur |
682-44361-10-00 |
from US $63.88 |
||
|
11
|
11
682-44361-30-00
Tube, Water 1
Ur |
682-44361-30-00 |
— | ||
|
12
|
12
6E7-45987-01-00 Spacer 1 |
6E7-45987-01-00 |
from US $24.92 |
||
|
13
|
13
902-0110M-01-00 Washer, Plate |
902-0110M-01-00 |
from US $3.04 |
||
|
14
|
14
90171-10M01-00 Nut, Castle |
90171-10M01-00 |
from US $5.06 |
||
|
15
|
15
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.25 |
||
| replacement | |||||
|
15
|
15
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
|
16
|
16
683-45945-00-EL Propeller (3X9-1/4"x9"-J)Ur |
683-45945-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45945-00-00 Propeller (3X9-1/4"x9"-J)Ur |
683-45945-00-00 |
US $183.75 |
||
|
16
|
16
63V-45945-10-00 Propeller (3X9-1/4"x9"-J1)Ur |
63V-45945-10-00 |
from US $183.75 |
||
|
16
|
16
683-45947-00-EL Propeller (3X9-1/4"x8"-J)Ur |
683-45947-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45947-00-00 Propeller (3X9-1/4"x8"-J)Ur |
683-45947-00-00 |
US $183.75 |
||
|
16
|
16
63V-45947-00-00 Propeller (3X9-1/4"x8"-J)Ur |
63V-45947-00-00 |
from US $183.75 |
||
|
16
|
16
683-45949-00-EL Propeller (3X9-1/2"x6-1/2"-J)Ur |
683-45949-00-EL |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45949-00-00 Propeller (3X9-1/2"x6-1/2"-J)Ur |
683-45949-00-00 |
from US $183.75 |
||
|
16
|
16
683-45952-00-EL Propeller (3X9-1/4"x9-3/4"-J)Ur |
683-45952-00-EL |
US $183.75 |
||
| replacements | |||||
|
16
|
16
683-45952-00-00 Propeller (3X9-1/4"x9-3/4"-J)Propeller assy (3x9-1/2"9x-1/2"-j) Ur |
683-45952-00-00 |
US $183.75 |
||
|
16
|
16
63V-45952-10-00 Propeller (3X9-1/4"x10"-J1)Ur |
63V-45952-10-00 |
from US $183.75 |
||
|
16
|
16
683-45941-00-EL Propeller (3X9-1/4"x12"-J)Ur |
683-45941-00-EL |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45941-00-00 Propeller (3X9-1/4"x12"-J)Ur |
683-45941-00-00 |
from US $180.16 |
||
|
16
|
16
683-45943-00-EL Propeller (3X9-1/4"x10-1/2"-J)Ur |
683-45943-00-EL |
US $183.75 |
||
| replacement | |||||
|
16
|
16
683-45943-00-00 Propeller (3X9-1/4"x10-1/2"-J)Ur |
683-45943-00-00 |
from US $183.75 |
||
|
17
|
17
683-W4591-00-EL
Dual Th. 9 3/4X8
Ur |
683-W4591-00-EL |
— | ||
|
17
|
17
683-W4592-00-EL
Dual Th.93/4X61/2
Ur |
683-W4592-00-EL |
— | ||
| replacement | |||||
|
17
|
17
683-W4592-02-00 Propeller (3X9-3/4"x6-1/2"-J)Ur |
683-W4592-02-00 |
from US $194.81 |
||
|
18
|
18
6E7-45616-00-00
Nut, Propeller
|
6E7-45616-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99022-38-00
Nut, Propeller
|
999-99022-38-00 |
— | ||
|
19
|
19
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
